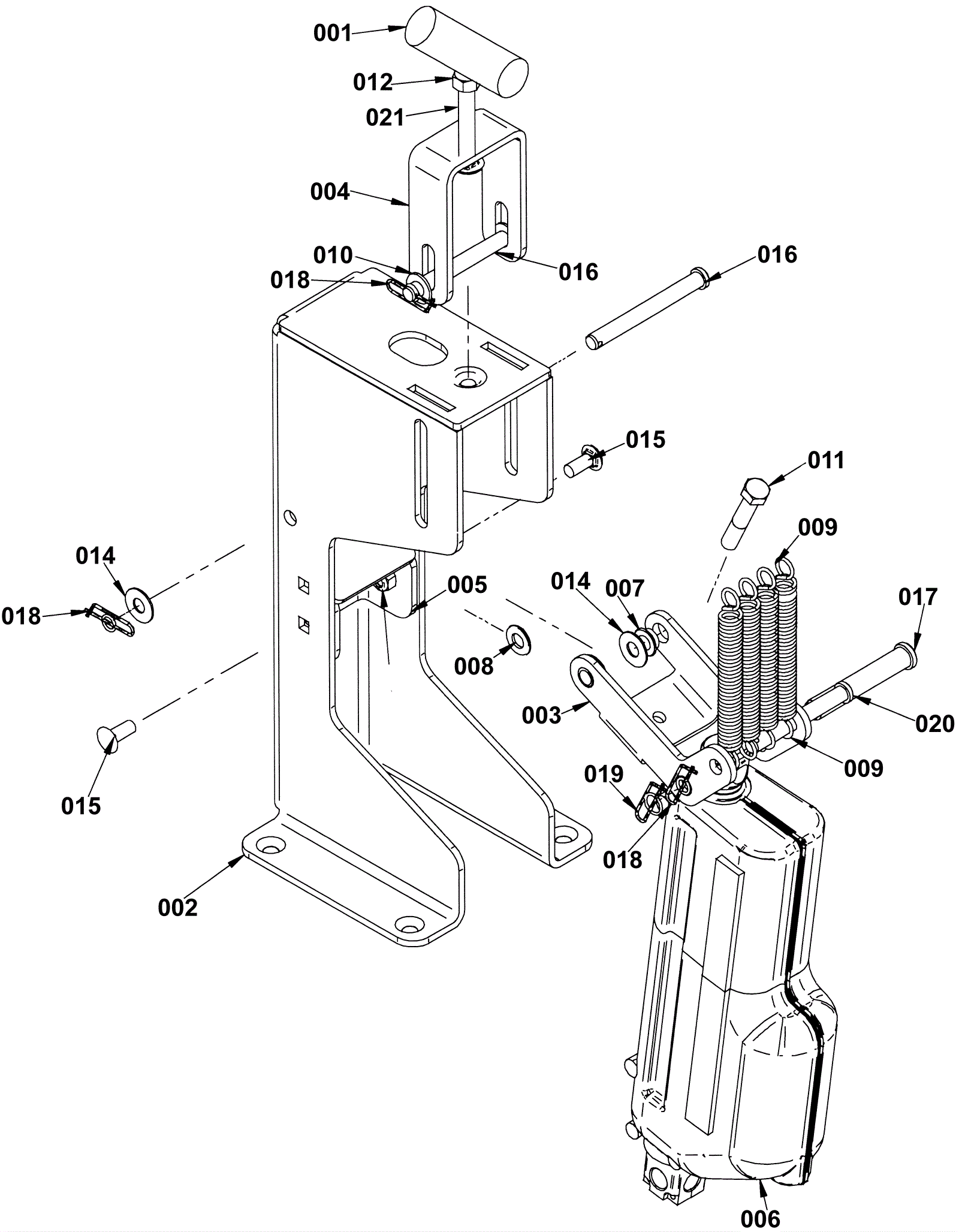

275 Actuator Piviot

#PartDescriptionPriceReqNotesAvailability
001 202-2565 Spring adjustment knob $73.92 1 usually ships 3-11 days
002 202-2566 Actuator upright $253.88 1 usually ships 1-5 days
003 202-2567 Actuator pivot $35.42 1 usually ships 1-5 days
004 202-2568 Actuator spring adjustment bracket $69.74 1 usually ships 3-11 days
005 202-2569 Pivot adjustment bracket $27.06 1 usually ships 1-5 days
006 202-2570 6 inch Stroke 36V actuator (OBSOLETE) $335.39 1 usually ships 3-11 days
007 202-1239 Flanged bearing $5.50 2 usually ships 3-11 days
008 202-1181 Washer 1/2 flat bronze $5.50 2 usually ships 3-11 days
009 202-2208 Compression spring $6.38 4 ships same day
010 999-1007 Washer 3/8 x 1/16 flat nylon $0.99 2 ships same day
011 202-2211 Screw 3/8-16 x 2 hex cap stainless steel $5.50 1 usually ships 1-5 days
012 999-0635 Nut 3/8-16 hex stainless steel $0.99 1 ships same day
013 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
014 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
015 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 2 ships same day
016 999-1633 Clevis pin 3/8 x 3 1/2 $4.31 2 ships same day
017 202-5182 Clevis pin $5.50 1 usually ships 11-24 days
018 202-2036 Cotter pin $8.25 3 usually ships 3-11 days
019 202-2059 Cotter ring $5.50 1 usually ships 3-11 days
020 202-2572 Clevis pin $20.46 1 usually ships 1-5 days
021 999-0626 Screw 3/8-16 x 3 carriage head stainless steel $5.50 1 ships same day
