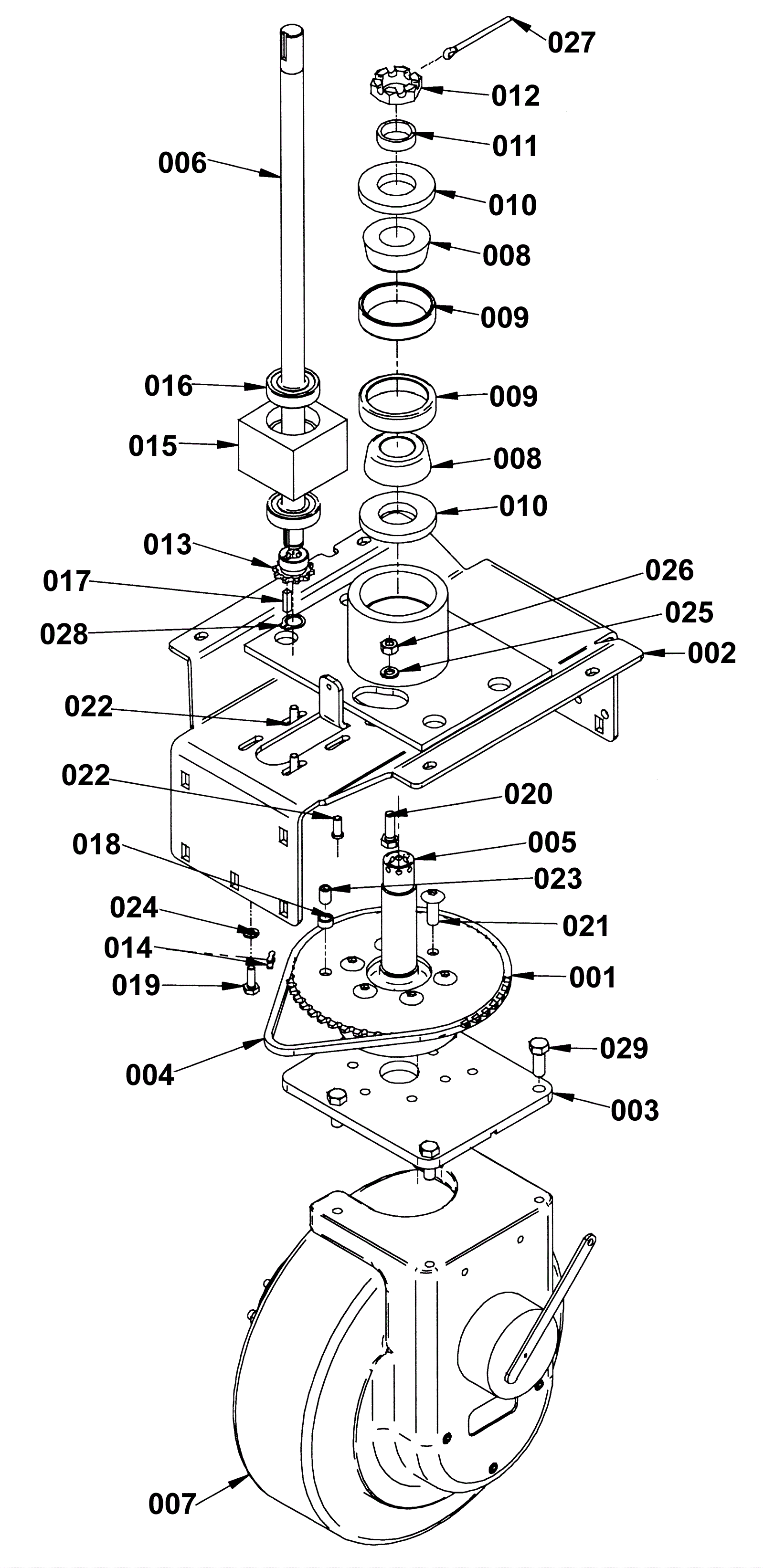

275 Front Wheel Drive 1

#PartDescriptionPriceReqNotesAvailability
001 202-1894 60 toothed sprocket $79.31 1 usually ships 1-5 days
002 202-2968 Plate $479.60 1 usually ships 1-5 days
003 202-1896 Pivot plate $125.95 1 usually ships 1-5 days
004 202-1897 Steering chain $37.73 1 usually ships 3-11 days
005 202-2308 Steering shaft spindle $581.02 1 usually ships 1-5 days
006 202-2527 Lower sheering shaft $96.03 1 usually ships 3-11 days
007 202-0758 Drive wheel housing w/ motor and brake (wheel not included) $2,393.38 1 usually ships 1-5 days
008 202-0766 Tapered bearing $24.42 2 usually ships 3-11 days
009 202-0767 Bearing cap $24.86 2 usually ships 3-11 days
010 202-0768 Seal $32.01 2 usually ships 3-11 days
011 202-0769 Sleeved bearing $5.50 1 usually ships 3-11 days
012 202-1166 Slotted castle nut $9.35 1 usually ships 3-11 days
013 202-0280 10 toothed sprocket $31.13 1 usually ships 3-11 days
014 202-0283 Master link $5.50 1 usually ships 3-11 days
015 202-0771 Bearing block $205.48 1 usually ships 3-11 days
016 202-0160 Bearing $41.80 2 usually ships 3-11 days
017 164-1029 Square keyway $13.22 1 ships same day
018 202-0775 PVC tube $6.31 1 usually ships 1-5 days
019 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
020 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 2 ships same day
021 999-1011 Screw 3/8-24 x 1 button head socket plain finish $1.40 6 ships same day
022 999-0435 Screw 1/4-20 x 5/8 socket head alloy plain finish $0.99 2 ships same day
023 202-1169 Clevis pin $10.91 1 usually ships 1-5 days
024 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
025 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
026 999-0069 Nut 5/16-18 hex $0.99 2 ships same day
027 997-2520 Cotter pin $2.18 1 usually ships 11-24 days
028 202-0281 Snap ring $5.50 1 usually ships 3-11 days
029 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 4 ships same day
