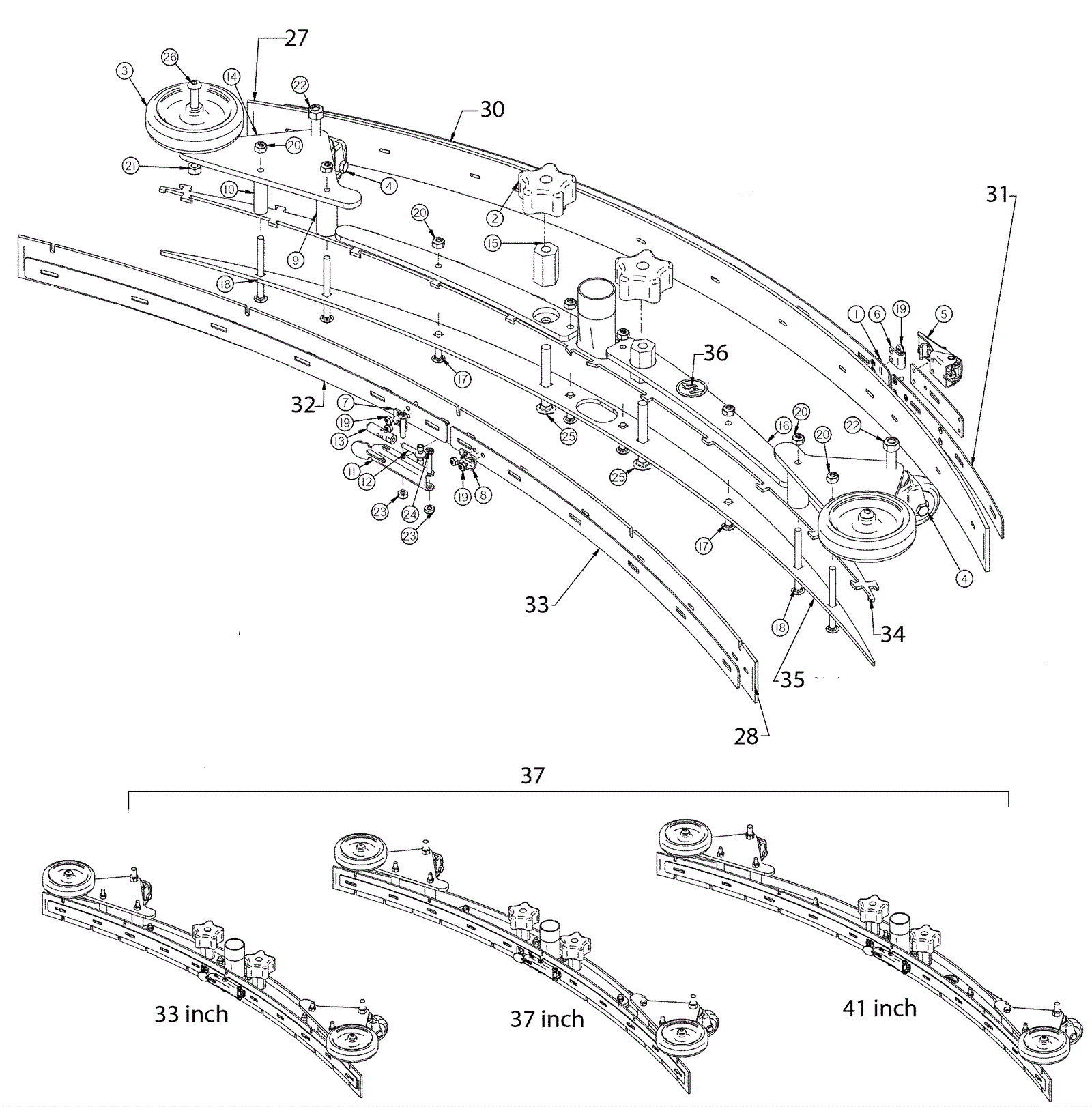

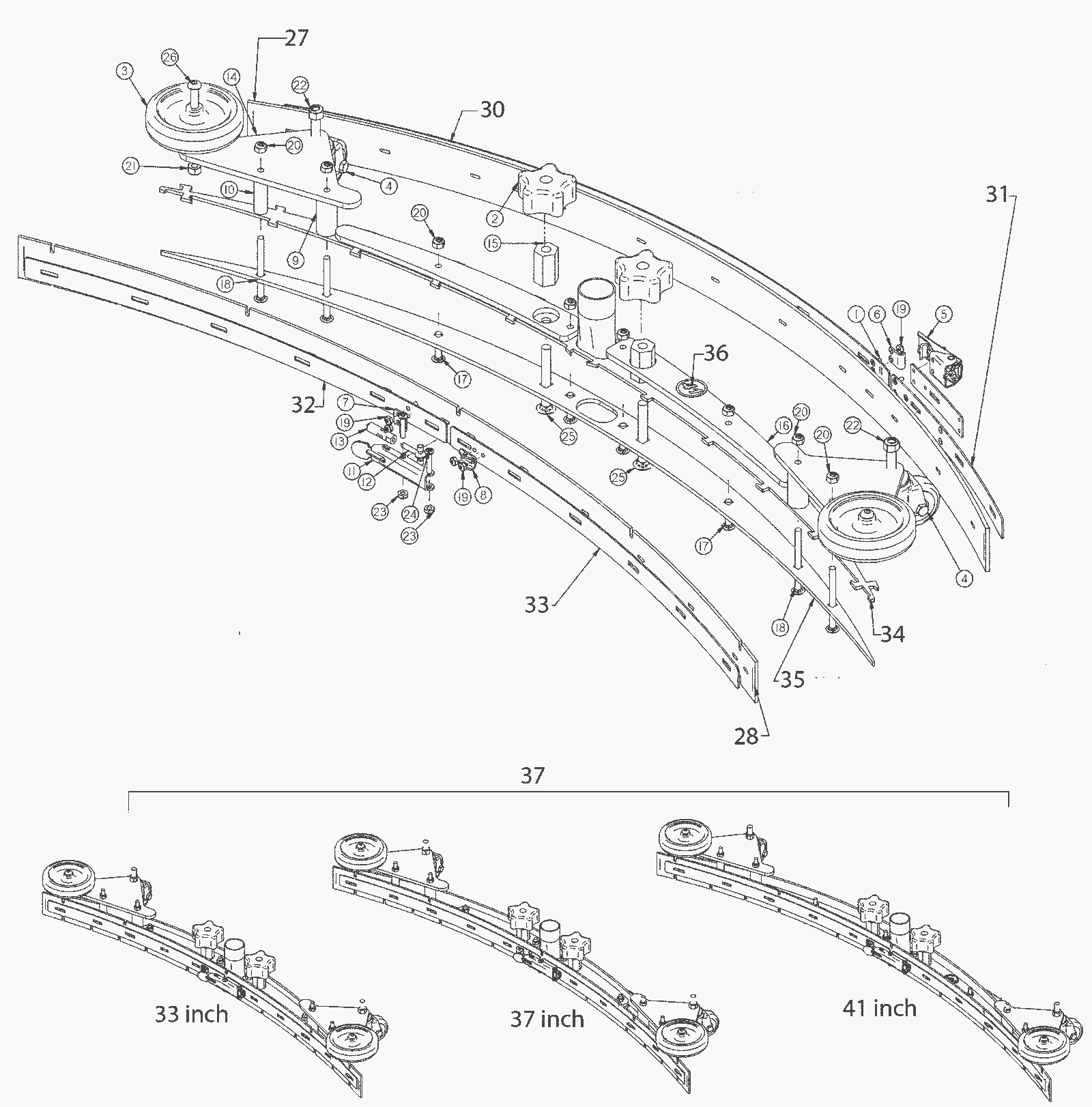

Squeegee Assembly

#PartDescription ReqNotesAvailability
1 N/A Not available 9 (Flat head socket #6-32 x 3/8 screw)
2 202-5078 Star knob 2
3 202-5079 4 inch wheel 2
4 202-3590 2 inch caster (gray) 2
5 202-9913 Squeegee latch 1
6 202-3648 Band clip 1
7 202-3649 Front band clip 1
8 202-9914 Front band clip 1
9 202-9915 PVC tube 2
10 202-9916 PVC tube 2
11 N/A Not available 1 (only available with front band assembly)
12 202-9917 Eye bolt 1/4-20 x 3 1
13 202-9918 Ram tip 1
14 202-9919 Squeegee caster bracket 2
15 202-9920 Standoff 2
16 202-3670 45 inch squeegee weight 2
17 999-1443 Bolt 1/4-20 x 1 1/4 carriage stainless steel 4
18 999-9246 Bolt 1/4-20 x 3 carriage zinc 4
19 999-0337 Nut 6-32 nylon insert lock stainless steel 9
20 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 8
21 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
22 999-0188 Nut 3/8-16 nylon insert lock zinc plated 2
23 999-0086 Nut 10-32 nylon insert lock zinc plated 2
24 999-0986 Screw 10-32 x 1 round pan head stainless steel 2
25 999-0626 Screw 3/8-16 x 3 carriage head stainless steel 2
26 999-1913 Screw 5/16-18 x 1 3/4 button head socket cap stainless steel 2
27a 302-0244 Squeegee blade 33 inch linatex rear 1 (33 inch)
27b 302-0165 33 inch rear squeegee blade urethane 1 (33 inch)
27c 202-9921 Rear squeegee blade (nanorade) 1 (33 inch)
27d 202-3664 Squeegee blade 37 inch linatex rear 1 (37 inch)
27e 202-9692 Squeegee blade 37 inch urethane rear 1 (37 inch)
27f 302-0231 Squeege blade rear nanorade 1 (37 inch)
27g 202-9613 Squeegee blade rear linatex 1 (41 inch)
27h 302-0162 41 inch squeegee blade rear urethane 1 (41 inch)
27i 302-0232 Squeege blade rear nanorade 1 (41 inch)
28a 202-3691 Squeegee blade 33 inch linatex front 1 (33 inch)
28b 302-0243 Squeegee blade 33 inch urethane front 1 (33 inch)
28c 202-9924 33 inch front squeegee blade (nanorade) 1 (33 inch)
28d 202-3692 Squeegee blade 37 inch linatex front 1 (37 inch)
28e 202-9695 Squeegee blade 37 inch urethane front 1 (37 inch)
28f 302-0233 Squeege blade front nanorade 1 (37 inch)
28g 202-9611 Squeegee blade front linatex 1 (41 inch)
28h 202-9612 Squeegee blade front urethane 1 (41 inch)
28i 302-0234 Squeege blade front nanorade 1 (41 inch)
30a 202-3672 Squeegee band 33 inch rear with latch 1 (33 inch)
30b 202-3673 Squeegee band 37 inch rear with latch 1 (37 inch)
30c 202-9610 Complete rear squeegee band 1 (41 inch)
31a 202-3672 Squeegee band 33 inch rear with latch 1 (33 inch) (left and right side bands)
31b 202-3673 Squeegee band 37 inch rear with latch 1 (37 inch)(left and right side bands)
31c 202-9610 Complete rear squeegee band 1 (41 inch)(left and right side bands)
32a 202-3676 Squeegee band 33 inch front with latch 1 (33 inch)(left and right side bands)
32b 202-3677 Squeegee band 37 inch front with latch 1 (37 inch)(left and right side bands)
32c 202-3678 Squeegee band 41 inch front with latch 1 (41 inch)(left and right side bands)
33a 202-3676 Squeegee band 33 inch front with latch 1 (33 inch)(left and right side bands)
33b 202-3677 Squeegee band 37 inch front with latch 1 (37 inch)(left and right side bands)
33c 202-3678 Squeegee band 41 inch front with latch 1 (41 inch)(left and right side bands)
34a 302-0235 33 inch squeegee body 1 (33 inch)
34b 302-0236 37 inch squeegee body 1 (37 inch)
34c 302-0237 41 inch squeegee body 1 (41 inch)
35a 202-9923 33 inch squeegee body bottom 1 (33 inch)
35b 302-0238 37 inch squeegee body bottom 1 (37 inch)
35c 302-0239 41 inch squeegee body bottom 1 (41 inch)
36a 202-9922 33 inch squeegee decal 1 (33 inch)
36b 202-4349 37 inch squeegee decal 1 (37 inch)
36b 202-3656 41 inch squeegee decal 1 (41 inch)
37a 202-9925 33 inch squeegee assembly with nanorade blades 1 (33 inch)
37b 302-0157 37 inch squeegee complete with nanorade 1 (37 inch)
37c 302-0158 41 inch squeegee complete with nanorade blades 1 (41 inch)
