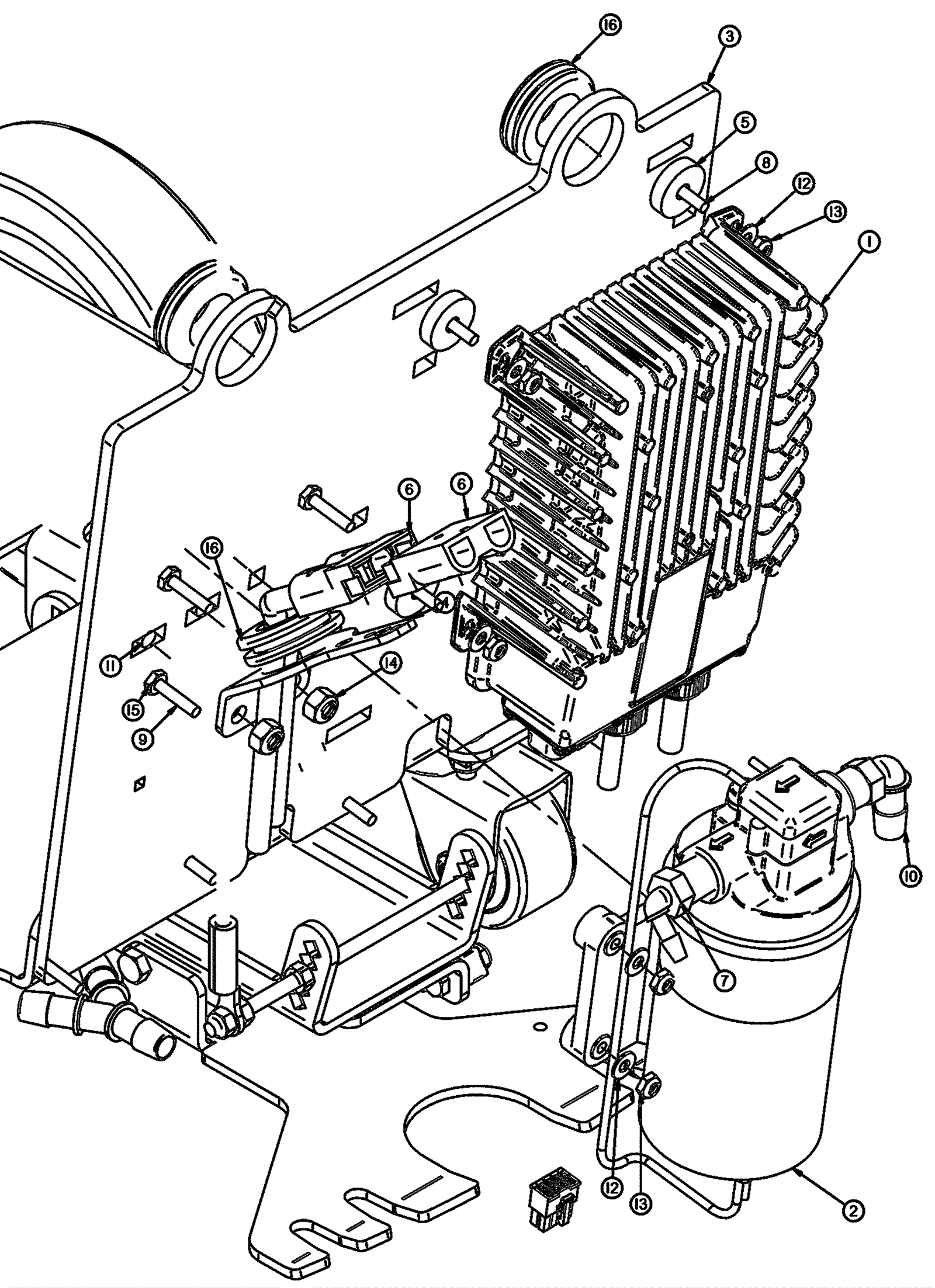

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-9930
|
24V onboard charger with power cord |
1 |
|
|
2 |
202-6852
|
Pump,24V,High PSI |
1 |
|
|
3 |
302-0230
|
Utilities plate |
1 |
|
|
4 |
202-7091
|
Bracket, Charger Connector |
1 |
|
|
5 |
202-5085
|
20 and 28 inch spacer |
4 |
|
|
6 |
991-9284
|
50amp charger plug SB50 with pins (red) |
2 |
|
|
7 |
202-5011
|
90 degree hose barb |
1 |
|
|
8 |
999-1982
|
Bolt 10-32 x 1 round carriage head stainless steel |
1 |
|
|
9 |
999-1570
|
Bolt 10-32 x 1 1/4 round head carriage stainless steel |
1 |
|
|
10 |
202-3236
|
Threaded barb |
1 |
|
|
11 |
999-9069
|
Bolt 5/16-18 x 3/4 carriage head |
2 |
|
|
12 |
999-0006
|
Washer 3/16 flat zinc plated |
8 |
|
|
13 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
8 |
|
|
14 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
|
15 |
202-2067
|
Nut 10-32 keps |
3 |
|
|
16 |
202-2592
|
Grommet |
3 |
|
|
