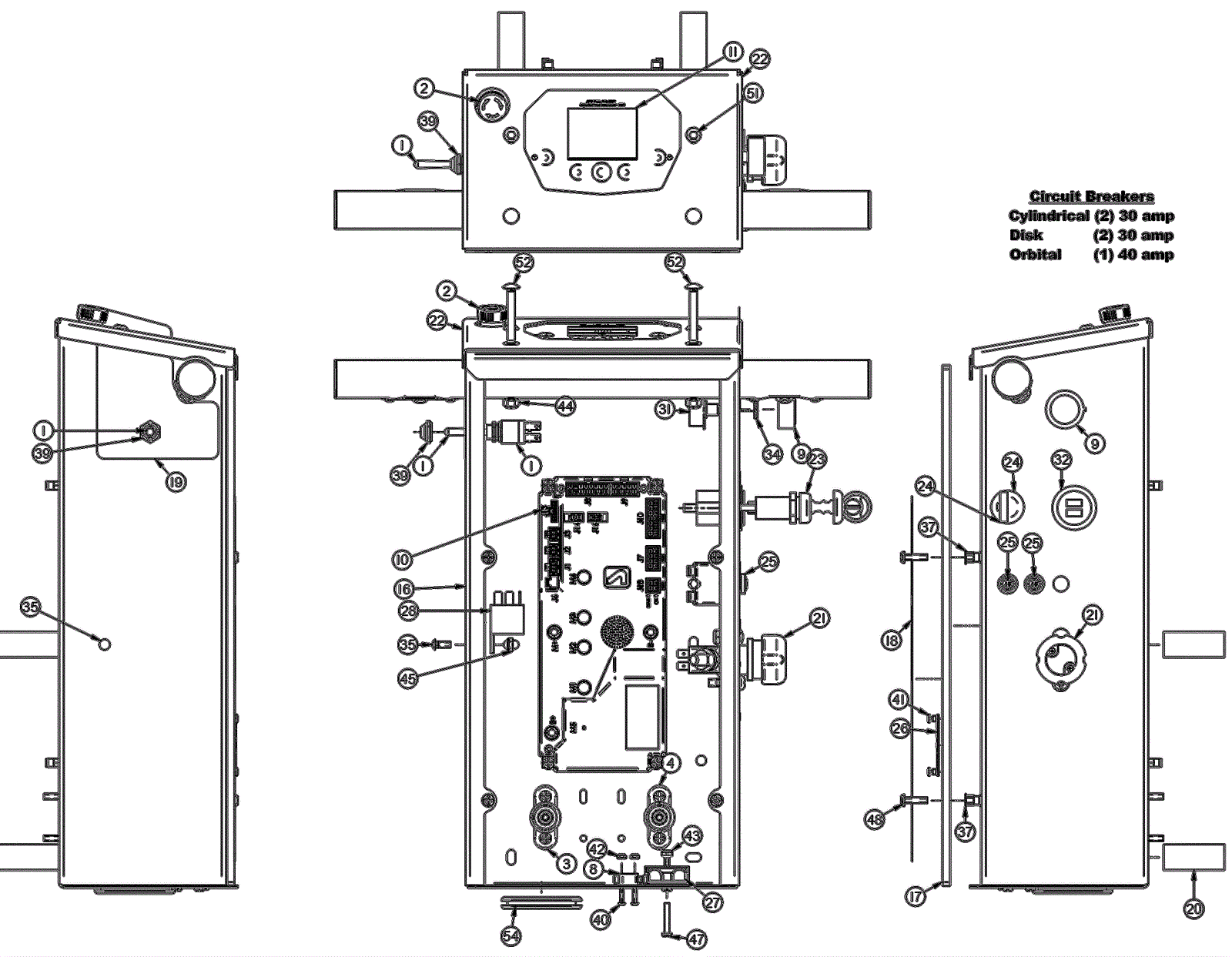

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5396
|
Toggle switch |
1 |
|
|
2 |
202-4191
|
Emergency stop button |
1 |
|
|
3 |
202-6396
|
Power Post, Black, 1/4 Terminal |
1 |
|
|
4 |
202-6397
|
Power Post, Red, 1/4 Terminal |
1 |
|
|
8 |
202-0721
|
Microswitch |
1 |
|
|
9 |
202-0989
|
Control knob with washer (red) |
1 |
|
|
10 |
302-0220
|
24V controller |
1 |
|
|
11 |
302-0222
|
Dash panel assembly |
1 |
|
|
16 |
302-0226
|
Central command orion RG |
1 |
|
|
17 |
202-9902
|
Control panel cover |
1 |
|
|
18 |
202-9905
|
Decal set |
1 |
|
|
19 |
202-9905
|
Decal set |
1 |
|
|
20 |
202-9906
|
Central command spacer |
4 |
|
|
21 |
302-0227
|
E-stop |
1 |
|
|
22 |
302-0228
|
Cover |
1 |
|
|
23 |
202-2300
|
Key switch with key entry (red) and ring (black) |
1 |
|
|
24 |
991-1634
|
Key (pkg of 2) |
1 |
|
|
25 |
202-2499
|
15amp fuse |
2 |
|
|
26 |
202-0720
|
Serial number plate |
1 |
|
|
27 |
991-9284
|
50amp charger plug SB50 with pins (red) |
1 |
|
|
28 |
202-0348
|
15amp relay |
1 |
|
|
31 |
202-0535
|
Speed control potentiometer |
1 |
|
|
32 |
202-3625
|
Dual USB ports |
1 |
|
|
33 |
202-5284
|
Nut 1/4-20 hex crimp long |
2 |
|
|
34 |
202-9136
|
Nut,Hex,3/8-32 inch,Zinc |
1 |
|
|
35 |
202-3302
|
Bolt 10-32 x 1/2 carriage head stainless steel |
1 |
|
|
37 |
202-3601
|
Nut #10-32 hex crimp |
8 |
|
|
39 |
202-1864
|
Toggle switch protective boot (red) |
1 |
|
|
40 |
202-2371
|
Screw 4-40 x 3/4 round pan head |
2 |
|
|
41 |
202-3315
|
Blind rivet |
4 |
|
|
42 |
999-0295
|
Nut 4-40 nylon insert lock stainless steel |
2 |
|
|
43 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
2 |
|
|
44 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
|
45 |
202-2067
|
Nut 10-32 keps |
1 |
|
|
47 |
999-1574
|
Screw 8-32 x 1 pan head phillips stainless steel |
2 |
|
|
48 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
12 |
|
|
51 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
2 |
|
|
52 |
999-1400
|
Screw 1/4-20 x 1 3/4 carriage head stainless steel |
2 |
|
|
54 |
202-3636
|
Grommet |
1 |
|
|
N/S |
202-2866
|
12 inch large 16 Gage red wire |
2 |
|
|
N/S |
202-2251
|
Yellow wire, 16 gage |
2 |
|
|
N/S |
202-2252
|
End cap |
2 |
|
|
N/S |
302-0221
|
Dash Panel SED |
1 |
|
|
N/S |
302-0223
|
Membrane display |
1 |
|
|
N/S |
302-0224
|
Handle bar (dual button) |
1 |
|
|
N/S |
302-0225
|
Gasket |
1 |
|
|
N/S |
202-0869
|
Switch cover |
2 |
|
|
N/S |
202-0879
|
Push button switch |
2 |
|
|
N/S |
202-2253
|
Nut 1/4-.3/8 x 3/8 long flanged bearing nylon |
1 |
|
|
N/S |
202-2254
|
Heat shrink |
4 |
|
|
N/S |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
4 |
|
|
N/S |
999-0986
|
Screw 10-32 x 1 round pan head stainless steel |
2 |
|
|
N/S |
999-0342
|
Screw 1/4-20 x 1 pan head phillips stainless steel |
1 |
|
|
N/S |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
2 |
|
|
N/S |
302-0229
|
Nylock M4 |
4 |
|
|
