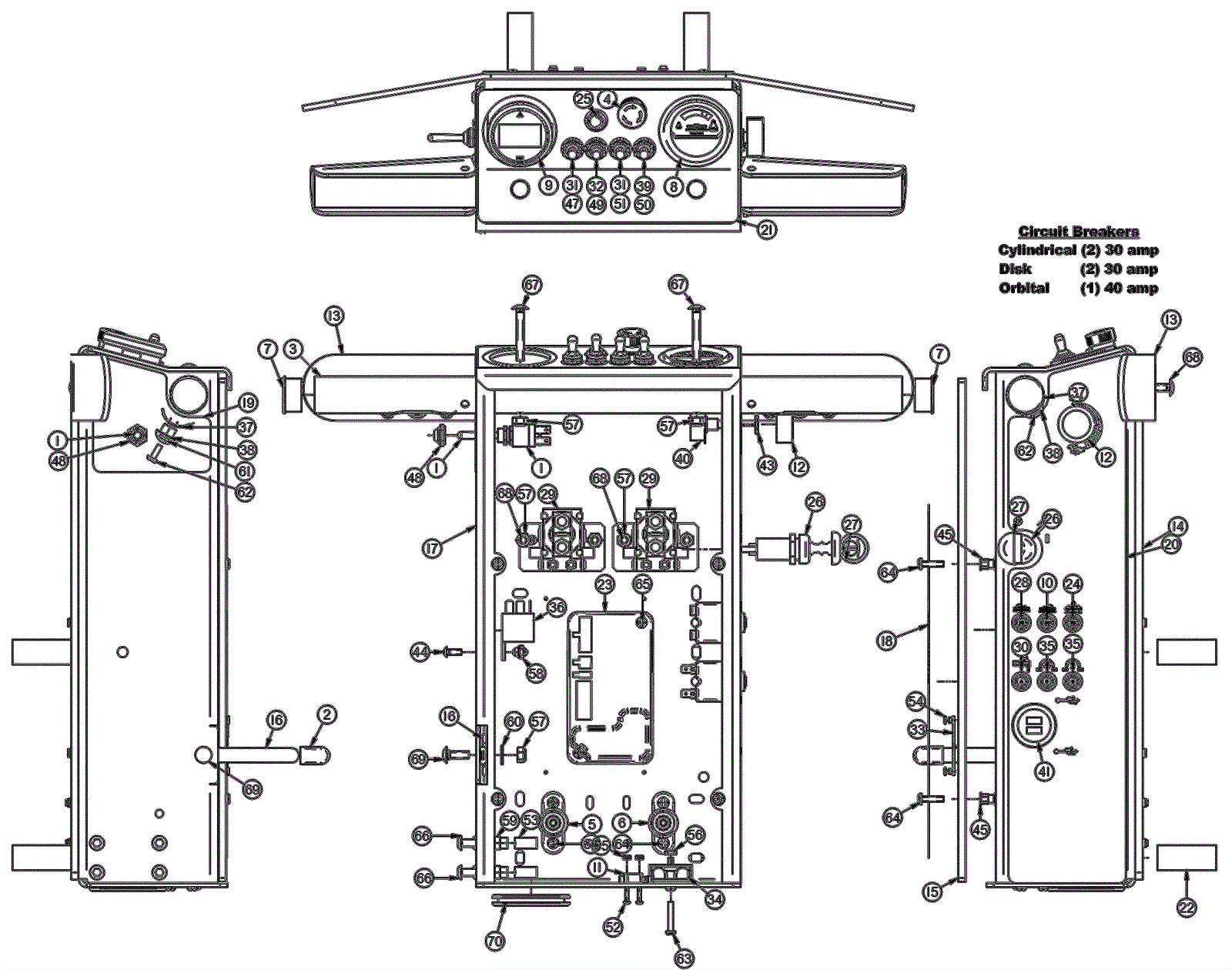

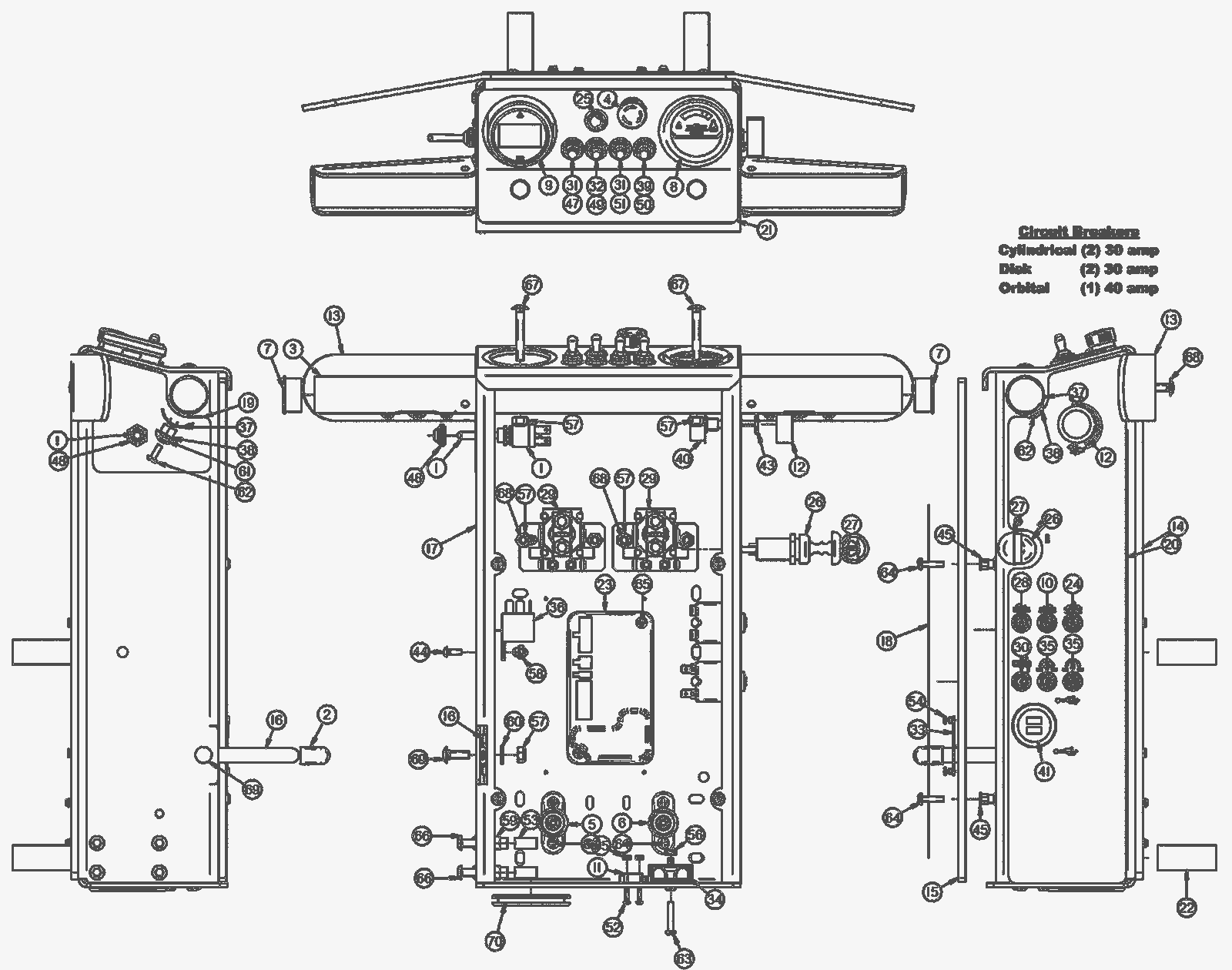

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5396
|
Toggle switch |
1 |
|
|
2 |
202-5386
|
Handle grip (blue) |
1 |
|
|
3 |
202-6182
|
Handlebar,Dual Button |
1 |
|
|
4 |
202-4191
|
Emergency stop button |
1 |
|
|
5 |
202-6396
|
Power Post, Black, 1/4 Terminal |
2 |
|
|
6 |
202-6397
|
Power Post, Red, 1/4 Terminal |
2 |
|
|
7 |
202-2252
|
End cap |
2 |
|
|
8 |
202-4159
|
40amp brush pressure gauge |
1 |
|
|
9 |
202-2855
|
Battery meter |
1 |
|
|
10 |
202-4160
|
40amp resettable fuse |
1 |
|
|
11 |
202-0721
|
Microswitch |
1 |
|
|
12 |
202-0989
|
Control knob with washer (red) |
1 |
|
|
13 |
202-9900
|
Hand guard |
1 |
|
|
14 |
202-9901
|
Control panel weight |
1 |
|
|
15 |
202-9902
|
Control panel cover |
1 |
|
|
16 |
202-9903
|
Valve lever |
1 |
|
|
17 |
202-9904
|
Control panel |
1 |
|
|
18 |
202-9905
|
Decal set |
1 |
|
|
19 |
202-9905
|
Decal set |
1 |
|
|
20 |
202-9905
|
Decal set |
2 |
|
|
21 |
202-9905
|
Decal set |
1 |
|
|
22 |
202-9906
|
Central command spacer |
4 |
|
|
23 |
202-3634
|
Drive controller |
1 |
|
|
24 |
202-9907
|
20amp resettable fuse |
1 |
|
|
25 |
202-0832
|
Full recovery indicator (red) |
2 |
|
|
26 |
202-2300
|
Key switch with key entry (red) and ring (black) |
1 |
|
|
27 |
991-1634
|
Key (pkg of 2) |
1 |
|
|
28 |
202-2242
|
30amp fuse |
2 |
|
|
29 |
202-5253
|
24V relay |
2 |
|
|
30 |
202-7595
|
Breaker,4a |
1 |
|
|
31 |
202-1992
|
Toggle switch |
2 |
|
|
32 |
202-0097
|
Toggle switch |
1 |
|
|
33 |
202-0720
|
Serial number plate |
1 |
|
|
34 |
991-9284
|
50amp charger plug SB50 with pins (red) |
1 |
|
|
35 |
202-0341
|
6 Amp circuit breaker |
2 |
|
|
36 |
202-0348
|
15amp relay |
2 |
|
|
37 |
202-0869
|
Switch cover |
2 |
|
|
38 |
202-0879
|
Push button switch |
2 |
|
|
39 |
202-0521
|
Toggle switch |
1 |
|
|
40 |
202-0535
|
Speed control potentiometer |
1 |
|
|
41 |
202-3625
|
Dual USB ports |
1 |
|
|
43 |
202-9136
|
Nut,Hex,3/8-32 inch,Zinc |
1 |
|
|
44 |
202-3302
|
Bolt 10-32 x 1/2 carriage head stainless steel |
1 |
|
|
45 |
202-3601
|
Nut #10-32 hex crimp |
10 |
|
|
47 |
202-1976
|
Toggle switch protective boot (white) |
1 |
|
|
48 |
202-1864
|
Toggle switch protective boot (red) |
1 |
|
|
49 |
202-1865
|
Toggle switch protective boot (blue) |
1 |
|
|
50 |
202-1355
|
Toggle switch protective boot (black) |
1 |
|
|
51 |
202-2221
|
Toggle switch protective boot (gray) |
1 |
|
|
52 |
202-2371
|
Screw 4-40 x 3/4 round pan head |
2 |
|
|
53 |
202-2964
|
Shaft collar |
4 |
|
|
54 |
202-3315
|
Blind rivet |
4 |
|
|
55 |
999-0295
|
Nut 4-40 nylon insert lock stainless steel |
2 |
|
|
56 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
2 |
|
|
57 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
9 |
|
|
58 |
202-2067
|
Nut 10-32 keps |
3 |
|
|
59 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
4 |
|
|
60 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
61 |
999-0150
|
Washer #8 medium split lock |
4 |
|
|
62 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
4 |
|
|
63 |
999-1574
|
Screw 8-32 x 1 pan head phillips stainless steel |
2 |
|
|
64 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
8 |
|
|
65 |
999-0986
|
Screw 10-32 x 1 round pan head stainless steel |
2 |
|
|
66 |
202-3109
|
Screw 1/4 x 5/8 button head socket stainless steel |
4 |
|
|
67 |
999-1400
|
Screw 1/4-20 x 1 3/4 carriage head stainless steel |
2 |
|
|
68 |
202-2851
|
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
6 |
|
|
69 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
1 |
|
|
70 |
202-3636
|
Grommet |
1 |
|
|
N/S |
202-1196
|
Washer 17/64 x 21/64 nylon flat |
2 |
|
|
N/S |
202-2254
|
Heat shrink |
4 |
|
|
