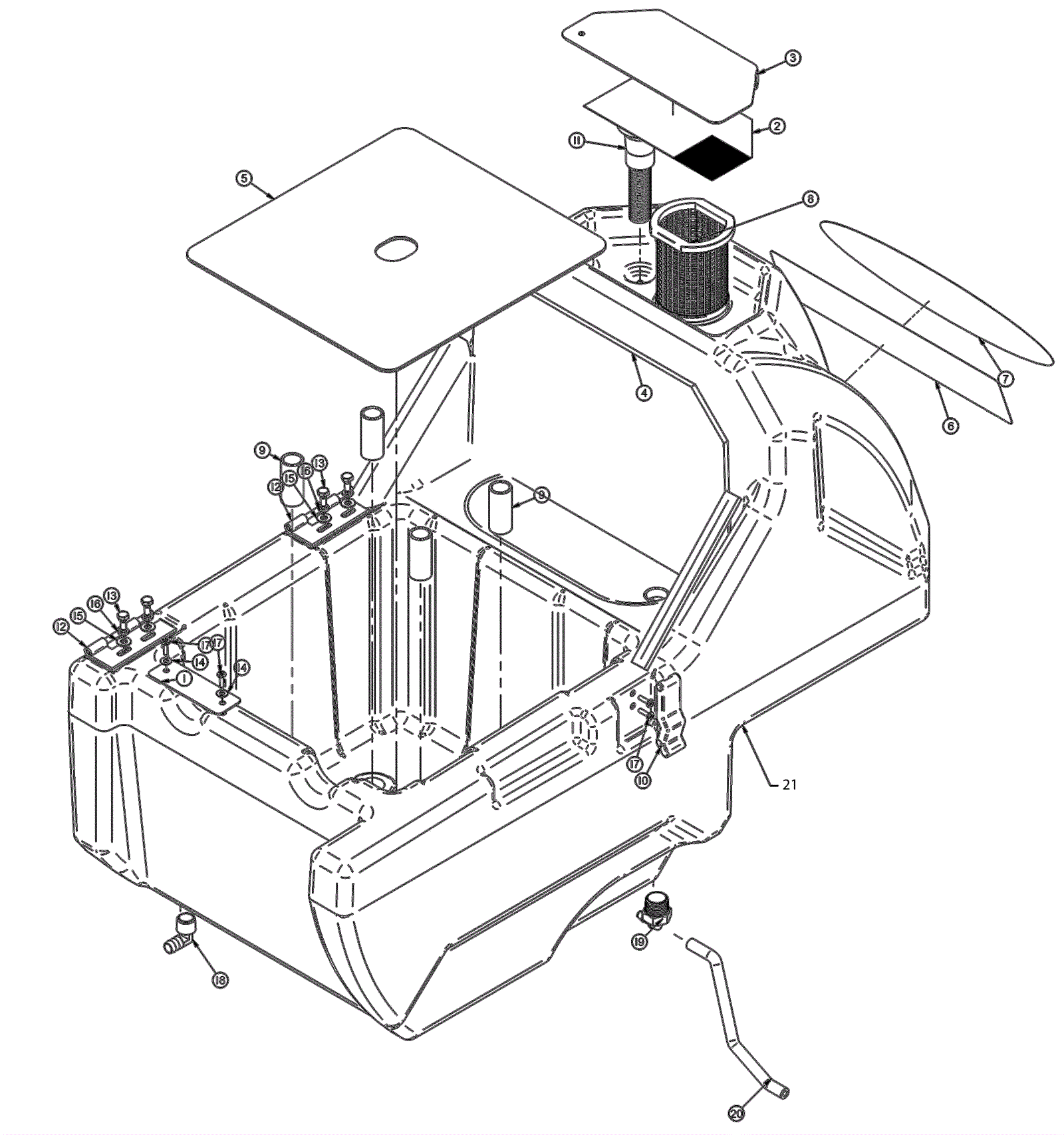

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
302-0202
|
Strap |
1 |
|
|
2 |
202-9869
|
Solution fill screen |
1 |
|
|
3 |
302-0204
|
Solution fill curtain |
1 |
|
|
4 |
302-0203
|
Vac motor insulation |
1 |
|
|
5 |
302-0205
|
Battery plate |
1 |
|
|
6 |
202-9874
|
Kodiak decal |
1 |
|
|
7 |
202-9875
|
Timberline decal |
1 |
|
|
8 |
202-9876
|
Strainer screen (blue) |
1 |
|
|
9 |
302-0206
|
Spacer |
4 |
|
|
10 |
202-1487
|
Latch |
1 |
|
|
11 |
202-4200
|
Fill hose |
1 |
|
|
12 |
202-5648
|
4 inch hinge stainless steel |
2 |
|
|
13 |
999-0019
|
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
4 |
|
|
14 |
999-0006
|
Washer 3/16 flat zinc plated |
2 |
|
|
15 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
4 |
|
|
16 |
999-0060
|
Washer 1/4 split lock plain finish |
4 |
|
|
17 |
999-0358
|
Screw 8-32 x 5/8 pan head phillips stainless steel |
4 |
|
|
18 |
202-3440
|
Barbed elbow |
1 |
|
|
19 |
202-9877
|
Elbow |
1 |
|
|
20 |
202-4225
|
Hose |
1 |
|
|
21a |
302-0207
|
Solution tank (black) |
1 |
|
|
21b |
302-0208
|
Solution tank (blue) |
1 |
|
|
21c |
302-0209
|
Solution tank (antimicrobial) |
1 |
|
|
