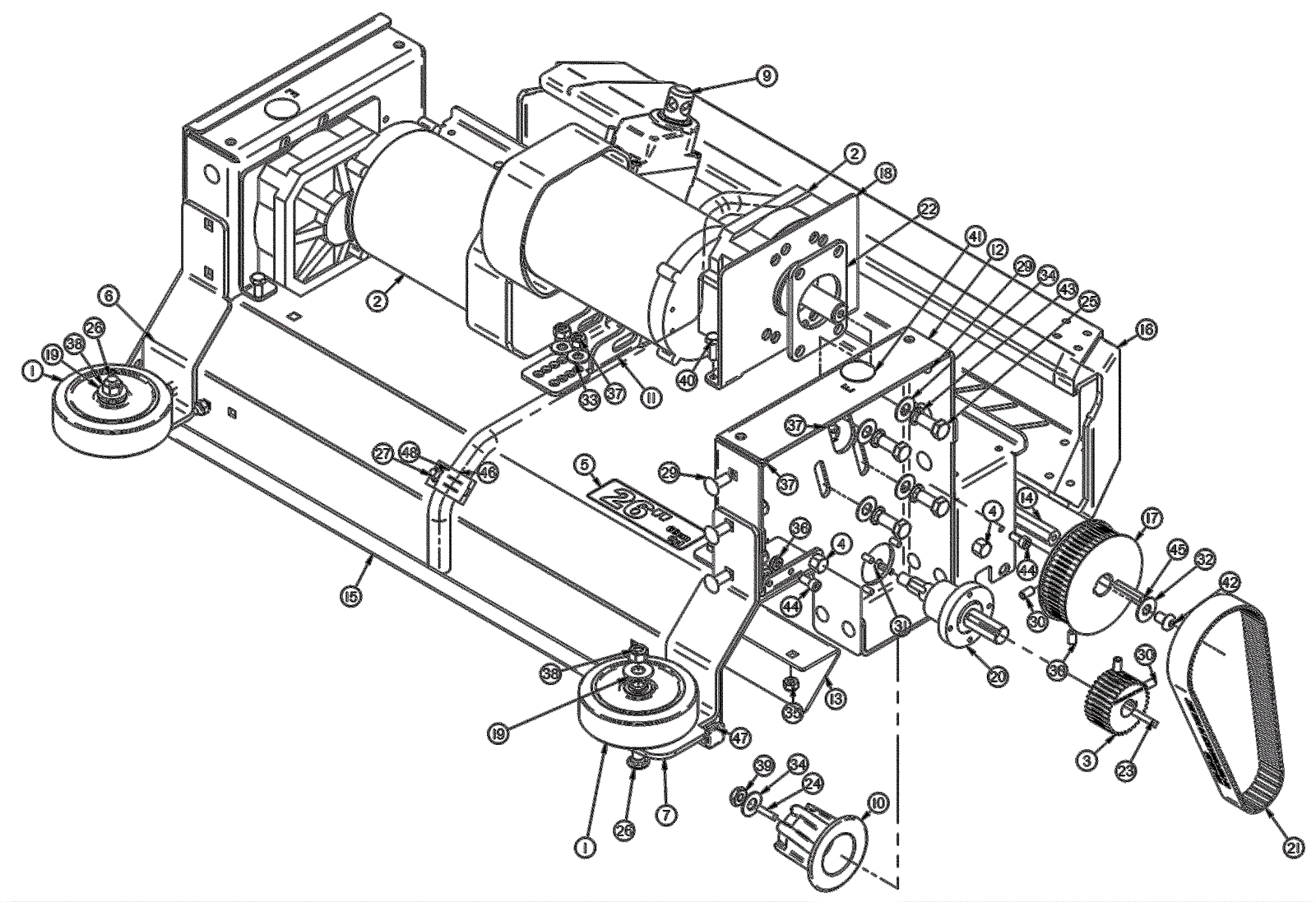

M26 26 inch Cylindrical Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-2098 4 inch wheel (gray) $43.23 2 usually ships 8-13 days
2 202-9616 24V 3/4HP brush motor w/ connectors $747.01 2 usually ships 8-13 days
3 202-3140 32 toothed sprocket $81.51 2 usually ships 8-13 days
4 202-4023 Thumb screw $20.68 4 usually ships 8-13 days
5 302-0193 26 inch cylindrical decal $21.23 1 usually ships 8-13 days
6 302-0194 Right hand bracket $40.92 1 usually ships 8-13 days
7 302-0195 Left hand bracket $40.92 1 usually ships 8-13 days
9 202-9851 24V actuator $395.12 1 usually ships 8-13 days
10 302-0094 Cylindrical driver spiral 7 spline $98.45 2 usually ships 8-13 days
11 302-0196 Deck lifting bracket $70.40 1 usually ships 8-13 days
12 202-2173 Side support $132.44 2 usually ships 8-13 days
13 302-0086 26 inch cylindrical attinuator $59.95 1 usually ships 8-13 days
14 302-0084 26 inch cylindrical stiffener $327.58 1 usually ships 8-13 days
15 302-0088 26 inch cylindrical shell $371.58 1 usually ships 8-13 days
16 302-0197 26 inch hopper Call for price 1 usually ships 8-13 days
17 202-7059 Sprocket, Timing, 56 Tooth $78.43 2 usually ships 8-13 days
18 202-7071 Bracket, Motor Adjustment $68.20 2 usually ships 8-13 days
19 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
20 202-3146 Bearing housing $167.97 2 usually ships 8-13 days
21 202-0023 Cylindrical belt $112.64 2 usually ships 8-13 days
22 202-2175 Motor spacer $45.10 2 usually ships 8-13 days
23 202-0847 Square keyway $5.50 2 usually ships 8-13 days
24 202-3153 Square keyway $5.50 2 usually ships 8-13 days
25 999-1469 Screw 3/8-24 x 7/8 hex head zinc plated $0.99 8 usually ships 1-5 days
26 999-1638 Bolt 3/8-16 x 2 1/4 carriage stainless steel $5.50 2 ships same day
27 999-9239 Bolt 1/4-20 x 1/2 carriage $0.99 2 usually ships 16-20 days
29 999-9069 Bolt 5/16-18 x 3/4 carriage head $0.99 22 usually ships 1-5 days
30 999-1468 Screw 1/4-20 x 1/2 knurled point set alloy steel $0.99 8 ships same day
31 202-9285 Screw,PFHM,#10-32x1/2 inch Zinc $5.50 8 usually ships 8-13 days
32 202-1214 Washer 1/4 uss $5.50 2 usually ships 1-5 days
33 202-1201 Washer 5/16 uss $5.50 10 usually ships 1-5 days
34 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 10 ships same day
35 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 22 ships same day
36 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 6 ships same day
37 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 22 ships same day
38 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 2 ships same day
39 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel $2.02 2 ships same day
40 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 usually ships 16-20 days
41 202-2244 Hole plug 7/8 $5.50 2 usually ships 1-5 days
42 999-1459 Screw 5/16-18 x 1/2 button socket head stainless steel $0.99 2 ships same day
43 202-3158 Washer 3/8 inch serrated stainless steel $9.02 8 usually ships 1-5 days
44 999-9293 Screw 1/4-20 x 1/2 socket head cap $0.99 5 usually ships 16-20 days
45 202-0140 Steering shaft key $5.50 2 usually ships 8-13 days
46 202-9642 3/4 inch clamp zinc $5.50 1 usually ships 8-13 days
47 202-9545 Plug,Square,3/4 inch,Black $5.50 2 usually ships 8-13 days
48 202-5106 Reinforced hose 1/2 x 60 inch $38.17 1 usually ships 1-5 days
N/S 999-9240 Bolt 1/4-20 x 5/8 carriage $0.99 22 usually ships 16-20 days
N/S 302-0093 24v motor $362.23 1 usually ships 8-13 days
