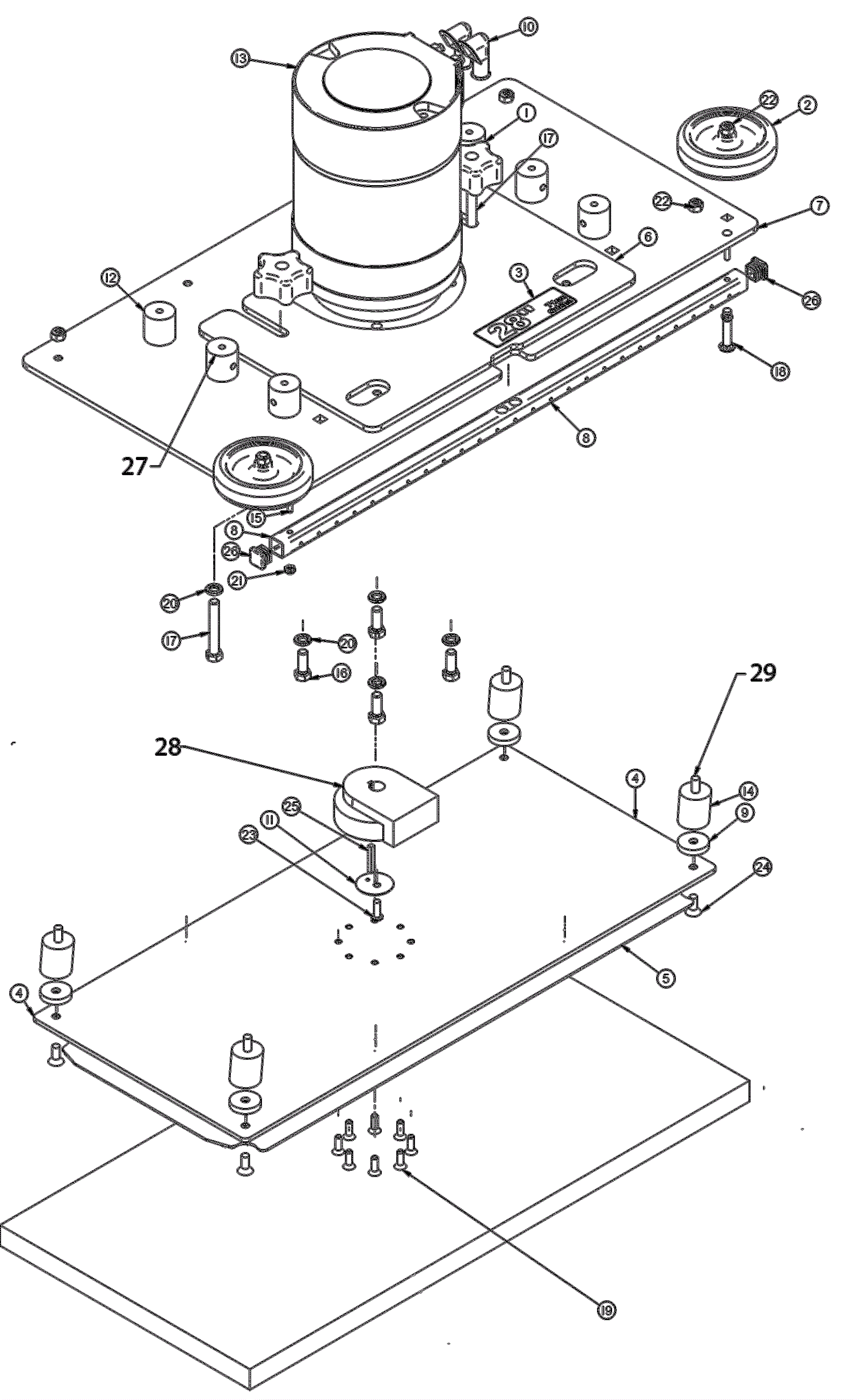

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5078
|
Star knob |
2 |
|
|
2 |
202-5079
|
4 inch wheel |
2 |
|
|
3 |
302-0190
|
28 inch orbital decal |
1 |
|
|
4 |
202-2183
|
28 inch driver plate aluminum |
1 |
|
|
5 |
202-2185
|
28 inch grip face |
1 |
|
|
6 |
202-9867
|
Weight (yellow) |
1 |
|
|
7 |
302-0191
|
28 inch square deck head |
1 |
|
|
8 |
302-0192
|
28 inch solution feed tube |
1 |
|
|
9 |
202-4230
|
Spacer |
4 |
|
|
10 |
202-2961
|
Terminal cover (black) |
2 |
|
|
11 |
202-5084
|
Crush washer |
1 |
|
|
12 |
202-5213
|
20 inch isolator kit (pkg of 4) |
6 |
|
|
13 |
202-5531
|
24V 1 HP motor |
1 |
|
|
14 |
202-9662
|
Isolator |
4 |
|
|
15 |
999-1570
|
Bolt 10-32 x 1 1/4 round head carriage stainless steel |
2 |
|
|
16 |
999-0038
|
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
4 |
|
|
17 |
999-0041
|
Bolt 3/8-16 x 2 1/2 hex head full thread grade 5 zinc plated |
2 |
|
|
18 |
999-0404
|
Screw 5/16-18 x 1 3/4 carriage head grade 5 zinc |
2 |
|
|
19 |
999-0457
|
Screw 1/4-20 x 3/4 flat head phillips stainless steel |
8 |
|
|
20 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
6 |
|
|
21 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
2 |
|
|
22 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
12 |
|
|
23 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
1 |
|
|
24 |
999-1258
|
Screw 5/16-18 x 3/4 flat head phillips stainless steel |
4 |
|
|
25 |
202-0140
|
Steering shaft key |
1 |
|
|
26 |
202-9545
|
Plug,Square,3/4 inch,Black |
2 |
|
|
27 |
202-9862
|
Upper isolator kit (orbital) |
1 |
|
|
28 |
202-9863
|
Orbital eccentric kit |
1 |
(includes 1-eccentric, 8-bolts, 1-gasket, 1-sticker seal, 1-pack blue loctite) |
|
29 |
202-9864
|
Orbital isolator kit |
1 |
(includes 4-isolators, 4-bolts, 4-nuts, 1-gasket, 1-sticker seal) |
|
