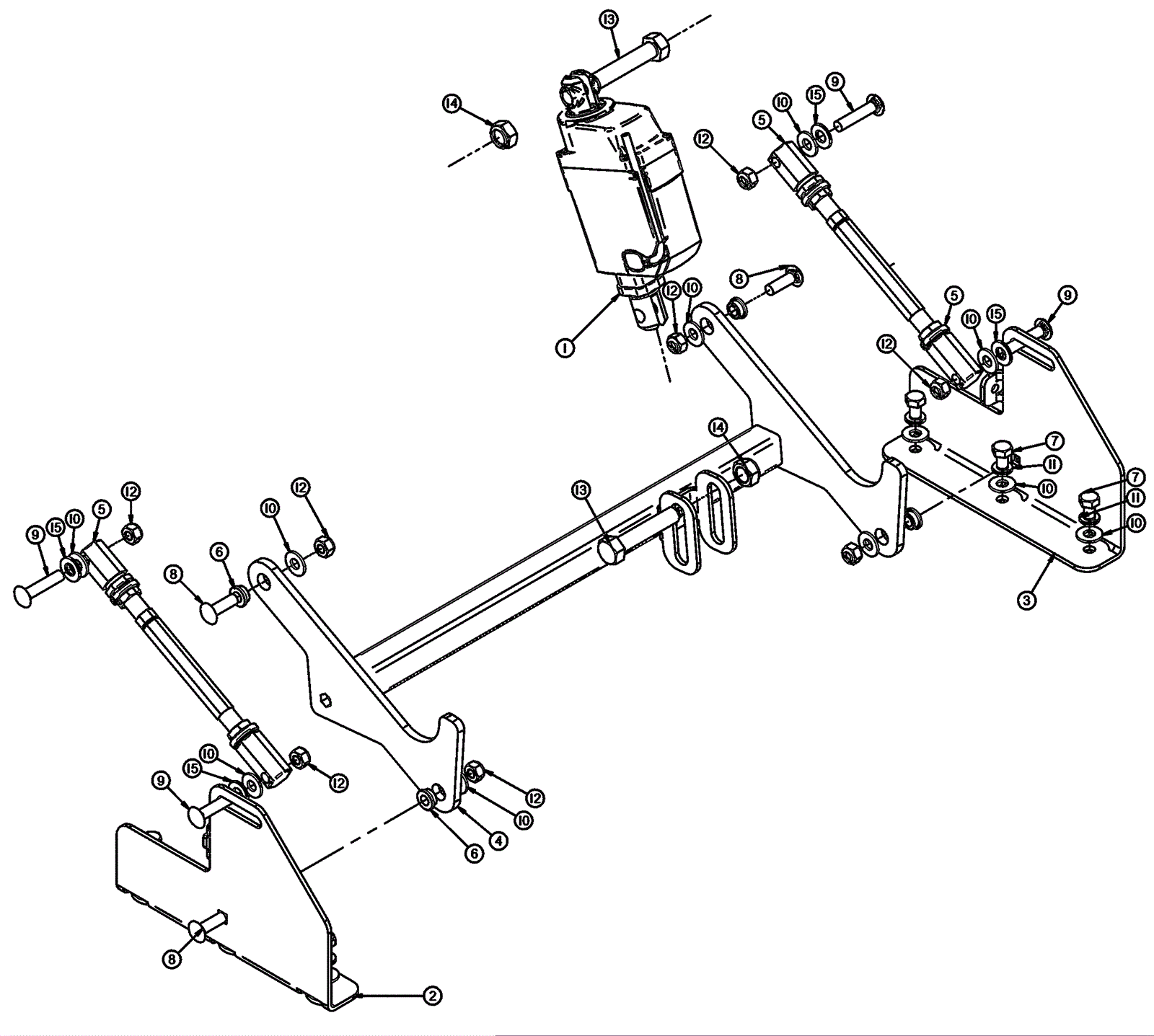

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-9851
|
24V actuator |
1 |
|
|
2 |
202-9859
|
Left hand deck lifting bracket |
1 |
|
|
3 |
202-9860
|
Right hand deck lifting bracket |
1 |
|
|
4 |
202-9861
|
Edge lateral arm |
1 |
|
|
5 |
202-3716
|
Adjustable lateral arm |
2 |
|
|
6 |
202-7656
|
Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S |
4 |
|
|
7 |
999-0981
|
Screw 5-16-18 x 1/2 hex head grade 5 zinc plated |
6 |
|
|
8 |
999-0252
|
Screw 5/16-18 x 1 carriage head grade 5 zinc |
4 |
|
|
9 |
999-1370
|
Bolt 5/16-18 x 1 1/2 carriage head stainless steel |
4 |
|
|
10 |
202-1201
|
Washer 5/16 uss |
14 |
|
|
11 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
6 |
|
|
12 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
8 |
|
|
13 |
999-9223
|
Screw M12-1.75 x 60 hex cap zinc |
2 |
|
|
14 |
999-1122
|
Nut M12-1.75 hex nylon insert lock stainless steel |
2 |
|
|
15 |
202-2210
|
Washer 3/8 x 3/4 flat nylon |
4 |
|
|
