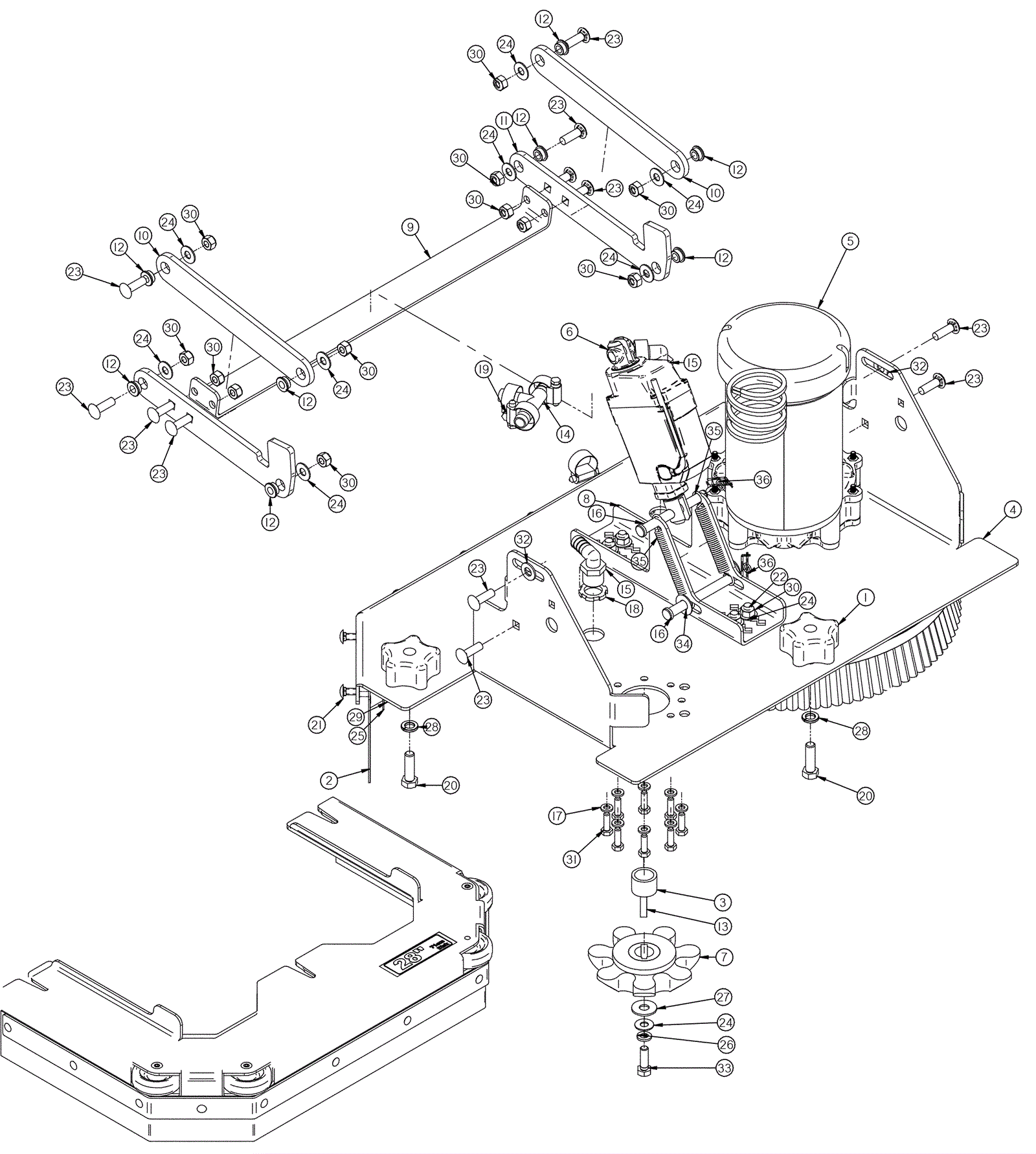

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
302-0042
|
Star knob |
3 |
|
|
2 |
202-6326
|
Curtain, Deck, Rear, 28 inch |
1 |
|
|
3 |
202-6418
|
Spacer, Driver |
2 |
|
|
4 |
302-0177
|
28 inch disk deck |
1 |
|
|
5 |
302-0093
|
24v motor |
2 |
|
|
6 |
202-9851
|
24V actuator |
1 |
|
|
7 |
202-9852
|
Brush driver |
2 |
|
|
8 |
302-0175
|
Lifting bracket for 26 and 28 inch disk |
1 |
|
|
9 |
302-0178
|
Lift arm cross bar |
1 |
|
|
10 |
202-9856
|
Lateral disk arm (short) |
2 |
|
|
11 |
202-9857
|
Lateral disk arm (dog leg) |
2 |
|
|
12 |
202-7656
|
Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S |
8 |
|
|
13 |
202-0331
|
Brush driver key (pkg of 2) |
2 |
|
|
14 |
202-0332
|
1/2 inch barbed tee |
1 |
|
|
15 |
202-0333
|
Elbow barb |
2 |
|
|
16 |
999-1633
|
Clevis pin 3/8 x 3 1/2 |
2 |
|
|
17 |
999-1049
|
Washer 1/4 split lock zinc plated |
16 |
|
|
18 |
999-0330
|
Nut 1/2-13 acorn brass |
4 |
|
|
19 |
202-0680
|
Hose clamp |
5 |
|
|
20 |
999-9237
|
Screw 3/8-16 x 1 1/4 hex cap |
3 |
|
|
21 |
999-9239
|
Bolt 1/4-20 x 1/2 carriage |
9 |
|
|
22 |
999-9069
|
Bolt 5/16-18 x 3/4 carriage head |
4 |
|
|
23 |
999-0252
|
Screw 5/16-18 x 1 carriage head grade 5 zinc |
12 |
|
|
24 |
202-1201
|
Washer 5/16 uss |
14 |
|
|
25 |
999-1288
|
Washer 1/4 x 1 OD fender stainless steel |
9 |
|
|
26 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
27 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
2 |
|
|
28 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
3 |
|
|
29 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
9 |
|
|
30 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
16 |
|
|
31 |
999-1304
|
Screw M6-1 x 16mm hex head zinc |
16 |
|
|
32 |
202-2210
|
Washer 3/8 x 3/4 flat nylon |
2 |
|
|
33 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
|
34 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
2 |
|
|
35 |
202-2208
|
Compression spring |
2 |
|
|
36 |
202-2036
|
Cotter pin |
2 |
|
|
