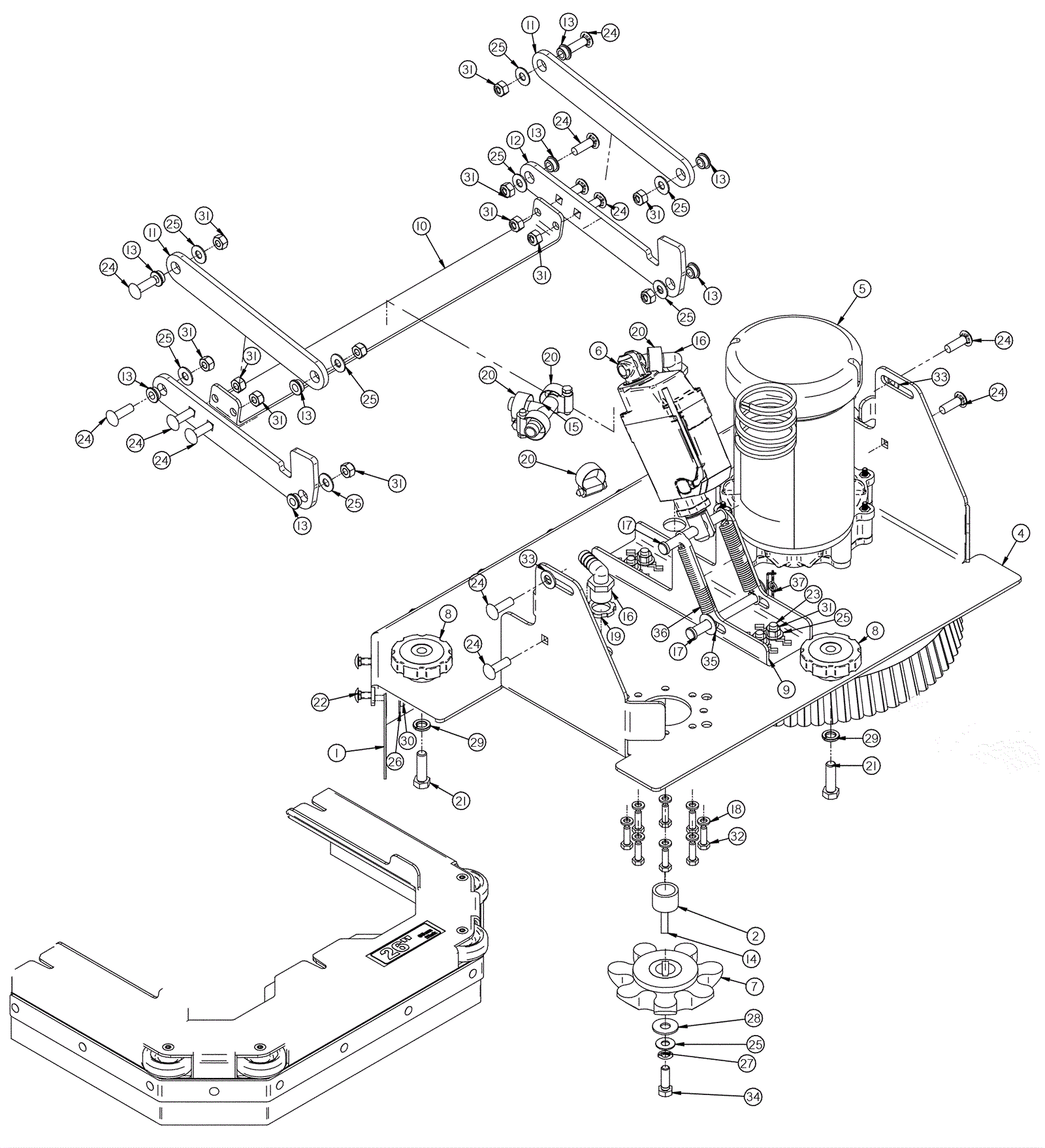

M26 26 inch Disk Scrub Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-6325 Curtain, Deck, Rear, 26 inch $33.88 1 usually ships 6-7 days
2 202-6418 Spacer, Driver $23.65 2 usually ships 6-7 days
4 302-0174 26 inch disk deck Call for price 1 usually ships 6-7 days
5 302-0093 24v motor $378.04 2 usually ships 6-7 days
6 202-9851 24V actuator $379.83 1 usually ships 6-7 days
7 202-9852 Brush driver $144.32 2 usually ships 6-7 days
8 202-9853 3/8-16 star knob $6.49 3 usually ships 6-7 days
9 302-0175 Lifting bracket for 26 and 28 inch disk Call for price 1 usually ships 6-7 days
10 302-0176 Lift arm cross bar Call for price 1 usually ships 6-7 days
11 202-9856 Lateral disk arm (short) $24.86 2 usually ships 6-7 days
12 202-9857 Lateral disk arm (dog leg) $50.27 2 usually ships 6-7 days
13 202-7656 Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S $12.87 8 usually ships 6-7 days
14 202-0331 Brush driver key (pkg of 2) $9.90 2 ships same day
15 202-0332 1/2 inch barbed tee $5.50 1 ships same day
16 202-0333 Elbow barb $5.50 2 ships same day
17 999-1633 Clevis pin 3/8 x 3 1/2 $4.31 2 ships same day
18 999-1049 Washer 1/4 split lock zinc plated $0.99 16 ships same day
19 999-0330 Nut 1/2-13 acorn brass $5.72 4 ships same day
20 202-0680 Hose clamp $5.50 5 usually ships 6-7 days
21 999-9237 Screw 3/8-16 x 1 1/4 hex cap $0.99 3 usually ships 19-32 days
22 999-9239 Bolt 1/4-20 x 1/2 carriage $0.99 9 usually ships 19-32 days
23 999-9069 Bolt 5/16-18 x 3/4 carriage head $0.99 4 usually ships 1-5 days
24 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 12 ships same day
25 202-1201 Washer 5/16 uss $5.50 14 usually ships 1-5 days
26 999-1288 Washer 1/4 x 1 OD fender stainless steel $0.99 9 ships same day
27 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
28 999-0659 Washer 3/8 medium split lock stainless steel $0.39 2 ships same day
29 999-0659 Washer 3/8 medium split lock stainless steel $0.39 3 ships same day
30 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 9 ships same day
31 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 16 ships same day
32 999-1304 Screw M6-1 x 16mm hex head zinc $0.99 16 usually ships 1-5 days
33 202-2210 Washer 3/8 x 3/4 flat nylon $5.50 2 usually ships 6-7 days
34 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 2 ships same day
35 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
36 202-2208 Compression spring $6.38 2 usually ships 6-7 days
37 202-2036 Cotter pin $5.50 2 usually ships 6-7 days
N/S 302-0173 Right hand 36V motor side broom Call for price 1 usually ships 6-7 days
