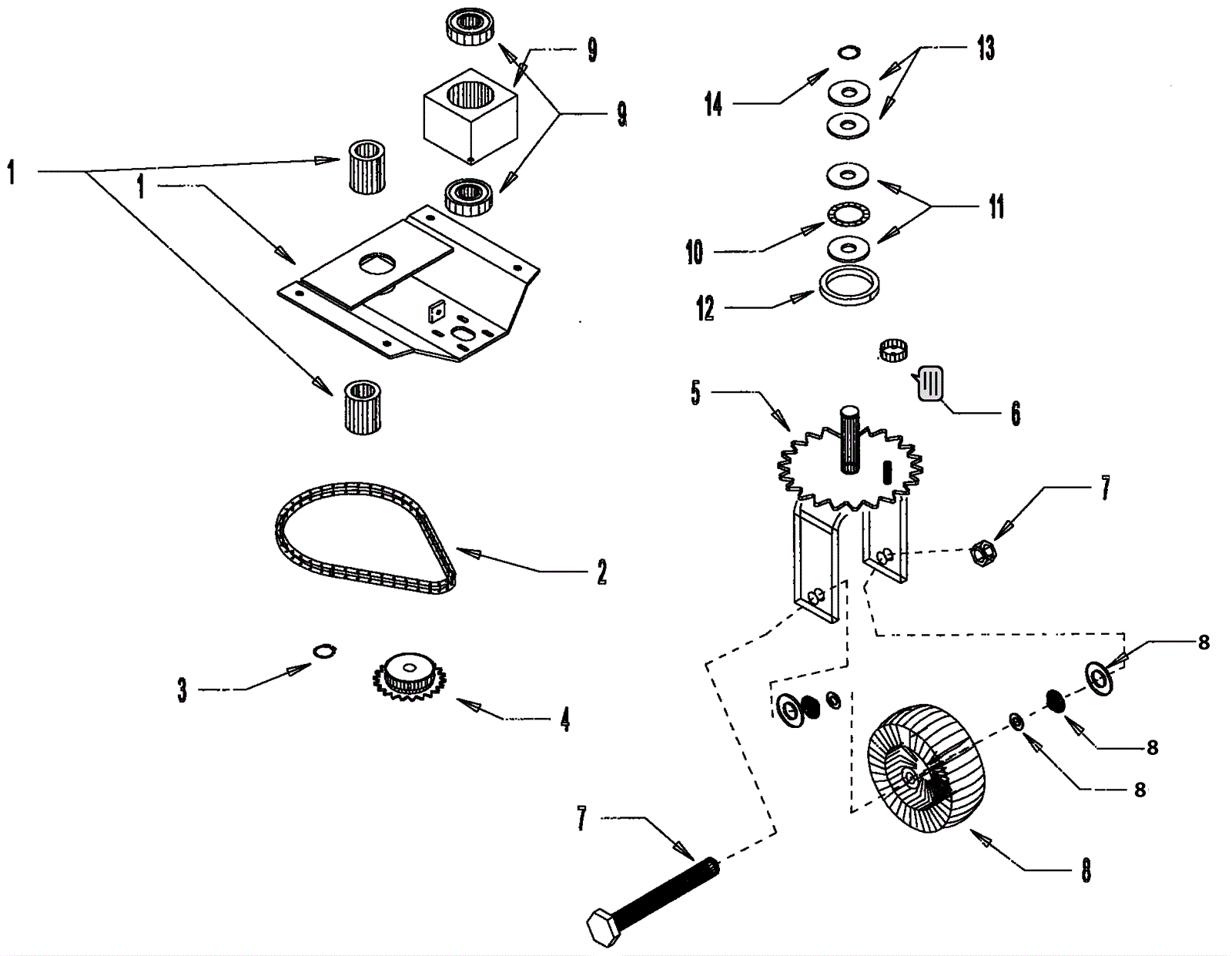

40 Steering Yoke Assembly

#PartDescriptionPriceReqNotesAvailability
1a 202-0144 Yoke bearing plate with bearing set $925.65 1 (with bearing set) usually ships 1-5 days
1b 202-0144 Yoke bearing plate with bearing set $925.65 1 (no bearing set) usually ships 1-5 days
1c 202-0146 Yoke plate bearing set $38.94 1 (installation requires pressing-in) usually ships 1-5 days
2 202-0147 Steering chain including master link $61.16 1 usually ships 1-5 days
3 202-0281 Snap ring $5.50 1 usually ships 8-12 days
4 202-0149 Steering small sprocket has 9 teeth $170.32 1 usually ships 1-5 days
5 202-0150 Steering yoke and big sprocket assembly $1,330.67 1 usually ships 1-5 days
6a 202-0151 Grommet $4.40 1 usually ships 8-12 days
6b 202-9961 Cap Call for price 1 usually ships 1-5 days
7a 202-0153 Wheel axle $18.70 1 usually ships 1-5 days
7b 999-1001 Nut 3/4-10 nylon insert lock zinc plated $1.51 1 usually ships 1-5 days
8a 202-0154 Front wheel with bearings, seals and washers (OBSOLETE) $1,841.85 1 usually ships 8-12 days
8b 202-0154 Front wheel with bearings, seals and washers (OBSOLETE) $1,841.85 1 (optional) usually ships 8-12 days
8c 202-0156 Wheel bearing w/ dust seal and thrust washer (pkg of 8) $157.96 2 usually ships 1-5 days
8d 202-0156 Wheel bearing w/ dust seal and thrust washer (pkg of 8) $157.96 2 usually ships 1-5 days
8e 202-4079 Bearing $4.62 2 usually ships 1-5 days
9a 202-0771 Bearing block $205.48 1 usually ships 8-12 days
9b 202-0160 Bearing $41.80 2 usually ships 8-12 days
10 202-0161 Thrust bearing $16.28 1 usually ships 1-5 days
11 202-1040 Washer $6.71 1 usually ships 8-12 days
12 202-0162 O-ring $6.71 1 usually ships 1-5 days
13 202-0488 Spacer ring $6.71 1 usually ships 8-12 days
14 997-2201 1 inch external snap ring $0.99 1 ships same day
