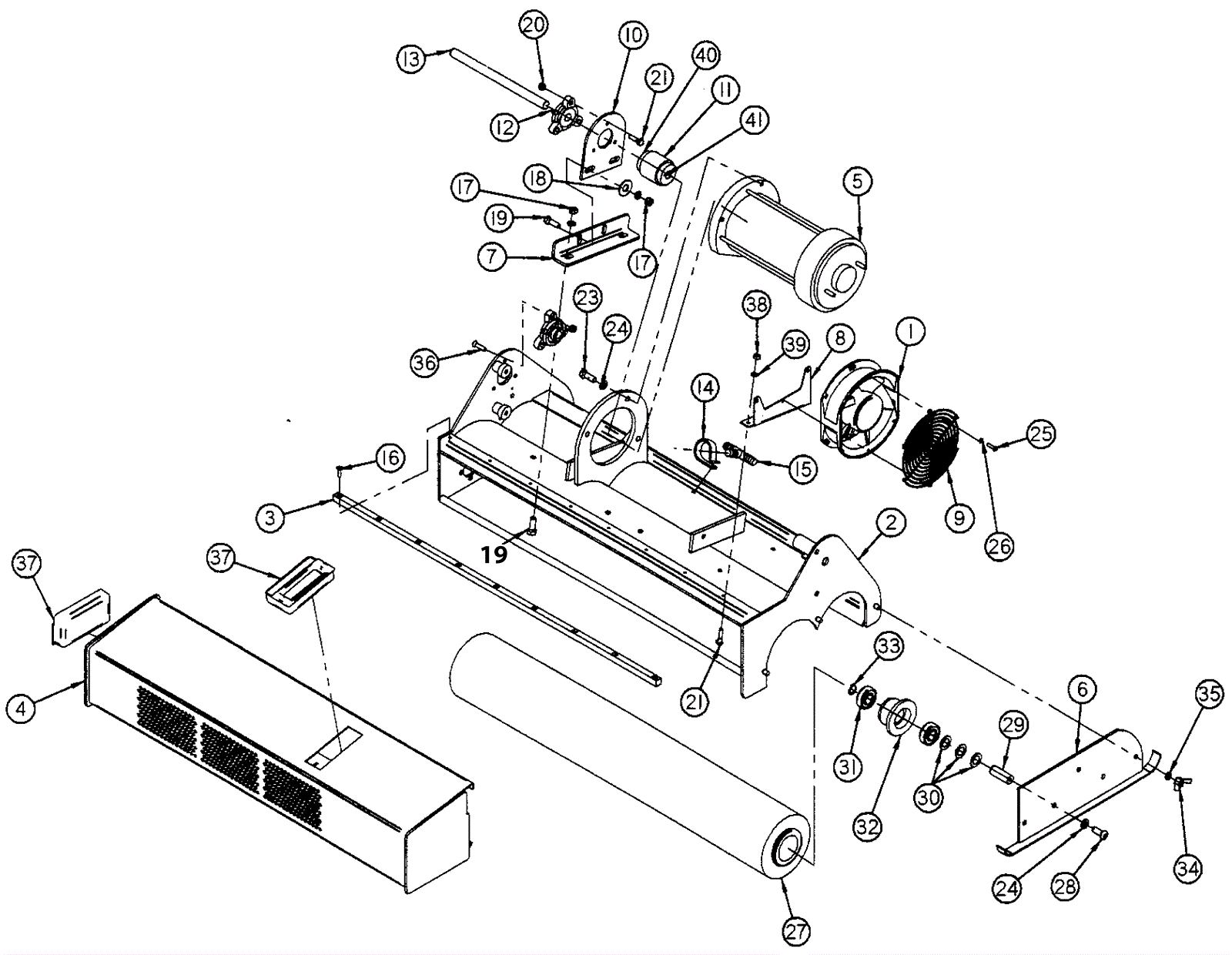

40 Cylindrical Scrub Deck Assembly-1

#PartDescriptionPriceReqNotesAvailability
1 202-0286 24V cooling fan $425.92 1 usually ships 1-5 days
2 202-0247 Cylindrical body $2,546.94 1 usually ships 1-5 days
3 202-0287 Hopper rail 32 inch (OBSOLETE) $66.99 1 usually ships 1-5 days
4 202-0288 Hopper with handles and curtain $331.98 1 usually ships 8-12 days
5a 202-0363 Scrub motor for cylindrical brush machines $600.49 1 usually ships 8-12 days
5b N/A Not available Call for price 1 (wire harness) usually ships 3-26 days
5c 202-2961 Terminal cover (black) $5.50 1 usually ships 1-5 days
6 202-0290 Cylindrical brush idler door $365.49 1 usually ships 8-12 days
7 202-0291 Bearing plate mount $87.78 1 usually ships 1-5 days
8 202-0292 Fan mount $214.28 1 usually ships 1-5 days
9 202-0293 Fan guard $19.80 1 usually ships 1-5 days
10 202-0294 Bearing plate $12.87 1 usually ships 1-5 days
11 202-0295 Coupling $310.53 1 usually ships 8-12 days
12 202-0296 Driveshaft bearing $141.35 2 usually ships 8-12 days
13 202-0297 Driveshaft $167.86 1 usually ships 8-12 days
14 202-0846 Rubber loop clamp $5.50 1 usually ships 1-5 days
15a 202-0099 Tee barb $5.50 1 usually ships 1-5 days
15b 202-0299 5/8 inch PVC hose (clear) (sold by the foot) $5.78 1 (sold by the foot) usually ships 8-12 days
16 999-1189 Screw 10-32 x 3/4 flat head phillips stainless steel $0.99 9 ships same day
17 999-0593 Nut 5/16-18 hex stainless steel $0.99 4 ships same day
18 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
19 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 4 ships same day
20 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
21 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 3 ships same day
23 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 3 ships same day
24 999-0659 Washer 3/8 medium split lock stainless steel $0.39 3 ships same day
25 202-1085 10-32 x 3/4 Round Pan Head $5.50 2 usually ships 8-12 days
26 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
27a 202-2276 32 inch Tampico cylidnrical brush $201.96 2 (tampico) usually ships 1-5 days
27b 202-0301 32 inch Nylon scrubbing brush - CYLINDRICAL $277.53 2 (soft nylon) usually ships 8-12 days
27c 202-0302 32 inch Light grit scrubbing brush - CYLINDRICAL $314.05 2 (light grit) usually ships 1-5 days
27d 202-0303 32 inch Medium grit scrubbing brush - CYLINDRICAL $314.05 2 (mid grit) usually ships 8-12 days
27e 202-2283 32 inch Extra heavy grit scrubbing brush - CYLINDRICAL $313.50 2 (tough grit) ships same day
28 999-1003 Bolt 3/8-16 x 1 button head socket cap stainless steel $2.06 1 ships same day
29 202-0307 Idler assembly and shaft $163.86 1 usually ships 8-12 days
30 202-1279 Washer 17mm nylon flat $6.71 6 usually ships 8-12 days
31 202-0307 Idler assembly and shaft $163.86 2 usually ships 8-12 days
32 202-0307 Idler assembly and shaft $163.86 2 usually ships 8-12 days
33 999-0859 Snap ring 17mm $0.99 2 ships same day
34 999-1012 Nut 5/16-18 wing stainless steel $1.98 3 ships same day
35 999-0553 Washer 5/16 medium split lock stainless steel $0.99 3 ships same day
36 999-1345 Screw 1/4-20 x 1 flat head phillips stainless steel $0.99 3 ships same day
37 202-0308 Handle $23.10 2 usually ships 8-12 days
38 999-0609 Nut 1/4-20 hex stainless steel $0.99 9 ships same day
39 999-0632 Washer 1/4 split lock stainless steel $0.99 9 ships same day
40 164-1029 Square keyway $13.22 2 usually ships 18-33 days
