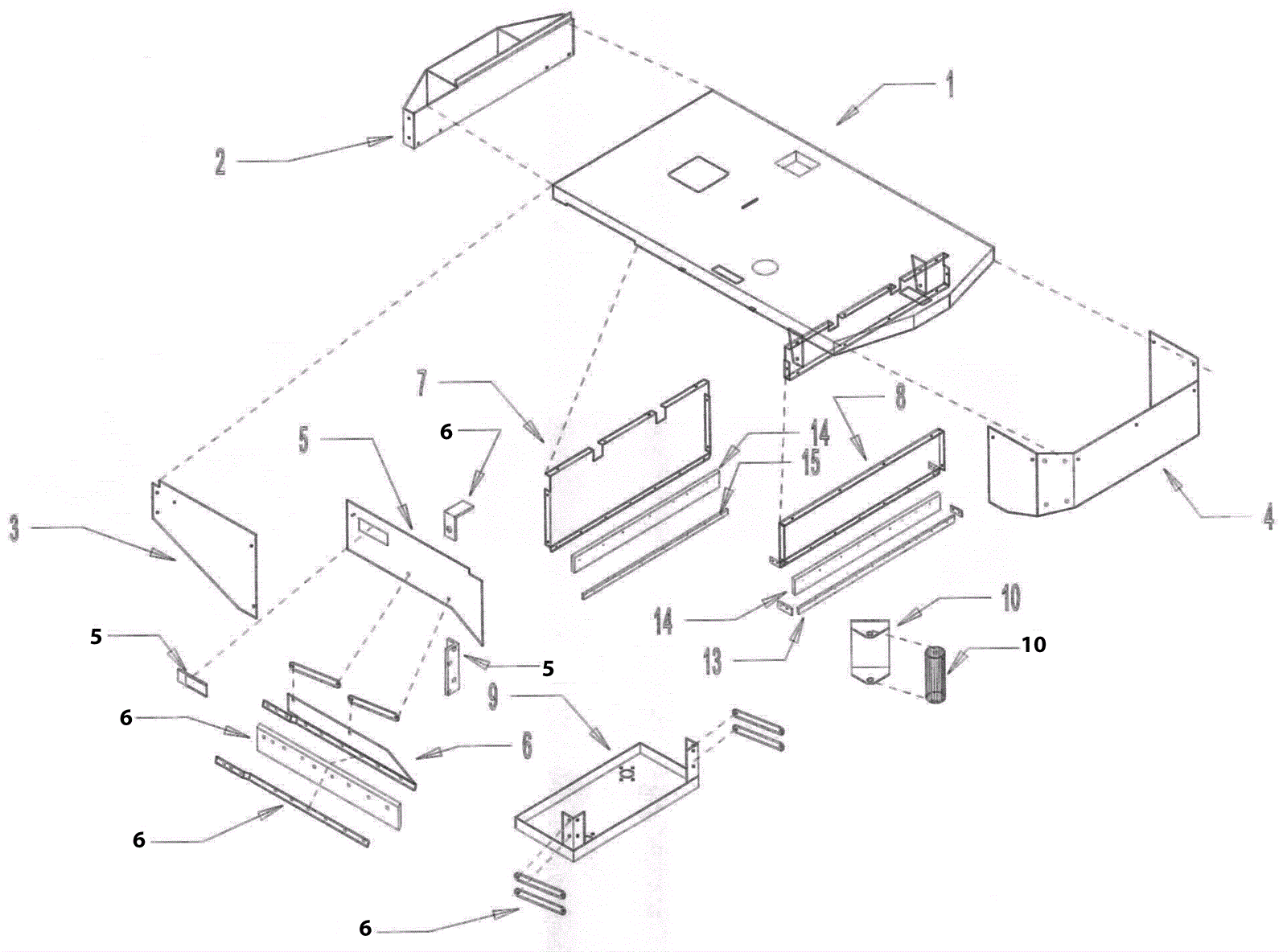

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
202-0397
|
Mainframe (OBSOLETE) |
$1,439.24
|
1 |
|
usually ships 1-5 days |
2 |
202-0398
|
Rear bumper |
$892.32
|
1 |
|
usually ships 1-5 days |
3 |
202-0399
|
Quarter panel |
$135.63
|
2 |
|
usually ships 1-5 days |
4 |
202-0400
|
New style front bumper fits on machines |
$324.50
|
1 |
|
usually ships 1-5 days |
5a |
202-0401
|
Side door panel |
$163.79
|
1 |
|
usually ships 1-5 days |
5b |
202-0401
|
Side door panel |
$163.79
|
1 |
|
usually ships 1-5 days |
5c |
202-0403
|
Hinge |
$25.41
|
2 |
|
usually ships 8-13 days |
5d |
202-0404
|
Latch |
$51.04
|
2 |
|
usually ships 8-13 days |
6a |
202-0405
|
Righthand wiper |
$260.04
|
1 |
|
usually ships 1-5 days |
6b |
202-0406
|
Lefthand wiper |
$260.04
|
1 |
|
usually ships 1-5 days |
6c |
202-0324
|
Scrub head lateral arm |
$27.83
|
4 |
|
usually ships 1-5 days |
6d |
202-0407
|
Wiper blade mounting strip (OBSOLETE) |
$85.69
|
2 |
|
usually ships 1-5 days |
6e |
202-0408
|
Wiper lifting bracket |
$21.34
|
2 |
|
usually ships 8-13 days |
6f |
202-0409
|
Wiper blade gum rubber standard brown (pkg of 2) |
$114.07
|
2 |
|
usually ships 1-5 days |
6g |
202-0439
|
Side wiper blades neoprene (pkg of 2) |
$129.69
|
2 |
(optional) |
usually ships 1-5 days |
6h |
202-9938
|
Wiper blade bolt |
Call for price
|
1 |
|
usually ships 1-5 days |
7 |
202-0412
|
Rear splash panel |
$508.20
|
1 |
|
usually ships 1-5 days |
8 |
202-0413
|
Front splash panel |
$328.35
|
1 |
|
usually ships 1-5 days |
9 |
202-0309
|
Scrubhead |
$631.95
|
1 |
(disk machines only) |
usually ships 8-13 days |
10a |
202-0414
|
Roller and bracket assembly complete |
$333.85
|
1 |
(includes 10b-10c) |
usually ships 8-13 days |
10b |
202-0415
|
Roller bracket |
$25.19
|
2 |
|
usually ships 8-13 days |
10c |
202-0416
|
Guide roller |
$111.10
|
2 |
|
usually ships 8-13 days |
13a |
202-0417
|
Front splash curtain holddown bar set |
$229.79
|
1 |
|
usually ships 1-5 days |
13b |
202-0418
|
Long bar |
$55.44
|
1 |
|
usually ships 1-5 days |
13c |
202-0419
|
Short bar |
$48.08
|
2 |
|
usually ships 1-5 days |
14 |
202-0420
|
Splash curtain set front and rear curtains (OBSOLETE) |
$17.60
|
1 |
|
usually ships 8-13 days |
15 |
202-0421
|
Rear splash curtain holddown bar |
$40.59
|
1 |
|
usually ships 1-5 days |
N/S |
202-0411
|
1 inch wide bumper strip |
$28.16
|
8 ft |
|
usually ships 1-5 days |
N/S |
202-0377
|
Label set for controls |
$30.36
|
1 |
|
usually ships 1-5 days |
