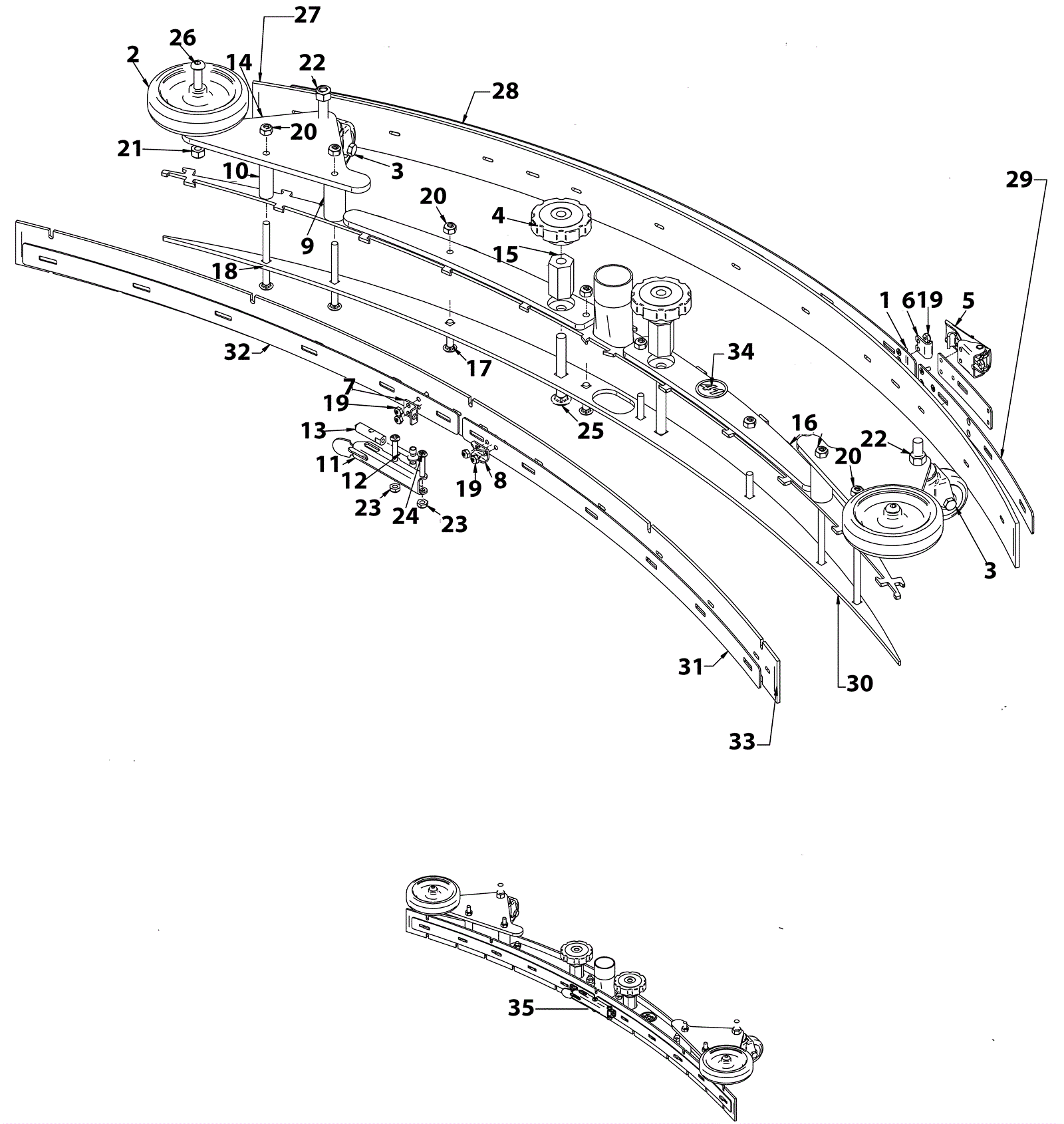

S20 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-9245 Screw 6-32 x 38 flat head phillips $0.99 9 usually ships 12-18 days
2 202-5079 4 inch wheel $9.79 2 usually ships 8-12 days
3 202-3590 2 inch caster (gray) $52.58 2 usually ships 8-12 days
4 202-9853 3/8-16 star knob $6.49 2 usually ships 8-12 days
5 202-9913 Squeegee latch $30.14 1 usually ships 8-12 days
6 202-3648 Band clip Call for price 1 usually ships 8-12 days
7 202-3649 Front band clip Call for price 1 usually ships 8-12 days
8 202-9914 Front band clip $5.50 1 usually ships 8-12 days
9 202-9915 PVC tube $5.50 2 usually ships 8-12 days
10 202-9916 PVC tube $5.50 2 usually ships 8-12 days
11 202-3652 Latch body $39.31 1 usually ships 8-12 days
12 202-9917 Eye bolt 1/4-20 x 3 Call for price 1 usually ships 8-12 days
13 202-9918 Ram tip Call for price 1 usually ships 8-12 days
14 202-9919 Squeegee caster bracket $30.47 2 usually ships 8-12 days
15 202-9920 Standoff $21.01 2 usually ships 8-12 days
16 202-3670 45 inch squeegee weight $368.69 2 usually ships 8-12 days
17 999-1443 Bolt 1/4-20 x 1 1/4 carriage stainless steel $1.03 4 ships same day
18 999-9246 Bolt 1/4-20 x 3 carriage zinc $1.41 4 usually ships 12-18 days
19 999-6688 Nut 6-32 hex nylon insert lock stainless steel $0.99 9 usually ships 12-18 days
20 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 8 ships same day
21 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
22 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 2 ships same day
23 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
24 999-0986 Screw 10-32 x 1 round pan head stainless steel $0.99 2 ships same day
25 999-0626 Screw 3/8-16 x 3 carriage head stainless steel $5.50 2 ships same day
26 999-1913 Screw 5/16-18 x 1 3/4 button head socket cap stainless steel $2.90 2 ships same day
27a 202-3663 Squeegee blade 33 inch linatex rear $27.17 1 usually ships 8-12 days
27b 302-0165 33 inch rear squeegee blade urethane $57.81 1 usually ships 1-5 days
27c 202-9921 Rear squeegee blade (nanorade) $24.64 1 usually ships 8-12 days
28 202-3672 Squeegee band 33 inch rear with latch $128.48 1 usually ships 8-12 days
29 202-3672 Squeegee band 33 inch rear with latch $128.48 1 usually ships 8-12 days
30 202-9923 33 inch squeegee body bottom $76.45 1 usually ships 8-12 days
31 202-3676 Squeegee band 33 inch front with latch $128.04 1 usually ships 8-12 days
32 202-3676 Squeegee band 33 inch front with latch $128.04 1 usually ships 8-12 days
33a 202-3691 Squeegee blade 33 inch linatex front $35.49 1 usually ships 8-12 days
33b 202-9694 Squeegee blade 33 inch urethane front $28.27 1 usually ships 8-12 days
33c 202-9924 33 inch front squeegee blade (nanorade) $19.69 1 usually ships 8-12 days
34 202-9922 33 inch squeegee decal $5.50 1 usually ships 8-12 days
35 202-9925 33 inch squeegee assembly with nanorade blades $846.82 1 usually ships 8-12 days
