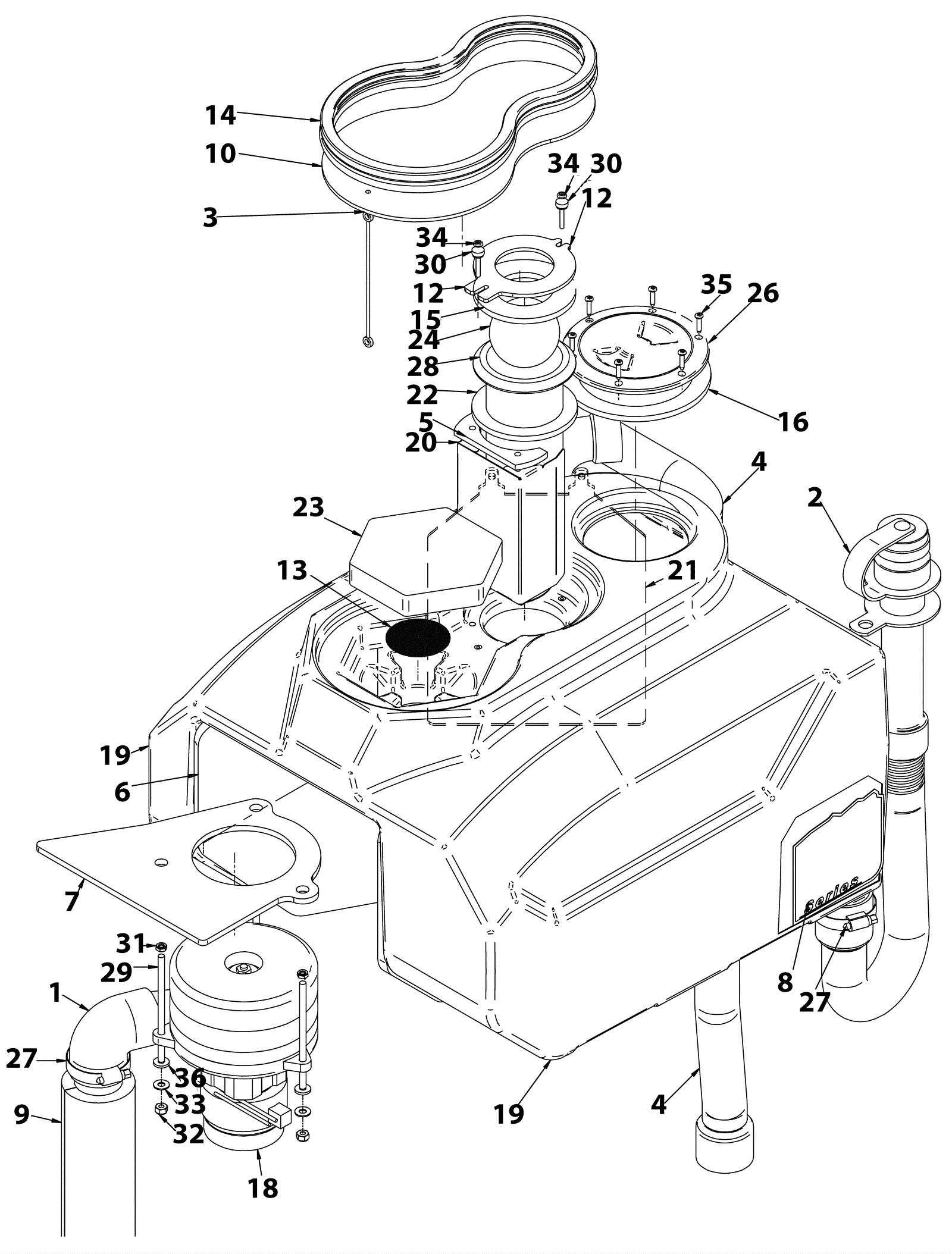

S20 Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-5376 1 1/2 inch elbow $6.40 1 usually ships 3-11 days
2 202-3582 Drain hose assembly $112.19 1 ships same day
3 202-0902 Lanyard $5.80 1 ships same day
4 203-7216 Vacuum hose $30.44 1 usually ships 3-11 days
5 202-9878 Tank gasket $16.20 1 usually ships 3-11 days
6 202-9879 Vacuum motor insulation $26.73 1 usually ships 3-11 days
7 202-9880 Vacuum motor gasket $36.10 1 usually ships 3-11 days
8 202-9881 S series decal $13.00 1 usually ships 3-11 days
9 202-9882 Vac muffler $55.50 1 usually ships 3-11 days
10 202-9883 Vac cover $123.88 1 usually ships 3-11 days
12 202-9886 Ball float top $25.10 1 usually ships 3-11 days
13 N/A Not available Call for price 1 (vac screen) usually ships 3-26 days
14 202-9887 Push-on rubber gasket $26.60 1 usually ships 3-11 days
15 202-9888 Ball float gasket $20.90 1 usually ships 3-11 days
16 202-9889 4 inch lid gasket $36.70 1 usually ships 3-11 days
18 202-9891 36V 3 stage vacuum motor $139.50 1 usually ships 3-11 days
19 202-9892 Recovery tank Call for price 1 usually ships 3-11 days
20 202-9893 Baffle $43.50 1 usually ships 3-11 days
21 202-9894 Tank curtain $46.70 1 usually ships 3-11 days
22 202-9895 Strainer gasket Call for price 1 usually ships 3-11 days
23 202-7033 Vac Box Filter $5.00 1 ships same day
24 202-0232 Float shut-off ball $10.80 1 usually ships 3-11 days
26 202-8038 4 inch Clear Access Port $71.20 1 usually ships 3-11 days
27 997-2011 Hose clamp $2.67 2 ships same day
28 202-0612 Shutoff ball retainer screen $116.20 1 usually ships 1-5 days
29 N/A Not available Call for price 3 (1/4-20 x 5 threaded stud) usually ships 3-26 days
30 N/A Not available Call for price 2 (8-32 thumb nut) usually ships 3-26 days
31 202-2067 Nut 10-32 keps $5.00 3 usually ships 3-11 days
32 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
33 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 3 ships same day
34 999-1918 Screw #8-32 x 1 1/4 phillips pan head SS $0.99 2 usually ships 1-5 days
35 999-0870 Screw 8 x 3/4 pan head phillips stainless steel $0.99 6 ships same day
36 202-1986 Washer 3/8 x 1-1/8 x 3/32 neoprene thread $5.00 3 usually ships 3-11 days
N/S 202-9885 Vac cover cooling fixture Call for price 1 usually ships 3-11 days
N/S 202-9890 4 inch clean out lid Call for price 1 usually ships 3-11 days
N/S 202-1487 Latch $22.90 1 usually ships 3-11 days
