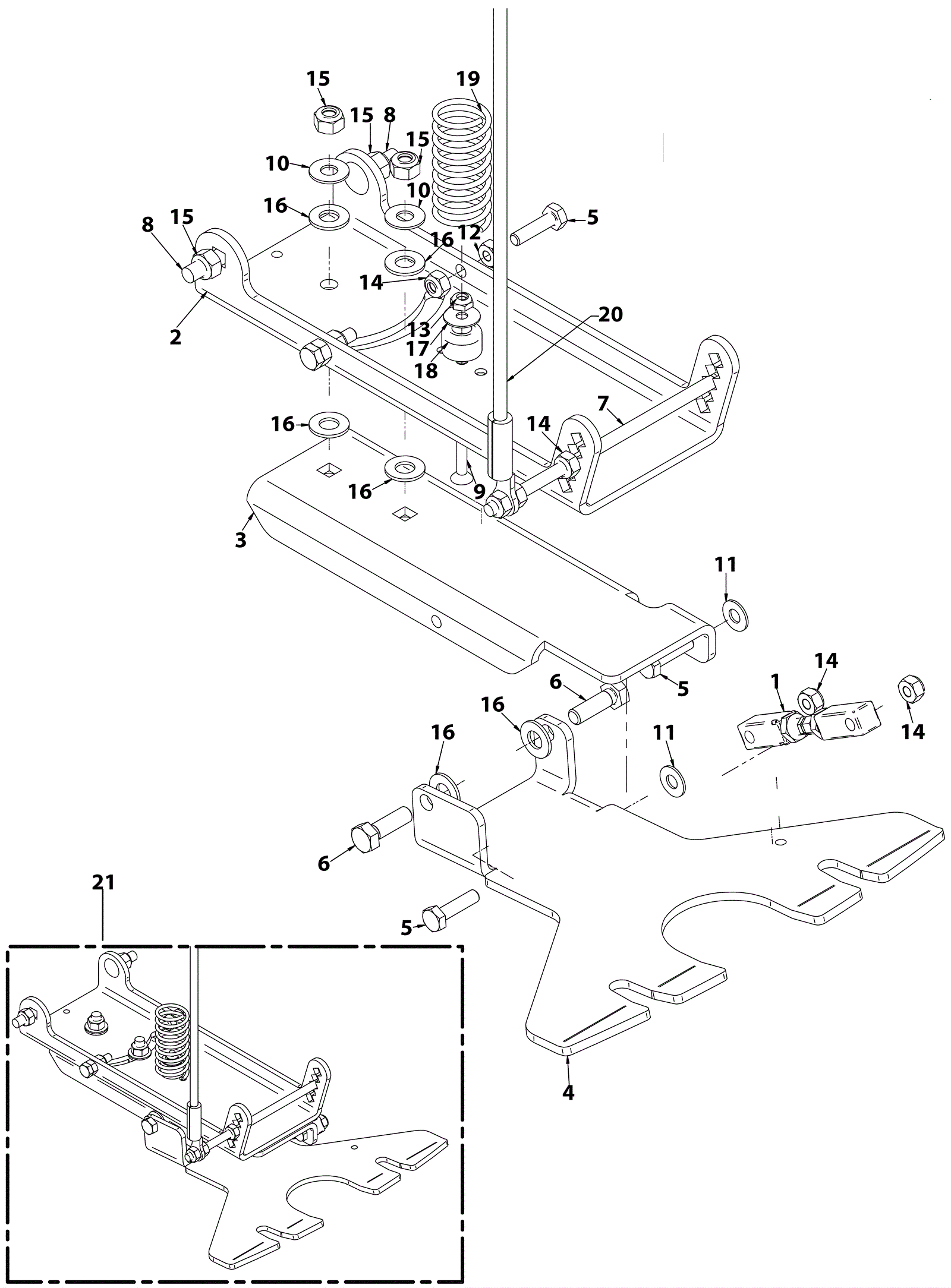

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
202-6432
|
Body, Adjustable Lateral Arm Assy |
$78.40
|
1 |
|
usually ships 3-11 days |
2 |
202-9841
|
Squeegee swing plate |
$73.80
|
1 |
|
usually ships 3-11 days |
3 |
202-9842
|
Squeegee trail arm |
$94.40
|
1 |
|
usually ships 3-11 days |
4 |
202-9843
|
Triangle plate |
$75.70
|
1 |
|
usually ships 3-11 days |
5 |
999-9072
|
Bolt 1/4-20 x 1 hex head cap |
$7.32
|
4 |
|
ships same day |
6 |
999-0031
|
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
$0.99
|
2 |
|
ships same day |
7 |
999-9236
|
Bolt 1/4-20 x 6 carriage head zinc plated |
$1.63
|
4 |
|
usually ships 11-24 days |
8 |
999-0252
|
Screw 5/16-18 x 1 carriage head grade 5 zinc |
$0.99
|
4 |
|
ships same day |
9 |
999-9235
|
Screw #10-32 x 1 flat head phillips zinc plated |
$0.99
|
1 |
|
usually ships 11-24 days |
10 |
202-1201
|
Washer 5/16 uss |
$5.00
|
2 |
|
usually ships 1-5 days |
11 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
$0.99
|
2 |
|
ships same day |
12 |
999-0190
|
Nut 1/4-20 hex plain finish |
$0.99
|
2 |
|
ships same day |
13 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
$0.99
|
1 |
|
ships same day |
14 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
$0.99
|
7 |
|
ships same day |
15 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
$0.99
|
6 |
|
ships same day |
16 |
202-2210
|
Washer 3/8 x 3/4 flat nylon |
$5.00
|
6 |
|
usually ships 3-11 days |
17 |
202-3316
|
Washer flat stainless steel |
$5.00
|
1 |
|
usually ships 3-11 days |
18 |
202-3275
|
Rubber bumper |
$5.00
|
1 |
|
usually ships 3-11 days |
19 |
202-9844
|
Spring |
$5.00
|
1 |
|
usually ships 3-11 days |
20a |
202-9845
|
23-1/4 squeegee lift cable (black) |
$31.14
|
1 |
(for M series) |
usually ships 3-11 days |
20b |
202-9846
|
25 inch squeegee lift cable (black) |
$20.66
|
1 |
(for L series) |
usually ships 3-11 days |
21 |
202-9929
|
Squeegee trail arm assembly |
$207.60
|
1 |
(includes 1-19) |
usually ships 3-11 days |
