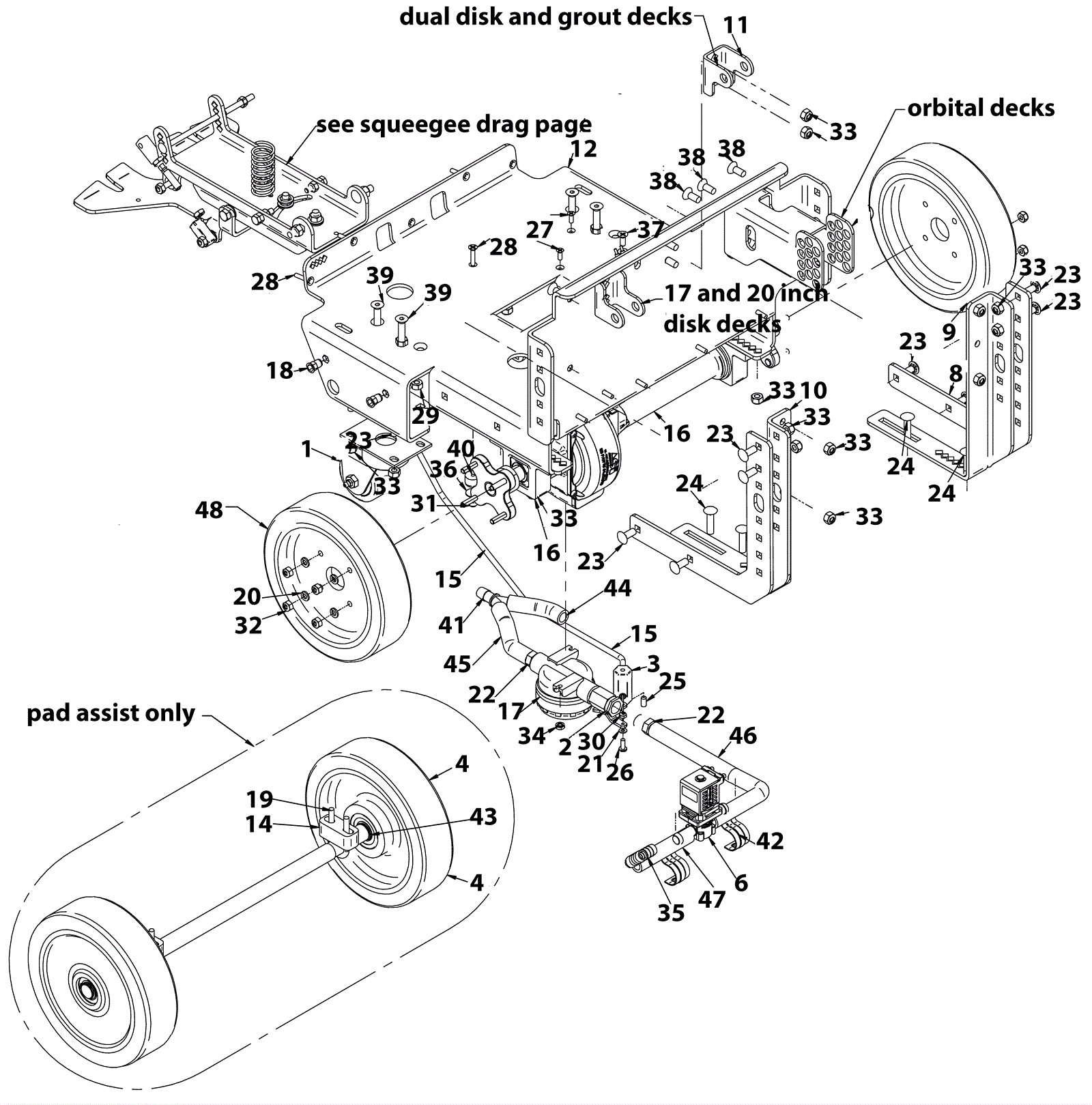

S20 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-5064 Caster wheel $109.19 2 ships same day
2 202-5363 3/8 inch ball valve $42.80 1 usually ships 3-11 days
3 202-5567 Cable guide $63.70 1 usually ships 1-5 days
4 202-4149 Tire (black) $125.80 2 (pad assist only) usually ships 3-11 days
6 202-6246 Solenoid,24V,3/8 inchNPTx3/8 inch $129.00 1 usually ships 3-11 days
7 202-9829 Lifting bracket $75.10 2 usually ships 3-11 days
8 202-9830 Frame brace $254.90 2 usually ships 3-11 days
9 202-9831 Left hand frame bracket $36.05 1 usually ships 3-11 days
10 202-9832 Right hand frame bracket $36.05 1 usually ships 3-11 days
11 202-9833 Upper actuator bracket $19.70 3 usually ships 3-11 days
12 202-9834 Main frame $378.90 1 usually ships 3-11 days
14 202-9836 Axle spacer $5.00 2 (pad assist only) usually ships 3-11 days
15 202-9837 Solution valve cable $112.40 1 usually ships 3-11 days
16 202-9838 24V transaxle Call for price 1 usually ships 3-11 days
17 202-3234 Inline filter $73.50 1 usually ships 3-11 days
18 202-5284 Nut 1/4-20 hex crimp long $5.00 4 usually ships 1-5 days
19 999-0917 U bolt $7.90 2 (pad assist only) usually ships 11-24 days
20 999-1049 Washer 1/4 split lock zinc plated $0.99 8 ships same day
21 999-1215 Washer #6 SAE flat zinc plated $0.99 1 ships same day
22 202-3236 Threaded barb $5.00 2 usually ships 3-11 days
23 999-9069 Bolt 5/16-18 x 3/4 carriage head $0.99 14 usually ships 1-5 days
24 999-1334 Bolt 5/16-18 x 1 1/4 carriage head stainless steel $1.39 4 usually ships 1-5 days
25 999-1468 Screw 1/4-20 x 1/2 knurled point set alloy steel $0.99 1 ships same day
26 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated $0.99 1 ships same day
27 202-9285 Screw,PFHM,#10-32x1/2 inch Zinc $5.00 2 usually ships 3-11 days
28 999-9235 Screw #10-32 x 1 flat head phillips zinc plated $0.99 11 usually ships 11-24 days
30 999-6688 Nut 6-32 hex nylon insert lock stainless steel $0.99 1 usually ships 11-24 days
31 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 1 ships same day
32 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 12 ships same day
33 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 31 ships same day
34 202-2067 Nut 10-32 keps $5.00 2 usually ships 3-11 days
35 202-4070 90 degree barbed elbow $4.00 1 usually ships 1-5 days
36 202-3316 Washer flat stainless steel $5.00 1 usually ships 3-11 days
37 999-0990 Screw 1/4-20 x 5/8 flat head phillips stainless steel $0.99 1 ships same day
38 999-1258 Screw 5/16-18 x 3/4 flat head phillips stainless steel $1.51 8 ships same day
39 202-9839 Screw 5/16-18 x 4 1/4 flat head socket cap screw zinc Call for price 4 usually ships 3-11 days
40 202-3275 Rubber bumper $5.00 1 usually ships 3-11 days
41 202-3239 Tee $9.80 1 usually ships 3-11 days
42 202-9642 3/4 inch clamp zinc $5.00 2 usually ships 3-11 days
43 202-5330 Retaining ring $5.00 4 (pad assist only) usually ships 3-11 days
44 202-9840 1/2 inch ID x 5 foot clear hose $34.64 1 usually ships 3-11 days
45 202-9840 1/2 inch ID x 5 foot clear hose $34.64 1 usually ships 3-11 days
46 202-9840 1/2 inch ID x 5 foot clear hose $34.64 1 usually ships 3-11 days
47 202-9840 1/2 inch ID x 5 foot clear hose $34.64 1 usually ships 3-11 days
48a 202-9827 8 inch poly tire (grey) $72.50 1 (solid grey) usually ships 3-11 days
48b 202-9828 8 inch poly tire (black) $63.20 1 (solid black) usually ships 3-11 days
N/S 202-9835 Axle $178.00 1 usually ships 3-11 days
N/S 999-0069 Nut 5/16-18 hex $0.99 8 ships same day
