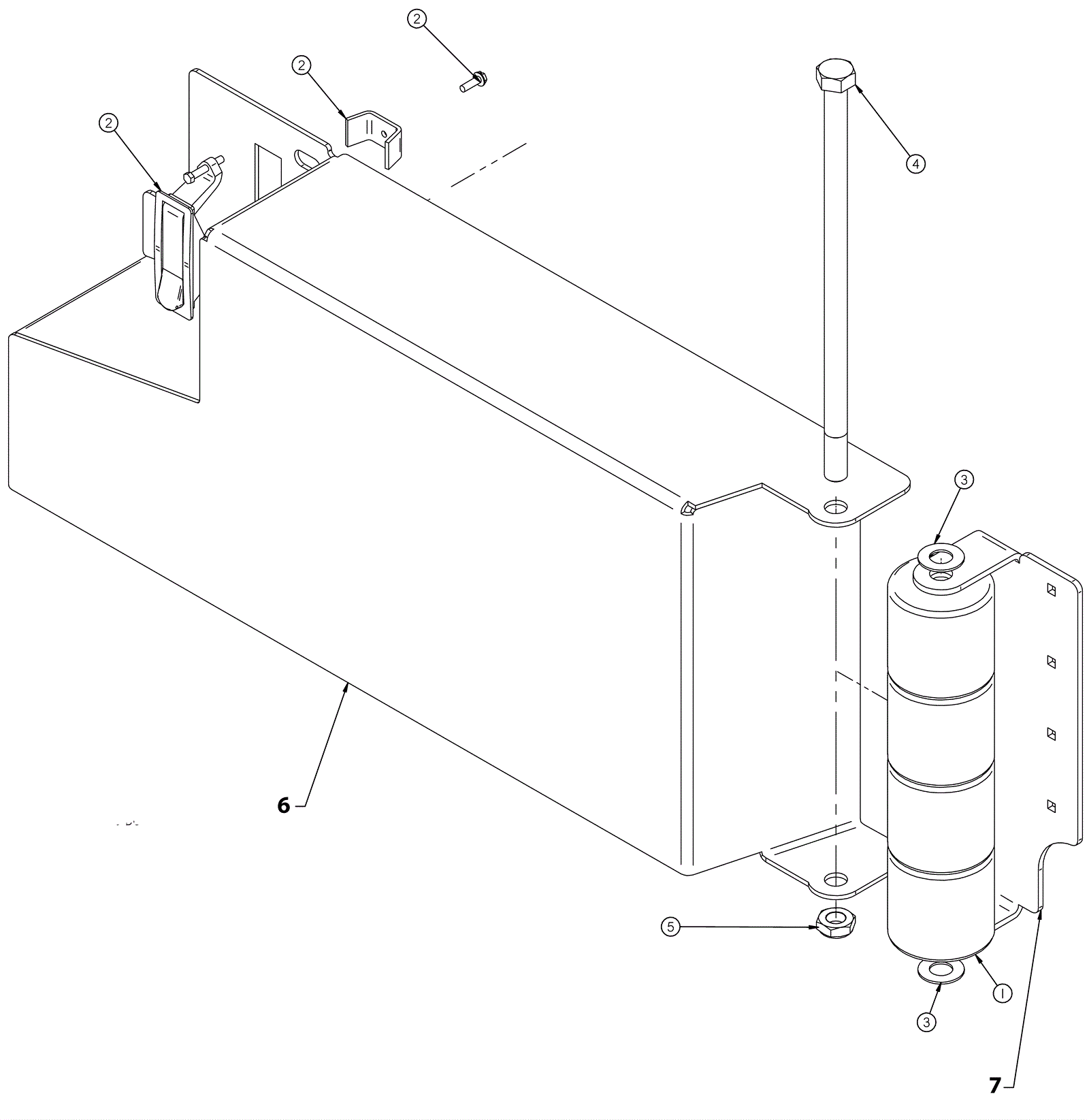

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-0756
|
Guide roller |
4 |
|
|
2 |
202-0404
|
Latch |
1 |
|
|
3 |
202-1058
|
Washer 5/8 teflon |
2 |
|
|
4 |
999-0989
|
Bolt 5/8-11 x 13 hex head grade 5 zinc plated |
1 |
|
|
5 |
999-0968
|
Nut 5/8-11 nylon insert jam lock zinc plated |
1 |
|
|
6a |
202-9813
|
Right hand door |
1 |
|
|
6b |
202-9814
|
Left hand door |
1 |
|
|
7a |
202-9815
|
Right hand hinge bracket |
1 |
|
|
7b |
202-9816
|
Left hand hinge bracket |
1 |
|
|
