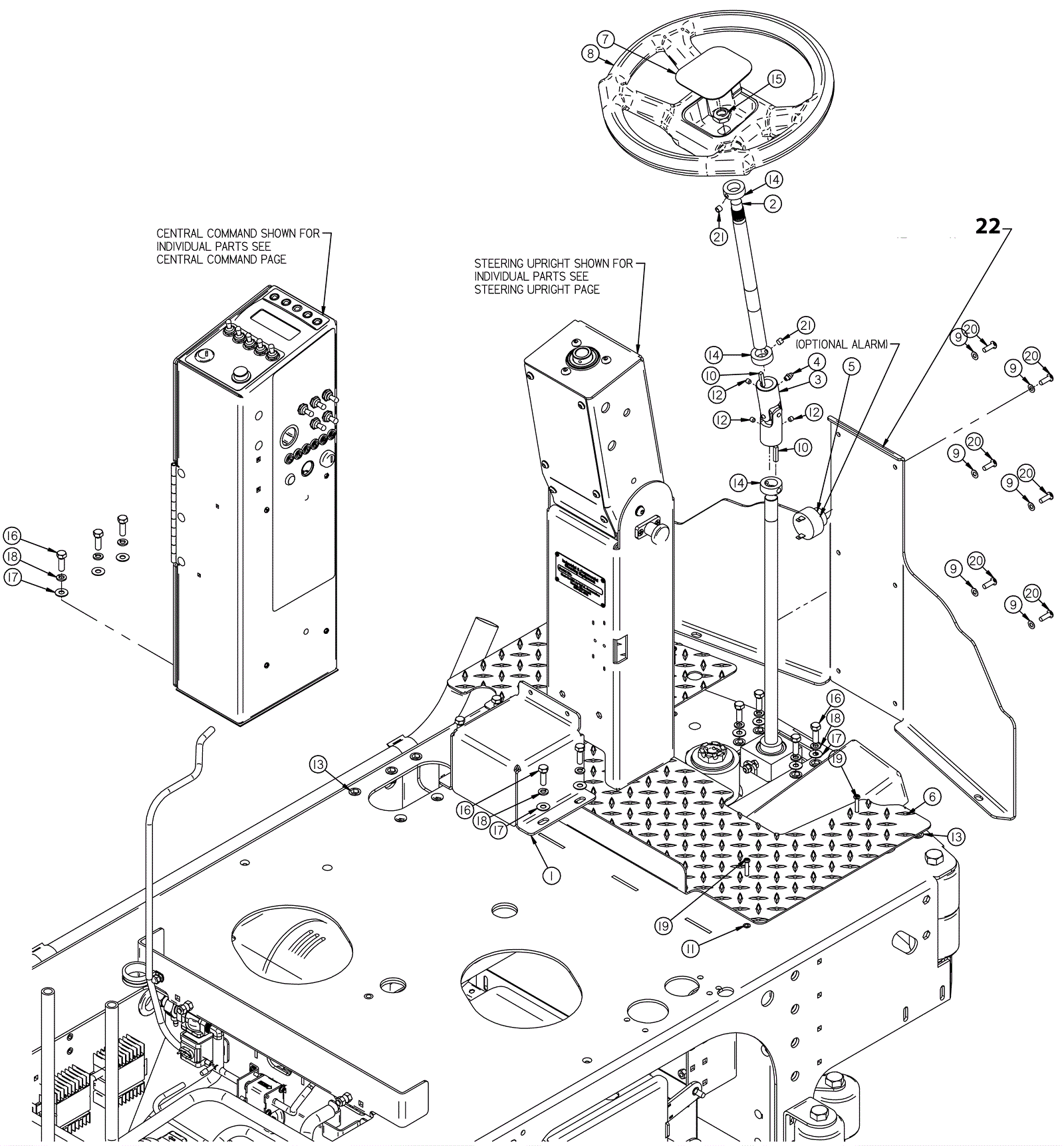

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-3318
|
Drive cover |
1 |
|
|
2 |
202-0761
|
Upper steering shaft |
1 |
|
|
3 |
202-0760
|
U-joint |
1 |
|
|
4 |
202-2404
|
Fitting |
1 |
|
|
6 |
202-9810
|
Non skid floor plate |
1 |
|
|
7 |
202-0773
|
Steering cover |
1 |
|
|
8 |
202-0772
|
Steering wheel |
1 |
|
|
9 |
202-1196
|
Washer 17/64 x 21/64 nylon flat |
6 |
|
|
10 |
202-0847
|
Square keyway |
2 |
|
|
11 |
202-3601
|
Nut #10-32 hex crimp |
6 |
|
|
12 |
202-3154
|
Screw 1/4-20 x 1/4 set |
3 |
|
|
13 |
999-0069
|
Nut 5/16-18 hex |
14 |
|
|
14 |
202-2216
|
Shaft collar with set screw |
3 |
|
|
15 |
999-0968
|
Nut 5/8-11 nylon insert jam lock zinc plated |
1 |
|
|
16 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
11 |
|
|
17 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
11 |
|
|
18 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
11 |
|
|
19 |
999-0986
|
Screw 10-32 x 1 round pan head stainless steel |
6 |
|
|
20 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
6 |
|
|
21 |
999-0346
|
Screw 5/16-18 x 1/4 set cup point socket alloy plain finish |
3 |
|
|
22a |
202-9811
|
Front apron (granite) |
1 |
|
|
22b |
202-9812
|
Front apron (red) |
1 |
|
|
