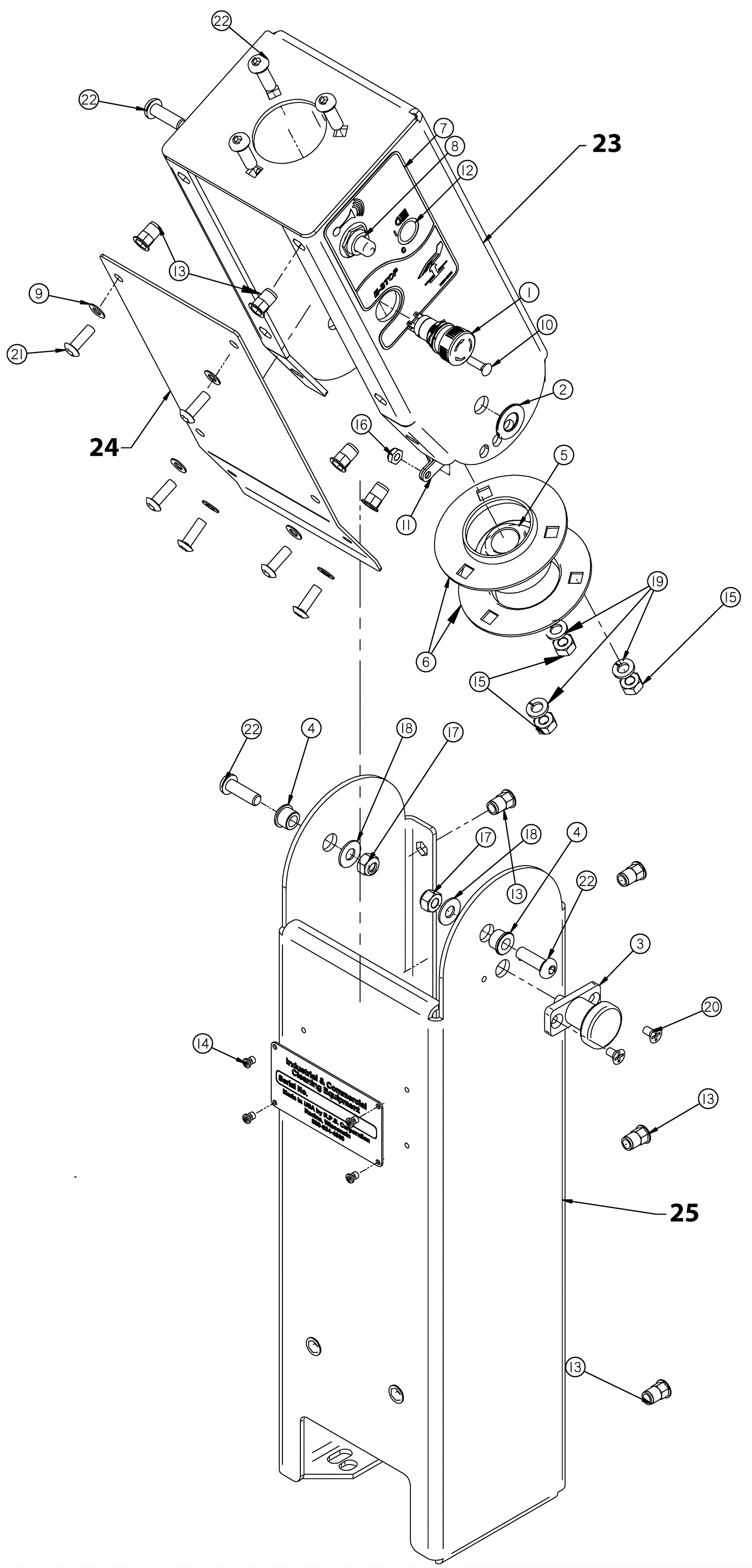

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-4191
|
Emergency stop button |
1 |
|
|
2 |
202-1181
|
Washer 1/2 flat bronze |
2 |
|
|
3 |
202-0719
|
Index plunger |
1 |
|
|
4 |
202-3312
|
Flanged bearing |
2 |
|
|
5 |
202-0142
|
Upper steering bearing |
1 |
|
|
6 |
202-0143
|
Bearing mount |
2 |
|
|
7 |
202-4190
|
Steering tower decal |
1 |
|
|
8 |
202-0381
|
Horn button |
1 |
|
|
9 |
202-1196
|
Washer 17/64 x 21/64 nylon flat |
6 |
|
|
10 |
999-1508
|
Bolt 10-32 x 5/8 round carriage head stainless steel |
1 |
|
|
11 |
202-2431
|
P clamp |
1 |
|
|
12 |
202-4161
|
Dome plug |
1 |
|
|
13 |
999-0190
|
Nut 1/4-20 hex plain finish |
10 |
|
|
14 |
202-3315
|
Blind rivet |
4 |
|
|
15 |
999-0593
|
Nut 5/16-18 hex stainless steel |
4 |
|
|
16 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
1 |
|
|
17 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
18 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
19 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
3 |
|
|
20 |
999-1509
|
Screw 10-32 x 3/8 flat head phillips stainless steel |
2 |
|
|
21 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
6 |
|
|
22 |
999-1507
|
Screw 5/16-18 x 1 button head socket stainless steel |
6 |
|
|
23a |
202-0715
|
Upper steering column (red) |
1 |
|
|
23b |
202-2012
|
Upper steering column (granite) |
1 |
|
|
24a |
202-0716
|
Pedestal cover (red) |
1 |
|
|
24b |
202-2013
|
Pedestal cover (granite) |
1 |
|
|
25a |
202-0714
|
Lower steering column (red) |
1 |
|
|
25b |
202-2011
|
Lower steering column (granite) |
1 |
|
|
