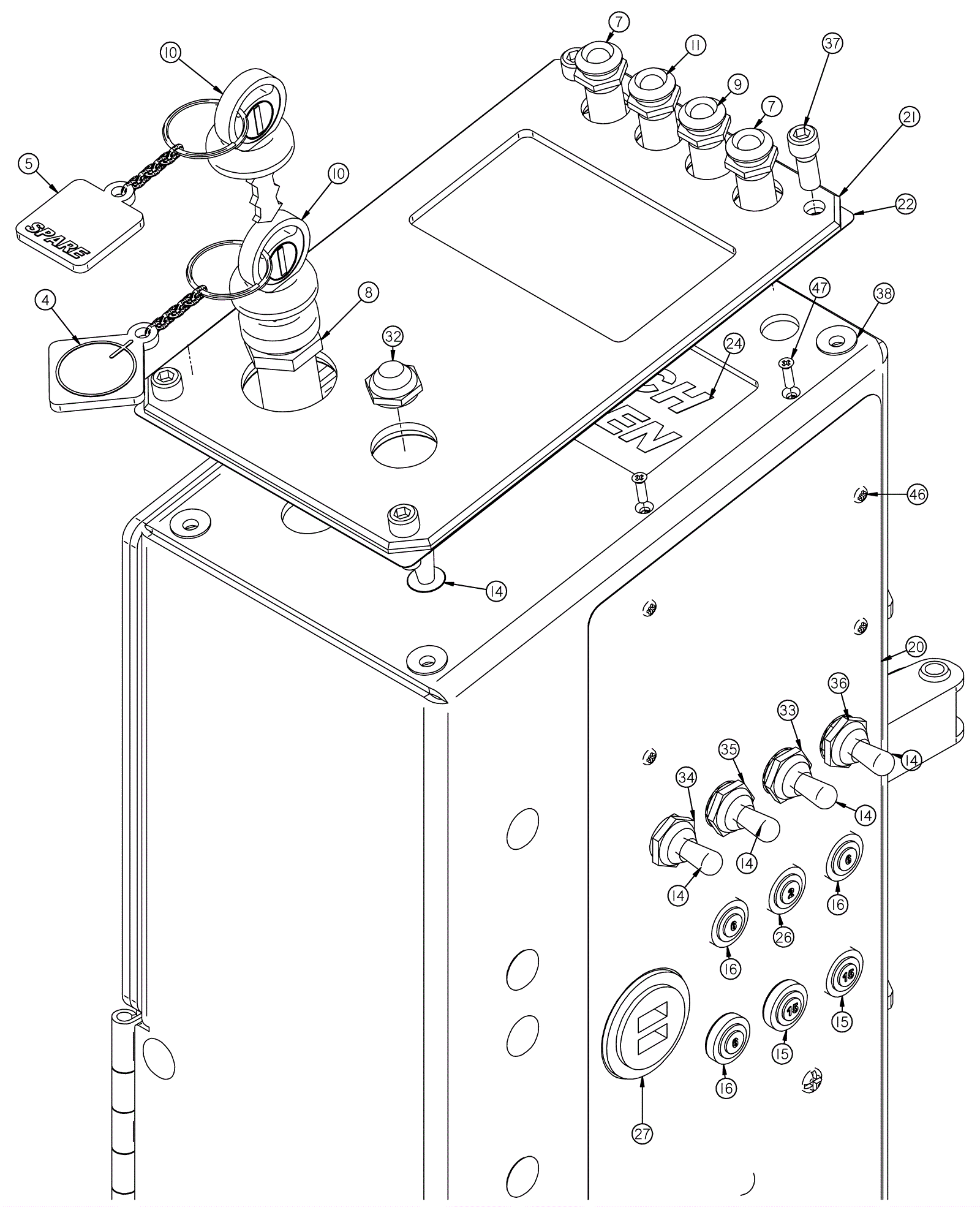

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
202-5903
|
Air Dryer Assembly |
1 |
|
|
4 |
202-3622
|
Power keychain |
1 |
|
|
5 |
202-3622
|
Power keychain |
1 |
|
|
7 |
202-0832
|
Full recovery indicator (red) |
2 |
|
|
9 |
202-7203
|
Light,24V,Green,Bulb Style |
1 |
|
|
10 |
991-1634
|
Key (pkg of 2) |
2 |
|
|
11 |
202-7204
|
Light,24V,Yellow,Bulb Style |
1 |
|
|
14 |
202-1992
|
Toggle switch |
5 |
|
|
15 |
202-2499
|
15amp fuse |
2 |
|
|
16 |
202-0341
|
6 Amp circuit breaker |
2 |
|
|
20 |
202-3818
|
Front control panel sticker |
1 |
|
|
21 |
202-3819
|
Touch screen |
1 |
|
|
22 |
202-3820
|
Touch screen protector |
1 |
|
|
24 |
202-8390
|
LCD Touch Screen |
1 |
|
|
26 |
202-0822
|
2amp fuse |
1 |
|
|
27 |
202-3625
|
Dual USB ports |
1 |
|
|
32 |
202-1864
|
Toggle switch protective boot (red) |
1 |
|
|
33 |
202-1866
|
Toggle switch protective boot (green) |
1 |
|
|
34 |
202-1355
|
Toggle switch protective boot (black) |
1 |
|
|
35 |
202-3465
|
Toggle switch protective boot (orange) |
1 |
|
|
36 |
202-9214
|
Boot,Toggle Switch,Purple |
1 |
|
|
37 |
999-0435
|
Screw 1/4-20 x 5/8 socket head alloy plain finish |
4 |
|
|
38 |
999-0190
|
Nut 1/4-20 hex plain finish |
10 |
|
|
46 |
202-2370
|
Screw 4-40 x 1/2 Phillips pan head stainless steel |
4 |
|
|
47 |
999-1993
|
Screw #4-40 x 3/8 flat head phillips |
4 |
|
|
