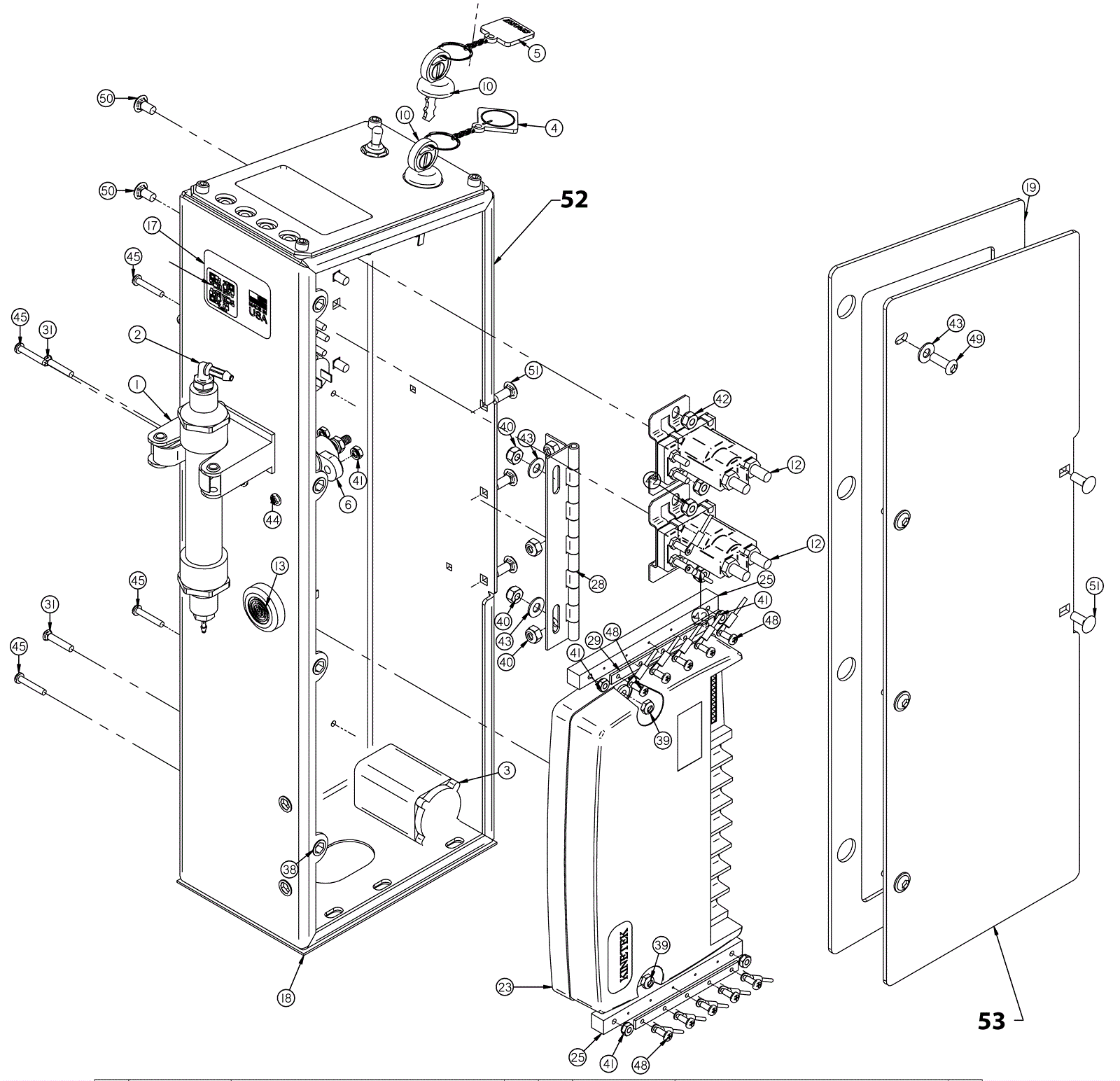

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5893
|
Bracket, Hose |
1 |
|
|
2 |
202-5903
|
Air Dryer Assembly |
1 |
|
|
3 |
202-6255
|
Forced Convection Heater 24V, 60W |
1 |
|
|
4 |
202-3622
|
Power keychain |
1 |
|
|
5 |
202-3622
|
Power keychain |
1 |
|
|
6 |
202-6396
|
Power Post, Black, 1/4 Terminal |
1 |
|
|
10 |
991-1634
|
Key (pkg of 2) |
1 |
|
|
12 |
202-3307
|
36V relay with mounting plate |
1 |
|
|
17 |
202-8269
|
Decal, Central Command |
1 |
|
|
18 |
202-3809
|
Dust curtain |
1 |
|
|
19 |
202-3810
|
Access cover gasket |
1 |
|
|
23 |
202-8389
|
Controller, Touch Screen |
1 |
|
|
25 |
202-0541
|
Busbar |
2 |
|
|
28 |
202-0704
|
Hinge |
1 |
|
|
29 |
202-0830
|
Busbar (5 hole) |
2 |
|
|
31 |
999-1982
|
Bolt 10-32 x 1 round carriage head stainless steel |
2 |
|
|
38 |
999-0190
|
Nut 1/4-20 hex plain finish |
10 |
|
|
39 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
4 |
|
|
40 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
5 |
|
|
41 |
999-1464
|
Nut 8-32 keps lock with external tooth lockwasher ss |
6 |
|
|
42 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
4 |
|
|
43 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
6 |
|
|
44 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
2 |
|
|
45 |
999-1574
|
Screw 8-32 x 1 pan head phillips stainless steel |
4 |
|
|
48 |
999-1919
|
#8-15 x 1/2 phillips pan head sheet metal SS |
10 |
|
|
49 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
4 |
|
|
50 |
999-1442
|
Bolt 1/4-20 x 1/2 carriage stainless steel |
4 |
|
|
51 |
202-2851
|
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
5 |
|
|
52a |
202-3814
|
LCD screen (red) |
1 |
|
|
52b |
202-3815
|
LCD screen (graphite) |
1 |
|
|
53a |
202-3812
|
Access cover (red) |
1 |
|
|
53b |
202-3813
|
Access cover (green) |
1 |
|
|
54 |
N/A
|
Not available |
1 |
(decal) |
|
