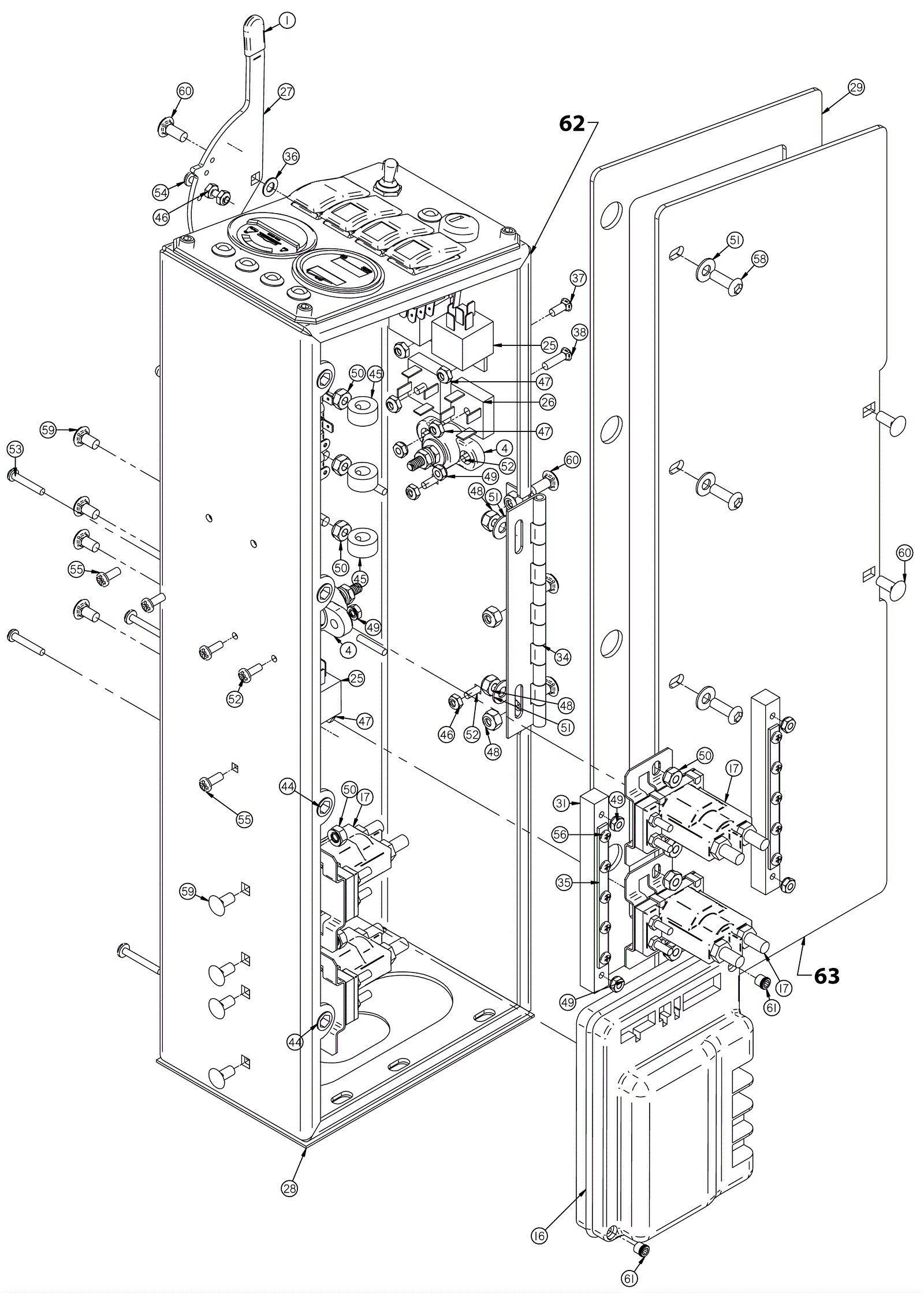

Military Central Command Assembly-1

#PartDescription ReqNotesAvailability
1 202-5386 Handle grip (blue) 1
4 202-6396 Power Post, Black, 1/4 Terminal 2
16 202-5254 I-drive controller 1
17 202-3307 36V relay with mounting plate 4
25 202-0348 15amp relay 3
26 202-0345 Diode bridge 2
27 202-5612 Valve lever 1
28 202-3809 Dust curtain 1
29 202-3810 Access cover gasket 1
31 202-0541 Busbar 2
34 202-0704 Hinge 1
35 202-0830 Busbar (5 hole) 2
36 202-1196 Washer 17/64 x 21/64 nylon flat 1
37 202-3302 Bolt 10-32 x 1/2 carriage head stainless steel 2
38 999-1873 Bolt 10-32 x 3/4 carriage head stainless steel 2
44 999-0190 Nut 1/4-20 hex plain finish 5
45 202-2964 Shaft collar 3
46 999-0357 Nut 8-32 nylon insert lock stainless steel 4
47 999-0086 Nut 10-32 nylon insert lock zinc plated 7
48 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 6
49 999-1464 Nut 8-32 keps lock with external tooth lockwasher ss 8
50 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 11
51 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 6
52 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 6
53 999-1574 Screw 8-32 x 1 pan head phillips stainless steel 4
54 999-1918 Screw #8-32 x 1 1/4 phillips pan head SS 3
55 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel 3
56 999-1919 #8-15 x 1/2 phillips pan head sheet metal SS 10
58 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 4
59 999-1442 Bolt 1/4-20 x 1/2 carriage stainless steel 8
60 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel 6
61 202-3816 Nut #8-32 socket head 2
62a 202-3814 LCD screen (red) 1
62b 202-3815 LCD screen (graphite) 1
63a 202-3812 Access cover (red) 1
63b 202-3813 Access cover (green) 1
