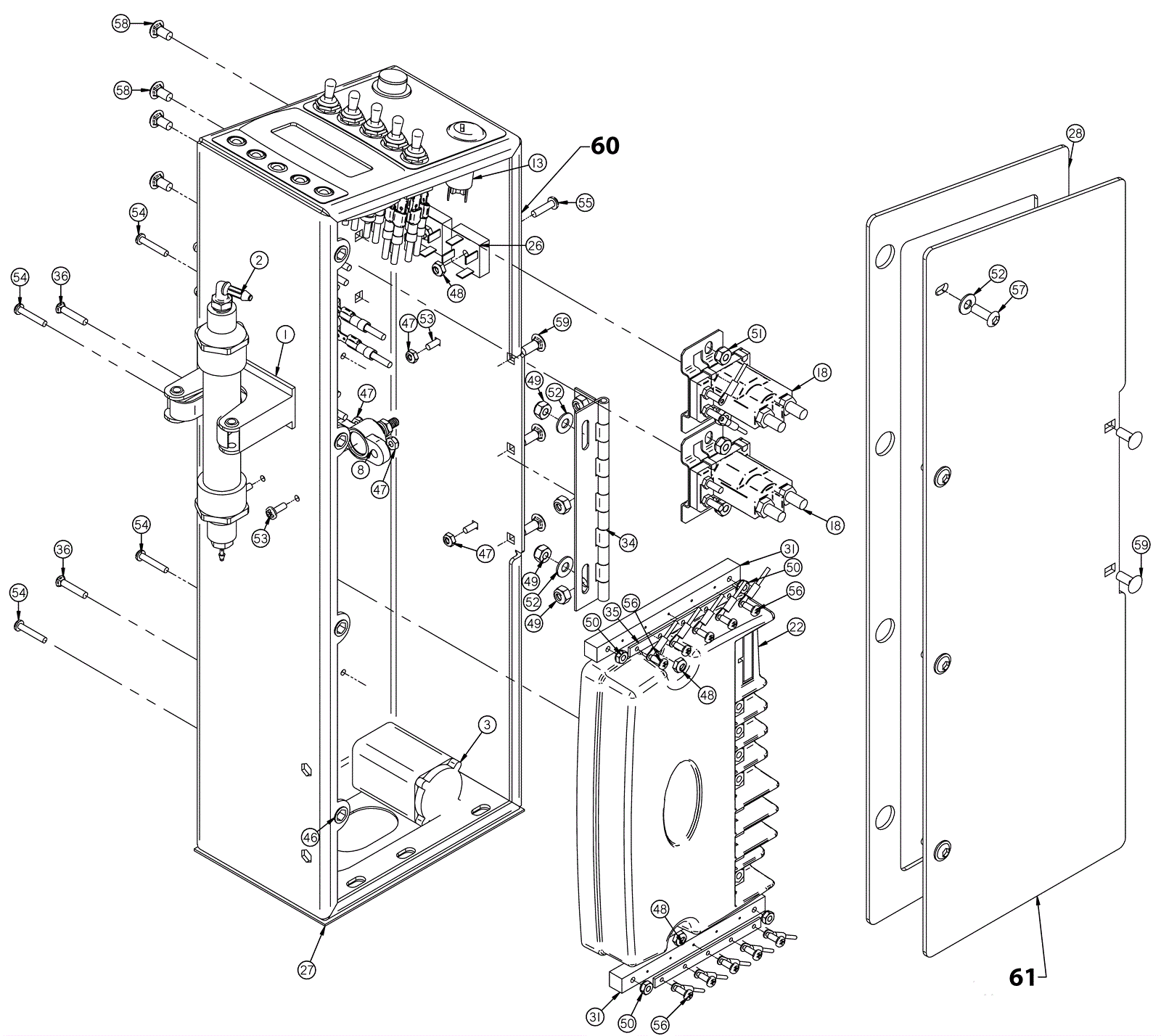

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5893
|
Bracket, Hose |
1 |
|
|
2 |
202-5903
|
Air Dryer Assembly |
1 |
|
|
3 |
202-6255
|
Forced Convection Heater 24V, 60W |
1 |
|
|
8 |
202-6396
|
Power Post, Black, 1/4 Terminal |
1 |
|
|
13 |
202-2300
|
Key switch with key entry (red) and ring (black) |
2 |
|
|
18 |
202-3307
|
36V relay with mounting plate |
2 |
|
|
22 |
202-1369
|
Main controller |
1 |
|
|
26 |
202-0345
|
Diode bridge |
2 |
|
|
27 |
202-3809
|
Dust curtain |
1 |
|
|
28 |
202-3810
|
Access cover gasket |
1 |
|
|
31 |
202-0541
|
Busbar |
2 |
|
|
34 |
202-0704
|
Hinge |
1 |
|
|
35 |
202-0830
|
Busbar (5 hole) |
2 |
|
|
36 |
999-1982
|
Bolt 10-32 x 1 round carriage head stainless steel |
2 |
|
|
46 |
999-0190
|
Nut 1/4-20 hex plain finish |
4 |
|
|
47 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
4 |
|
|
48 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
6 |
|
|
49 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
5 |
|
|
50 |
999-1464
|
Nut 8-32 keps lock with external tooth lockwasher ss |
4 |
|
|
51 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
4 |
|
|
52 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
6 |
|
|
53 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
4 |
|
|
54 |
999-1574
|
Screw 8-32 x 1 pan head phillips stainless steel |
4 |
|
|
55 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
2 |
|
|
56 |
999-1919
|
#8-15 x 1/2 phillips pan head sheet metal SS |
10 |
|
|
57 |
999-0867
|
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
4 |
|
|
58 |
999-1442
|
Bolt 1/4-20 x 1/2 carriage stainless steel |
4 |
|
|
59 |
202-2851
|
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
5 |
|
|
60a |
202-3814
|
LCD screen (red) |
1 |
|
|
60b |
202-3815
|
LCD screen (graphite) |
1 |
|
|
61a |
202-3812
|
Access cover (red) |
1 |
|
|
61b |
202-3813
|
Access cover (green) |
1 |
|
|
