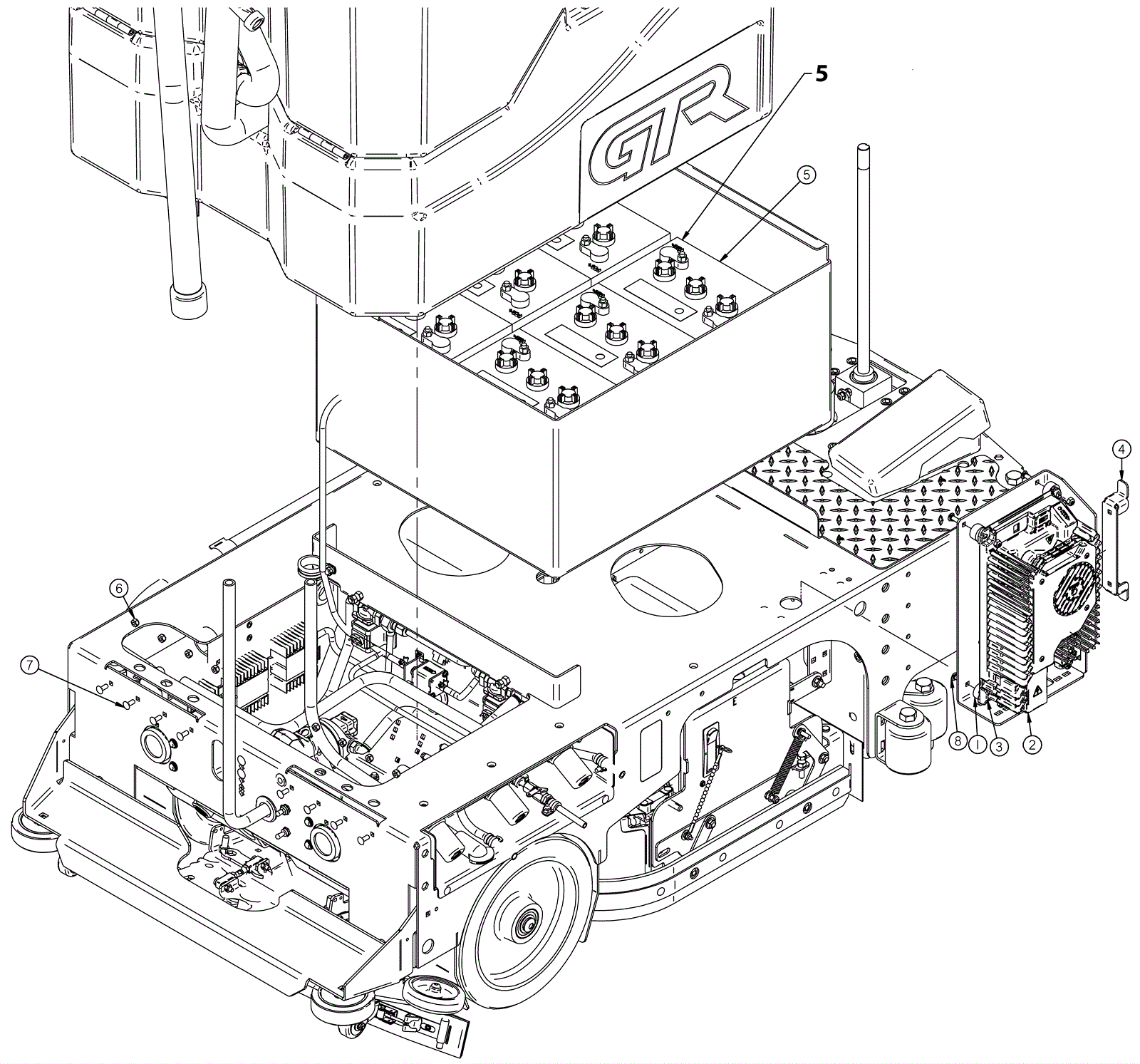

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-9809
|
Isolator |
3 |
|
|
2a |
202-3806
|
36V onboard charger |
1 |
(use with battery 5a) |
|
2b |
202-7697
|
Charger, 36V,33A Onboard, Universal Charger w/Power Cord |
1 |
(use with battery 5b, 5e) |
|
3 |
202-8388
|
Charger Mount |
1 |
|
|
4 |
202-3635
|
Cord wrap |
1 |
|
|
5a |
162-0005
|
6V 305Ah wet battery (SNSR) |
6 |
|
|
5b |
162-0003
|
6V 225Ah wet battery (SNSR) |
6 |
|
|
5e |
162-0043
|
6V 224Ah AGM battery (Group GC2) (SNSR) |
6 |
|
|
6 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
12 |
|
|
7 |
202-2851
|
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
8 |
|
|
8 |
999-1401
|
Bolt 1/4-20 x 1 carriage head stainless steel |
8 |
|
|
N/S |
202-2310
|
36V 25amp battery charger |
1 |
(use with battery 5b) |
|
N/S |
202-2148
|
36V 30amp wet SCR battery charger with large SB175 gray plug |
1 |
(use with battery 5a) |
|
