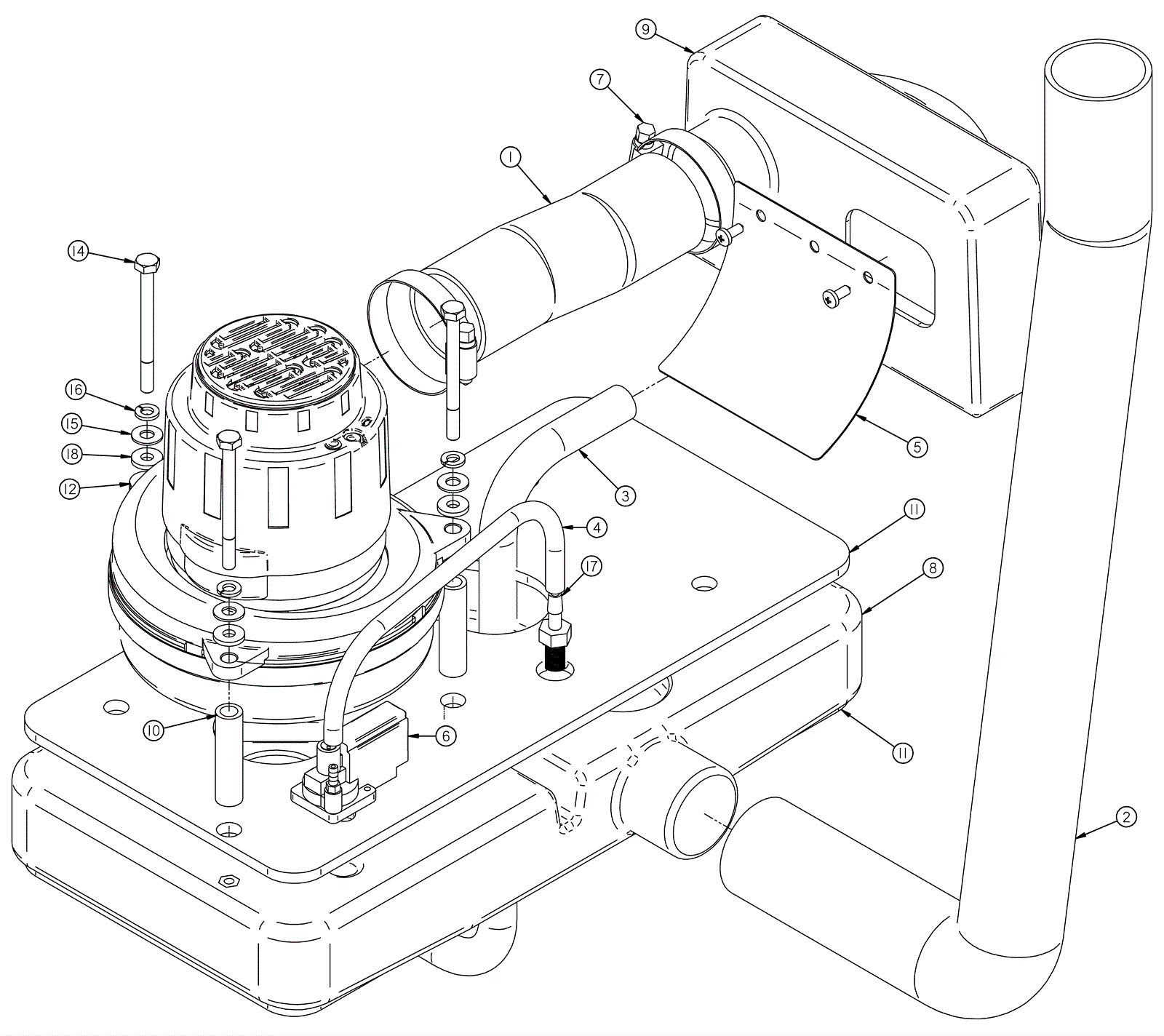

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
(2 inch hose) |
|
2 |
N/A
|
Not available |
1 |
(cleanair intake) |
|
3 |
N/A
|
Not available |
1 |
(vac box drain) |
|
4 |
N/A
|
Not available |
1 |
(vac switch hose) |
|
5 |
202-6320
|
Flap,Drain Saver Basket |
1 |
|
|
6 |
202-1908
|
Vacuum shut-off switch |
1 |
|
|
7 |
997-2011
|
Hose clamp |
2 |
|
|
8 |
202-9680
|
Vac box |
1 |
|
|
9 |
202-9681
|
Vac muffler housing |
1 |
|
|
10 |
202-9682
|
2 1/8 inch plastic spacer |
3 |
|
|
11 |
202-9683
|
Vac motor gasket set |
2 |
|
|
12 |
202-9684
|
36V 2 stage vacuum motor |
1 |
|
|
14 |
202-9338
|
Screw,Hex Cap,1/4-20x3 inch Stainless |
3 |
|
|
15 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
|
16 |
999-0632
|
Washer 1/4 split lock stainless steel |
3 |
|
|
17 |
202-9488
|
Fitting,1/4 inchNPTx1/8 inchBarb |
1 |
|
|
18 |
202-1986
|
Washer 3/8 x 1-1/8 x 3/32 neoprene thread |
3 |
|
|
N/S |
202-9255
|
PPH SMS #10 x 1/2 inch SBO |
2 |
|
|
