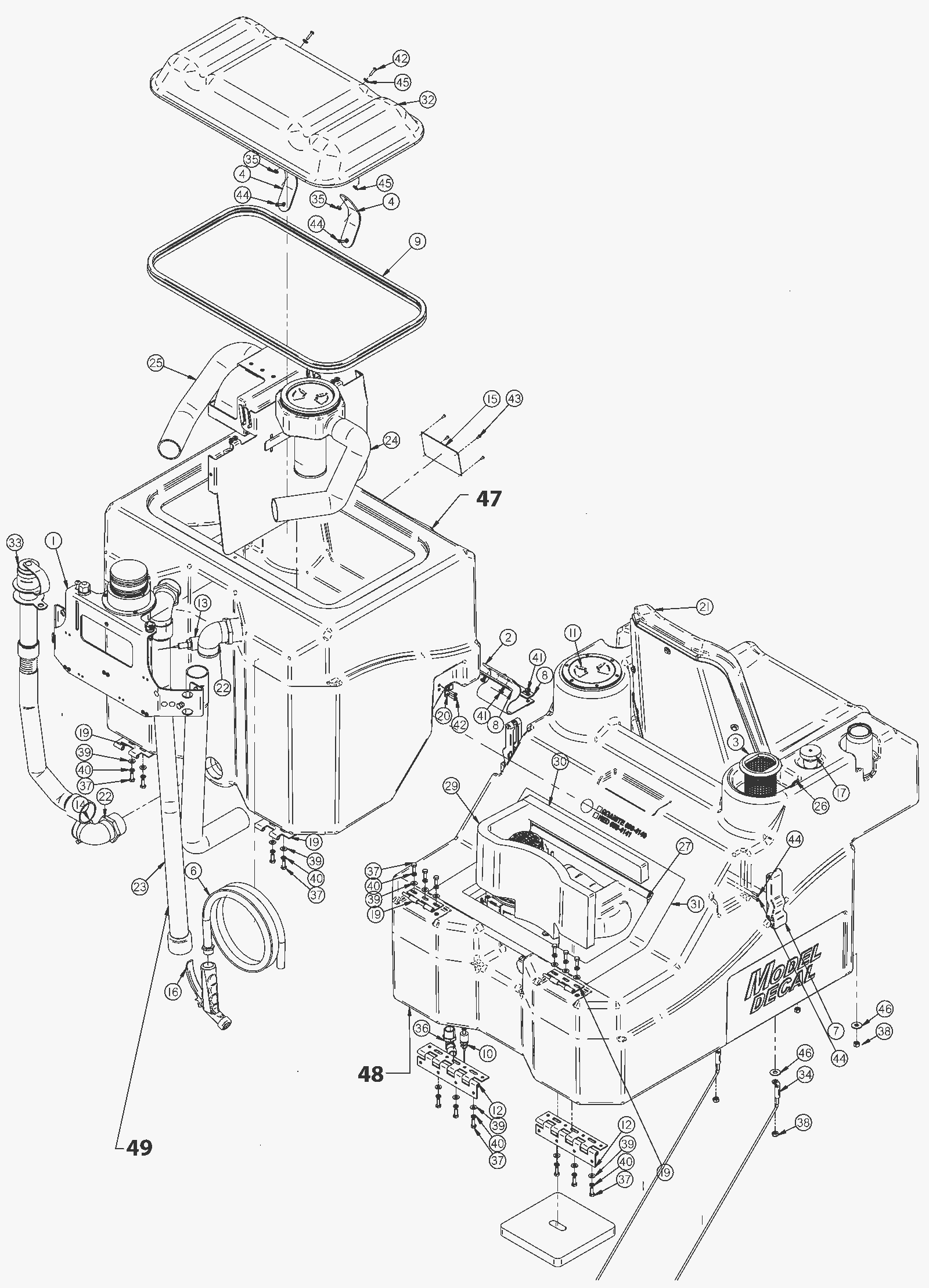

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
(sub# 10739 GTR utility bracket) |
|
2 |
202-4091
|
Tank strap |
1 |
|
|
3 |
202-3036
|
Strainer screen |
1 |
|
|
4 |
202-6381
|
Tank Lid Strap W/Grommets |
2 |
|
|
6 |
202-5025
|
12 foot hose (blue) |
1 |
|
|
7 |
202-5630
|
Soft draw latch |
2 |
|
|
8 |
202-3279
|
Tank support strap |
2 |
|
|
9 |
202-7034
|
Push-On Rubber Gasket For 264-1410 Lid |
1 |
|
|
10 |
202-3270
|
Vertical float valve switch w/ washer |
1 |
|
|
11 |
202-8038
|
4 inch Clear Access Port |
1 |
|
|
12 |
202-0403
|
Hinge |
2 |
|
|
13 |
202-1312
|
Float switch (includes nut and washer) |
1 |
|
|
14 |
997-2011
|
Hose clamp |
1 |
|
|
15 |
202-0675
|
Detergent warning plate |
1 |
|
|
16 |
202-0103
|
Spray nozzle |
1 |
|
|
17 |
202-4200
|
Fill hose |
1 |
|
|
19 |
202-5648
|
4 inch hinge stainless steel |
2 |
|
|
21 |
202-9790
|
Seat |
1 |
|
|
22 |
202-4187
|
Elbow |
3 |
|
|
23 |
202-9791
|
Squeegee hose |
1 |
|
|
24 |
202-6303
|
Hose, Clean Air Intake |
1 |
|
|
25 |
202-6941
|
Hose, Inner Tank |
1 |
|
|
26 |
202-9792
|
Solution fill flap |
1 |
|
|
27 |
202-9793
|
Vacuum motor insulation |
2 |
|
|
29 |
202-9795
|
Vacuum motor insulation |
1 |
|
|
30 |
202-9796
|
Vacuum motor insulation |
1 |
|
|
31 |
202-9794
|
Vacuum motor insulation |
1 |
|
|
32 |
202-8383
|
Cover, Tinted |
1 |
|
|
33 |
202-3785
|
Recovery drain hose w/ turn cap |
1 |
|
|
34 |
202-9797
|
Tank cable |
2 |
|
|
35 |
999-1269
|
Nut 10-32 nylon insert jam stainless steel |
2 |
|
|
37 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
16 |
|
|
38 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
|
39 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
16 |
|
|
40 |
999-0632
|
Washer 1/4 split lock stainless steel |
16 |
|
|
41 |
202-2918
|
Screw 1/4-20 x 3/4 self tapping |
4 |
|
|
42 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
6 |
|
|
43 |
999-1930
|
Screw #6-18 x 3/8 phillips pan head SS |
4 |
|
|
44 |
999-0870
|
Screw 8 x 3/4 pan head phillips stainless steel |
6 |
|
|
45 |
202-3244
|
Neoprene washer |
3 |
|
|
46 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
4 |
|
|
47a |
202-9798
|
Recovery tank (granite) |
1 |
|
|
47b |
202-9799
|
Recovery tank (red) |
1 |
|
|
47c |
202-9800
|
Recovery tank (green) |
1 |
|
|
48a |
202-9801
|
Solution tank (granite) |
1 |
|
|
48b |
202-9802
|
Solution tank complete (red) |
1 |
|
|
48c |
202-9803
|
Solution tank (green) |
1 |
|
|
49 |
202-5544
|
Squeegee hose 1.5 x 75 inch |
1 |
|
|
N/S |
202-1017
|
Male barb 1/2 x 3/4 |
1 |
|
|
N/S |
202-5638
|
Seat switch |
1 |
|
|
N/S |
202-0884
|
Barbed elbow |
1 |
|
|
