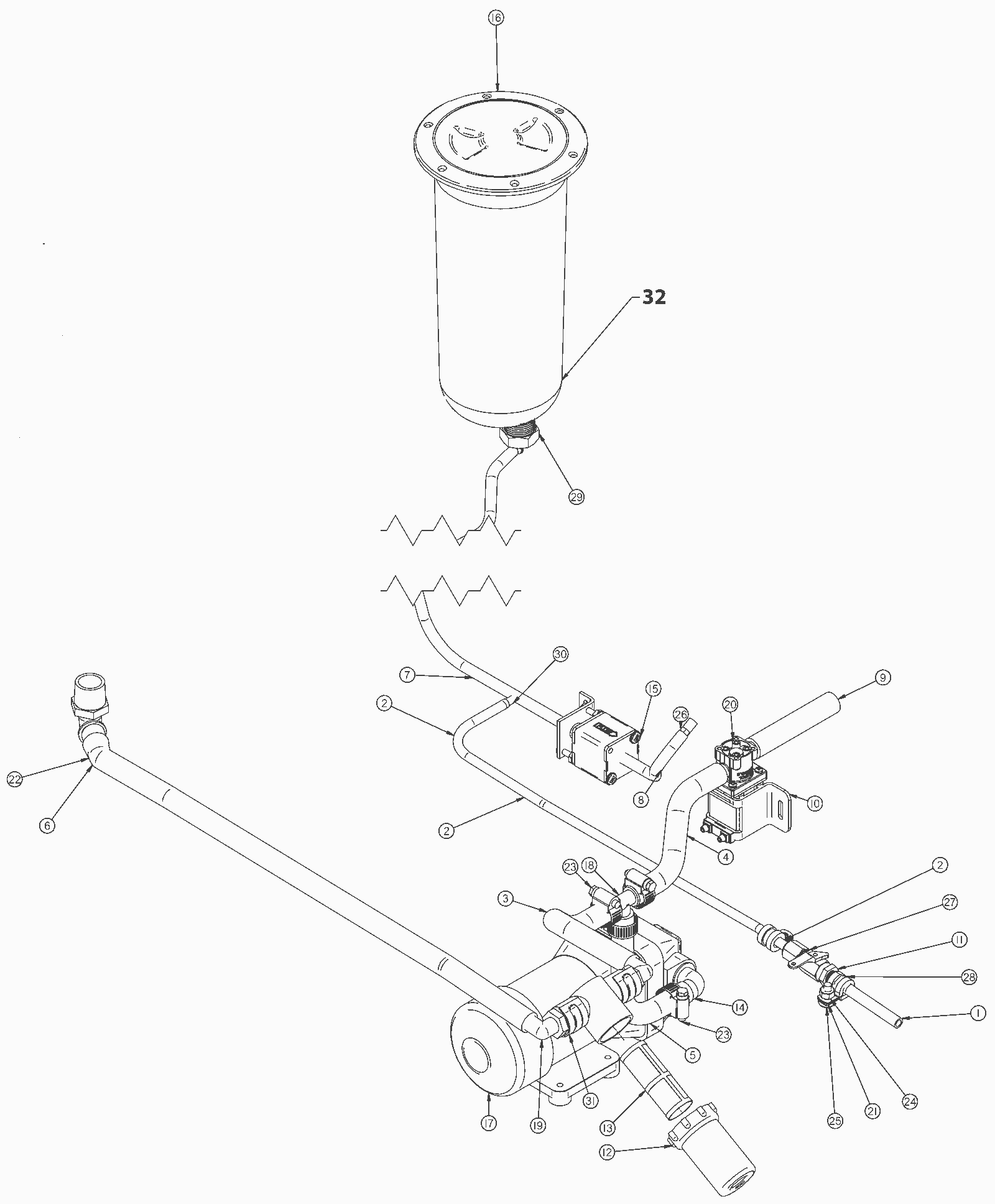

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
(suds drain hose) |
|
2 |
N/A
|
Not available |
1 |
(suds drain hose) |
|
3 |
N/A
|
Not available |
1 |
(1/2 inch grey hose) |
|
4 |
N/A
|
Not available |
1 |
(1/2 inch grey hose) |
|
5 |
N/A
|
Not available |
1 |
(1/2 inch grey hose) |
|
6 |
N/A
|
Not available |
1 |
(1/2 inch clear wire reinforced hose) |
|
7 |
N/A
|
Not available |
1 |
(clear suds hose) |
|
8 |
N/A
|
Not available |
1 |
(clear suds hose) |
|
9 |
N/A
|
Not available |
1 |
(1/2 inch grey hose) |
|
11 |
202-5483
|
1/4 inch two way ball valve brass |
1 |
|
|
12 |
202-3584
|
Inline filter |
1 |
|
|
13 |
202-9782
|
Filter screen (black) |
1 |
|
|
14 |
202-1008
|
Barbed elbow |
1 |
|
|
15 |
202-3301
|
36V soap pump |
1 |
|
|
16 |
202-8038
|
4 inch Clear Access Port |
1 |
|
|
17 |
202-2368
|
36V water jet pump |
1 |
|
|
18 |
202-0332
|
1/2 inch barbed tee |
1 |
|
|
19 |
202-0333
|
Elbow barb |
2 |
|
|
20 |
202-3038
|
36V solenoid valve |
1 |
|
|
21 |
202-9129
|
Clamp,Loop,5/8 inch,Rubber |
2 |
|
|
22 |
202-0884
|
Barbed elbow |
1 |
|
|
23 |
202-0680
|
Hose clamp |
4 |
|
|
24 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
|
25 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
1 |
|
|
26 |
202-3343
|
Barbed fitting |
1 |
|
|
27 |
202-9475
|
Fitting, 1/4 NPTF x 3/16 Barb |
1 |
|
|
28 |
202-9489
|
Fitting,1/4 inchNPTx1/4 inchBarb |
1 |
|
|
29 |
202-9496
|
Elbow, 1/4 inch Barb x 3/4 inch NPT Black |
1 |
|
|
30 |
202-9499
|
Tee, 1/4 inch, Plastic |
1 |
|
|
31 |
202-9642
|
3/4 inch clamp zinc |
2 |
|
|
32a |
202-9788
|
Citrus green soap |
1 |
|
|
32b |
202-3779
|
Low PH soap |
1 |
|
|
32c |
202-3780
|
High power soap |
1 |
|
|
32d |
202-3781
|
Gloss |
1 |
|
|
32e |
202-9789
|
HD cleaner |
1 |
|
|
