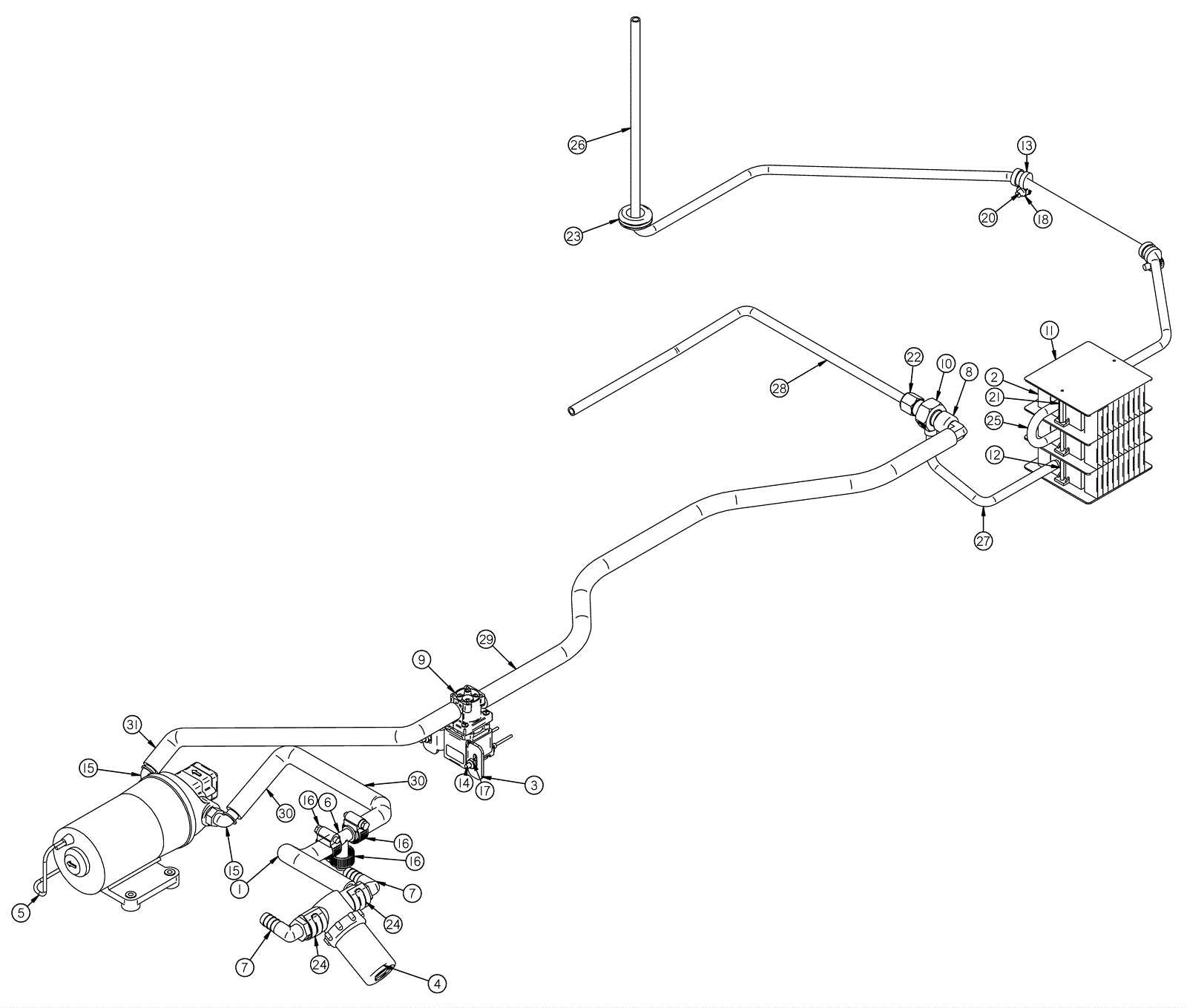

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
(1/2 inch grey hose) |
|
2 |
202-9783
|
12V generator |
3 |
|
|
3 |
202-9784
|
Valve bracket |
1 |
|
|
4 |
202-3584
|
Inline filter |
1 |
|
|
5 |
202-7789
|
Pump,36V,High PSI |
1 |
|
|
6 |
202-0332
|
1/2 inch barbed tee |
1 |
|
|
7 |
202-0333
|
Elbow barb |
2 |
|
|
8 |
202-9472
|
Elbow Fitting, 3/8 inch NPTF x 1/2 inch Barb, Brass |
1 |
|
|
9 |
202-3038
|
36V solenoid valve |
1 |
|
|
10 |
202-9785
|
Injector (light blue) |
1 |
|
|
11 |
202-9786
|
Generator insulator |
4 |
|
|
12 |
N/A
|
Not available |
1 |
(pph #6-32 x 4 ms s/s) |
|
13 |
202-9128
|
Clamp,Loop,1/2 inch,Rubber |
2 |
|
|
14 |
999-1508
|
Bolt 10-32 x 5/8 round carriage head stainless steel |
2 |
|
|
15 |
202-3236
|
Threaded barb |
2 |
|
|
16 |
202-0680
|
Hose clamp |
3 |
|
|
17 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
2 |
|
|
18 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
|
20 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
2 |
|
|
21 |
202-9787
|
Standoff |
2 |
|
|
22 |
202-9476
|
Fitting, 3/8 NPTF x 1/4 inch Barb |
1 |
|
|
23 |
202-4003
|
Grommet |
1 |
|
|
24 |
202-9642
|
3/4 inch clamp zinc |
2 |
|
|
25 |
202-4247
|
Hose 1/4 inch x 5 foot |
1 |
|
|
26 |
202-4247
|
Hose 1/4 inch x 5 foot |
1 |
|
|
27 |
202-4247
|
Hose 1/4 inch x 5 foot |
1 |
|
|
28 |
202-4247
|
Hose 1/4 inch x 5 foot |
1 |
|
|
29 |
202-5106
|
Reinforced hose 1/2 x 60 inch |
1 |
|
|
30 |
202-5106
|
Reinforced hose 1/2 x 60 inch |
1 |
|
|
31 |
202-5106
|
Reinforced hose 1/2 x 60 inch |
1 |
|
|
N/S |
202-2851
|
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
1 |
|
|
