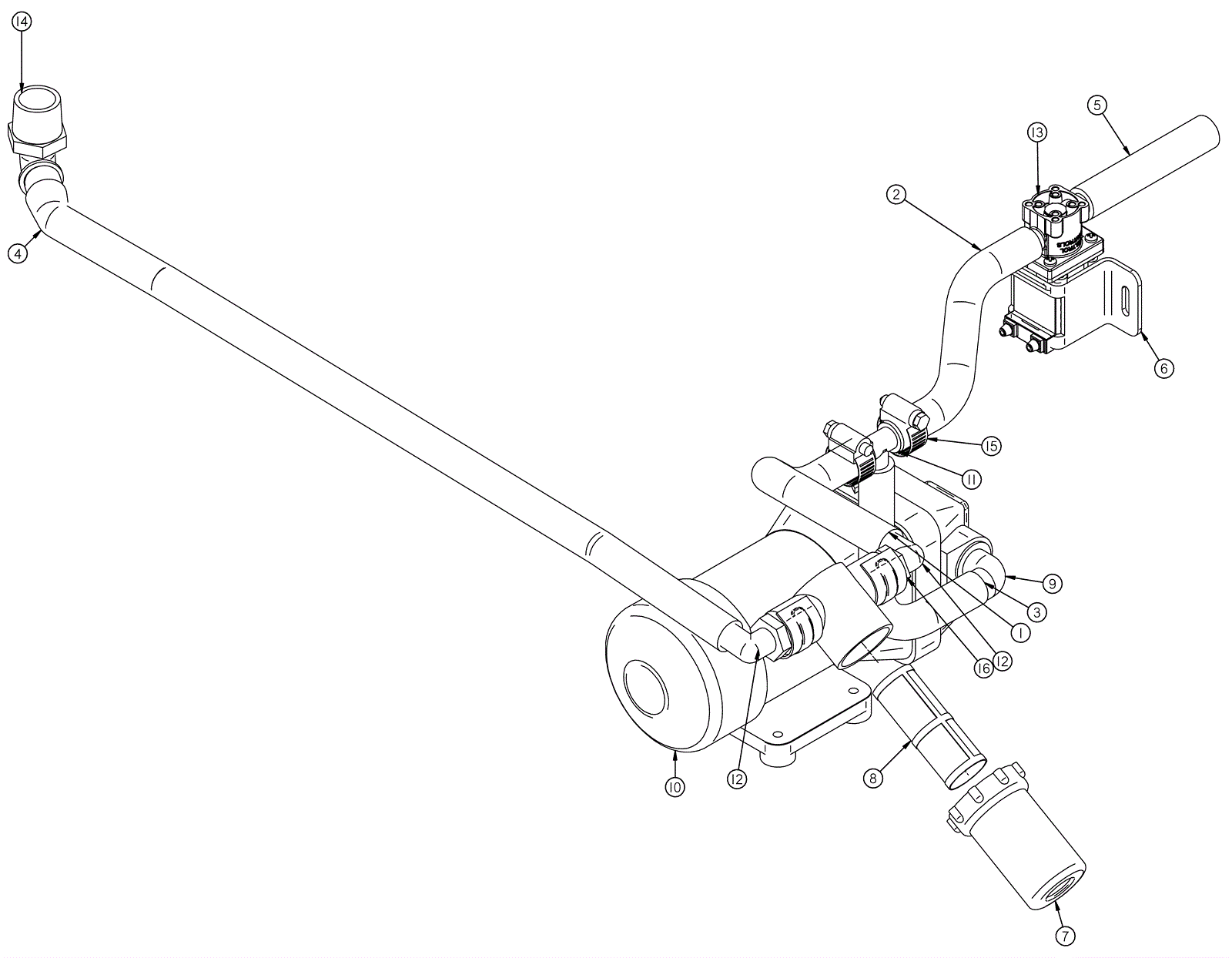

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
(1/2 inch grey hose) |
|
2 |
N/A
|
Not available |
1 |
(1/2 inch grey hose) |
|
3 |
N/A
|
Not available |
1 |
(1/2 inch grey hose) |
|
4 |
N/A
|
Not available |
1 |
(1/2 inch clear wire reinforced hose) |
|
5 |
N/A
|
Not available |
1 |
(1/2 inch grey hose) |
|
7 |
202-3584
|
Inline filter |
1 |
|
|
8 |
202-9782
|
Filter screen (black) |
1 |
|
|
9 |
202-1008
|
Barbed elbow |
1 |
|
|
10 |
202-2368
|
36V water jet pump |
1 |
|
|
11 |
202-0332
|
1/2 inch barbed tee |
1 |
|
|
12 |
202-0333
|
Elbow barb |
2 |
|
|
13 |
202-3038
|
36V solenoid valve |
1 |
|
|
14 |
202-0884
|
Barbed elbow |
1 |
|
|
15 |
202-0680
|
Hose clamp |
2 |
|
|
16 |
202-9642
|
3/4 inch clamp zinc |
2 |
|
|
