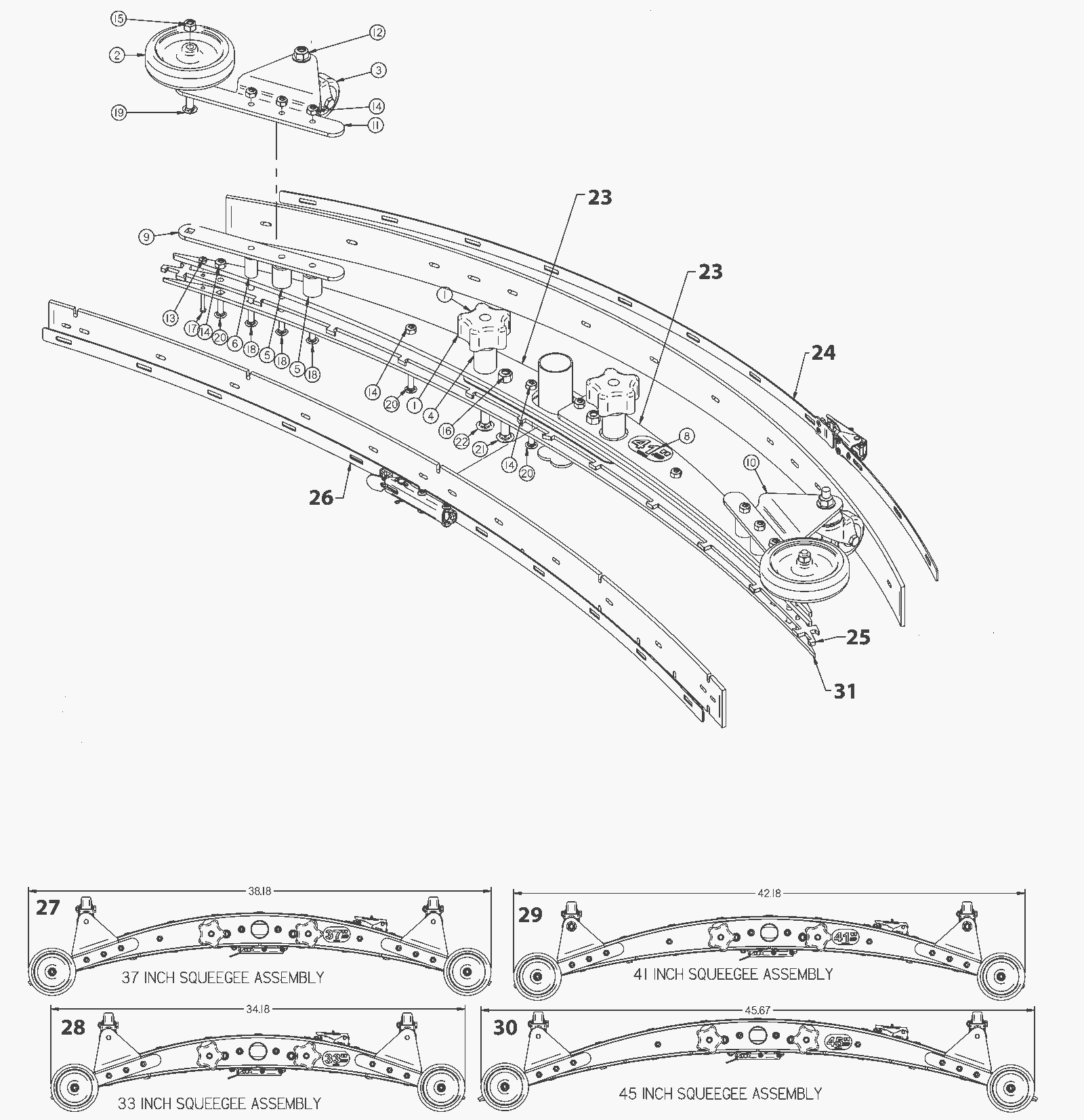

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-5078
|
Star knob |
2 |
|
|
2 |
202-5079
|
4 inch wheel |
2 |
|
|
3 |
202-3590
|
2 inch caster (gray) |
2 |
|
|
4 |
202-7619
|
Standoff, 1.25 inch |
2 |
|
|
5 |
202-9688
|
Steel tube |
4 |
|
|
6 |
202-3655
|
Roller spacer |
2 |
|
|
8 |
202-3656
|
41 inch squeegee decal |
1 |
|
|
9 |
202-9697
|
Squeegee caster bracket |
2 |
|
|
10 |
202-9739
|
Left hand squeegee caster bracket |
1 |
|
|
11 |
202-3658
|
Right hand squeegee castor bracket |
1 |
|
|
12 |
999-0488
|
Nut 3/8-16 flange lock serrated zinc plated |
2 |
|
|
13 |
999-0337
|
Nut 6-32 nylon insert lock stainless steel |
2 |
|
|
14 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
12 |
|
|
15 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
16 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
2 |
|
|
17 |
999-0520
|
Screw 10-24 x 1 pan head phillips stainless steel |
2 |
|
|
18 |
999-1855
|
Bolt 1/4 20 x 2 1/4 round head stainless steel |
6 |
|
|
19 |
202-3077
|
Carriage bolt 5/16 x 1-1/2 stainless steel |
2 |
|
|
20 |
999-1401
|
Bolt 1/4-20 x 1 carriage head stainless steel |
6 |
|
|
21 |
999-1150
|
Bolt 3/8-16 x 1 1/4 carriage head stainless steel |
2 |
|
|
22 |
999-0626
|
Screw 3/8-16 x 3 carriage head stainless steel |
2 |
|
|
23a |
202-9740
|
33 inch squeegee weight |
1 |
|
|
23b |
202-9741
|
37 inch squeegee weight |
1 |
|
|
23c |
202-9742
|
41 inch squeegee weight |
1 |
|
|
23d |
202-9743
|
45 inch squeegee weight |
1 |
|
|
23e |
202-9744
|
33 inch squeegee weight |
1 |
(optional) |
|
23f |
202-9745
|
37 inch squeegee weight |
1 |
(optional) |
|
23g |
202-9746
|
41 inch squeegee weight |
1 |
(optional) |
|
23h |
202-9747
|
45 inch squeegee weight |
1 |
(optional) |
|
24a |
202-9749
|
33 inch rear squeegee band with latch |
1 |
|
|
24b |
202-9750
|
37 inch rear squeegee band with latch |
1 |
|
|
24c |
202-9751
|
41 inch rear squeegee band with latch |
1 |
|
|
24d |
202-9752
|
45 inch rear squeegee band with latch |
1 |
|
|
25a |
202-9760
|
33 inch squeegee body |
1 |
|
|
25b |
202-0131
|
14 inch x 14 inch wheel/ ribless solid tire on aluminum rim |
1 |
|
|
25c |
202-9758
|
41 inch squeegee body |
1 |
|
|
25d |
202-9759
|
45 inch squeegee body |
1 |
|
|
26a |
202-9761
|
33 inch front squeegee band with latch |
1 |
|
|
26b |
202-9762
|
37 inch front squeegee band with latch |
1 |
|
|
26c |
202-9763
|
41 inch front squeegee band with latch |
1 |
|
|
26d |
202-9764
|
45 inch front squeegee band with latch |
1 |
|
|
27a |
202-9765
|
37 inch squeegee complete |
1 |
(includes 1-22, 23b, 24b, 25b, 26b, 27b-27c, 31b, N/S) |
|
27b |
202-9629
|
37 inch squeegee blade front |
1 |
(front) (linatex) |
|
27c |
202-9630
|
37 inch squeegee blade rear |
1 |
(rear) (linatex) |
|
27d |
202-9766
|
37 inch front squeegee blade (urethane) |
1 |
(front) (urethane) |
|
27e |
202-9767
|
37 inch rear squeegee blade (urethane) |
1 |
(rear) (urethane) |
|
28a |
202-9768
|
33 inch squeegee complete |
1 |
(includes 1-22, 23a, 24a,25a, 26a, 28b-28c, 31a, N/S) |
|
28b |
202-9753
|
33 inch front squeegee blade (linatex) |
1 |
(front) (linatex) |
|
28c |
202-9754
|
33 inch rear squeegee blade (linatex) |
1 |
(rear) (linatex) |
|
28d |
202-9755
|
33 inch front squeegee blade (urethane) |
1 |
(front) (urethane) |
|
28e |
202-9756
|
33 inch rear squeegee blade (urethane) |
1 |
(rear) (urethane) |
|
29a |
202-9769
|
41 inch squeegee complete |
1 |
(includes 1-22, 23c, 24c, 25c, 26c, 29b-29c, 31c, N/S) |
|
29b |
202-9771
|
41 inch front squeegee blade (linatex) |
1 |
(front) (linatex) |
|
29c |
202-9772
|
41 inch front squeegee blade (urethane) |
1 |
(rear) (linatex) |
|
29d |
202-9773
|
41 inch rear squeegee blade (linatex) |
1 |
(front) (urethane) |
|
29e |
202-9774
|
41 inch rear squeegee blade (urethane) |
1 |
(rear) (urethane) |
|
30a |
202-9770
|
45 inch squeegee complete |
1 |
(includes 1-22, 23d, 24d, 25d, 26d, 30b-30c, 31d, N/S) |
|
30b |
202-9775
|
45 inch front squeegee blade (linatex) |
1 |
(front) (linatex) |
|
30c |
202-9776
|
45 inch rear squeegee blade (linatex) |
1 |
(rear) (linatex) |
|
30d |
202-9778
|
45 inch front squeegee blade (urethane) |
1 |
(front) (urethane) |
|
30e |
202-9777
|
45 inch rear squeegee blade (urethane) |
1 |
(rear) (urethane) |
|
31a |
202-9757
|
33 inch squeegee body bottom |
1 |
|
|
31b |
202-0133
|
Wheel bearing cone |
1 |
|
|
31c |
202-9779
|
41 inch squeegee body bottom |
1 |
|
|
31d |
202-9780
|
45 inch squeegee body bottom |
1 |
|
|
N/S |
202-9781
|
Squeegee curtain |
1 |
|
|
