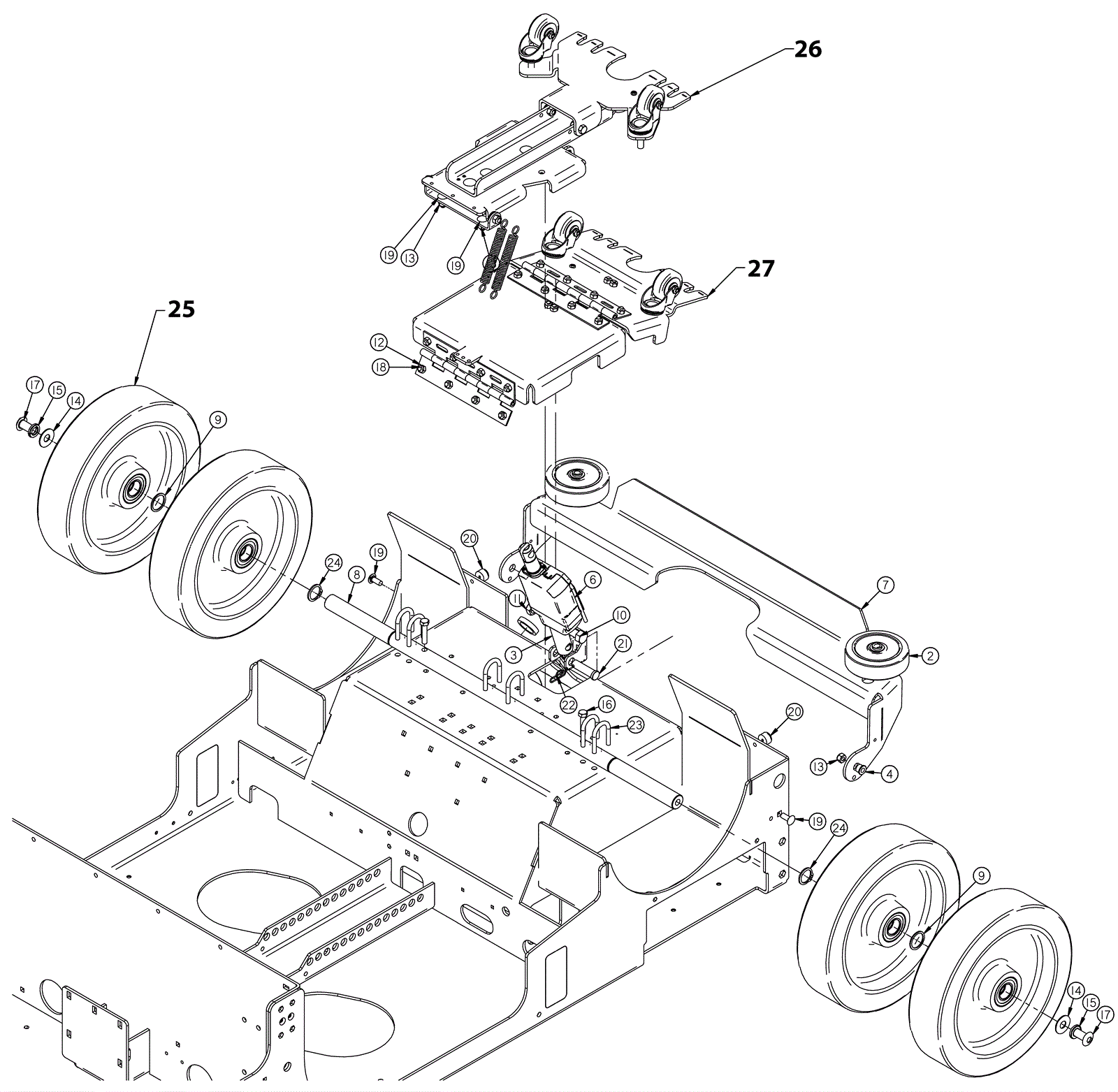

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
202-2098
|
4 inch wheel (gray) |
2 |
|
|
3 |
202-9736
|
Actuator adaptor |
1 |
|
|
4 |
202-3312
|
Flanged bearing |
2 |
|
|
6 |
202-3700
|
36V fast actuator |
1 |
|
|
7 |
202-9737
|
Rear bumper |
1 |
|
|
8 |
202-8381
|
Axle |
1 |
|
|
9 |
202-9738
|
Nylon washer 1 x 1.25 |
2 |
|
|
10 |
999-1326
|
Screw M12-1.75 x 40mm hex head |
1 |
|
|
12 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
7 |
|
|
13 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
9 |
|
|
14 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
2 |
|
|
15 |
999-0560
|
Washer 1/2 lock stainless steel |
2 |
|
|
16 |
999-1634
|
Bolt 5/16-18 x 1 1/2 hex head stainless steel |
2 |
|
|
17 |
999-1917
|
Screw 1/2-13 x 1 button socket cap SS |
2 |
|
|
18 |
202-2851
|
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
4 |
|
|
19 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
4 |
|
|
20 |
202-3275
|
Rubber bumper |
2 |
|
|
21 |
202-3591
|
Clevis pin 1/2 x 1 3/4 zinc |
1 |
|
|
22 |
202-2059
|
Cotter ring |
1 |
|
|
23 |
202-5603
|
U-bolt 1/4-20 x 1 |
6 |
|
|
24 |
202-9560
|
Ring,Retaining,1 inch Heavy Duty |
2 |
|
|
25a |
202-5601
|
Poly wheel assembly (gray) |
4 |
(gray) |
|
25b |
202-8252
|
Wheel Assembly,Rear,Poly,2.7 inchW Black Poly, 65 ShA, Groov |
4 |
(black) |
|
26 |
202-9728
|
Squeegee trail arm swing complete assembly |
1 |
|
|
27 |
202-9729
|
Fixed squeegee trail arm assembly |
1 |
|
|
N/S |
202-5316
|
Lifting bracket |
1 |
|
|
N/S |
999-1122
|
Nut M12-1.75 hex nylon insert lock stainless steel |
1 |
|
|
