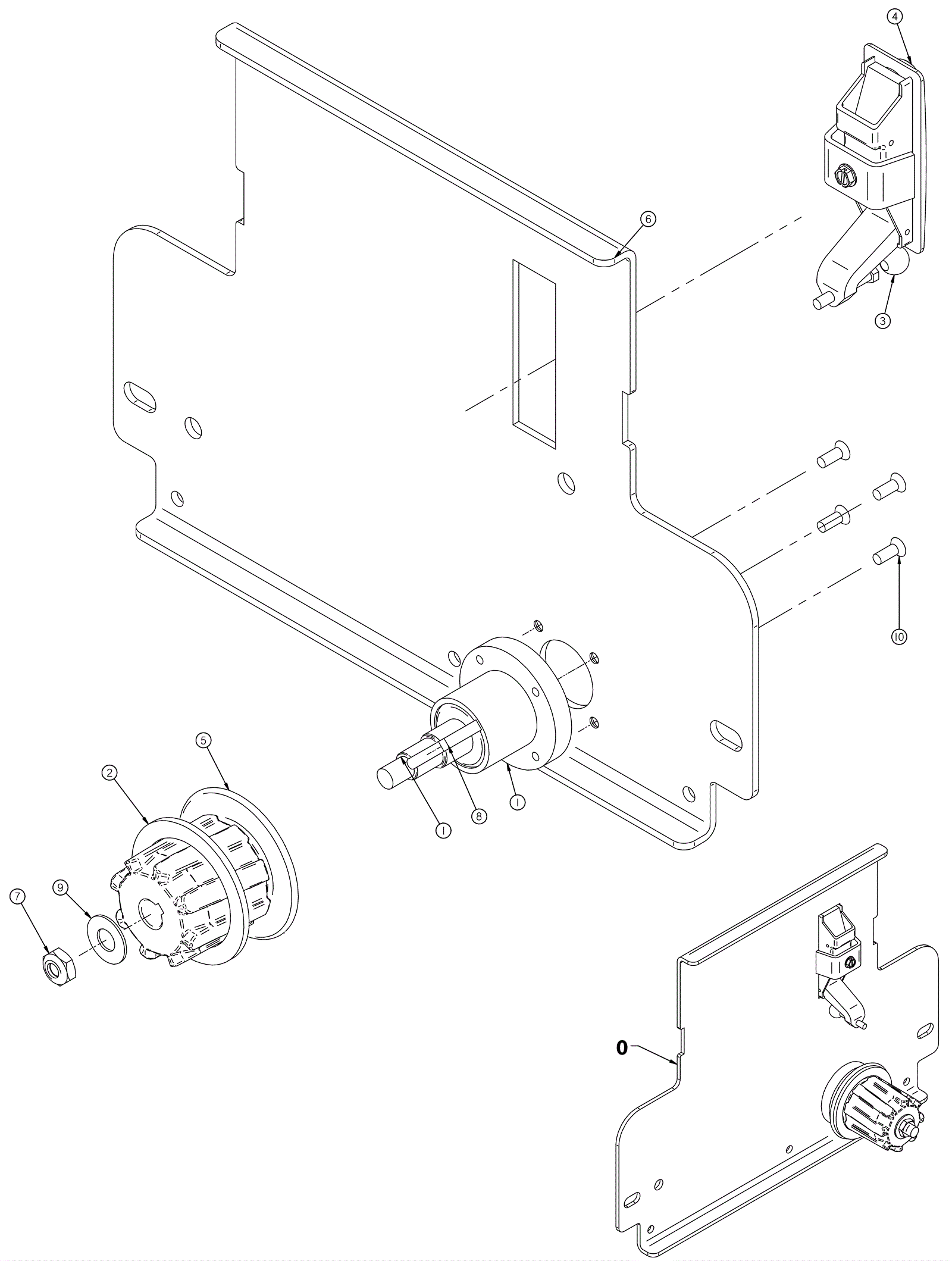

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
202-2174
|
Side support HD |
1 |
(includes 1-5a, 6-10) |
|
1 |
202-3168
|
Idler drive bearing |
1 |
|
|
2 |
202-7788
|
Seal,Cylindrical Driver |
1 |
|
|
3 |
202-3170
|
Grommet |
1 |
|
|
4 |
202-0404
|
Latch |
1 |
|
|
5a |
202-8374
|
Driver, Cylindrical Spiral, 8 Spline, Alum HC W/Gasket |
1 |
|
|
5b |
202-8375
|
Driver, Cylindrical Spiral, 8 Spline, Brass Brass |
1 |
(optional) |
|
6 |
202-2176
|
Drive cover |
1 |
|
|
7 |
999-1151
|
Nut 3/8-24 nylon insert jam lock stainless steel |
1 |
|
|
8 |
202-3153
|
Square keyway |
1 |
|
|
9 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
1 |
|
|
10 |
999-1009
|
Screw 10-32 x 1/2 flat head phillips stainless steel |
4 |
|
|
