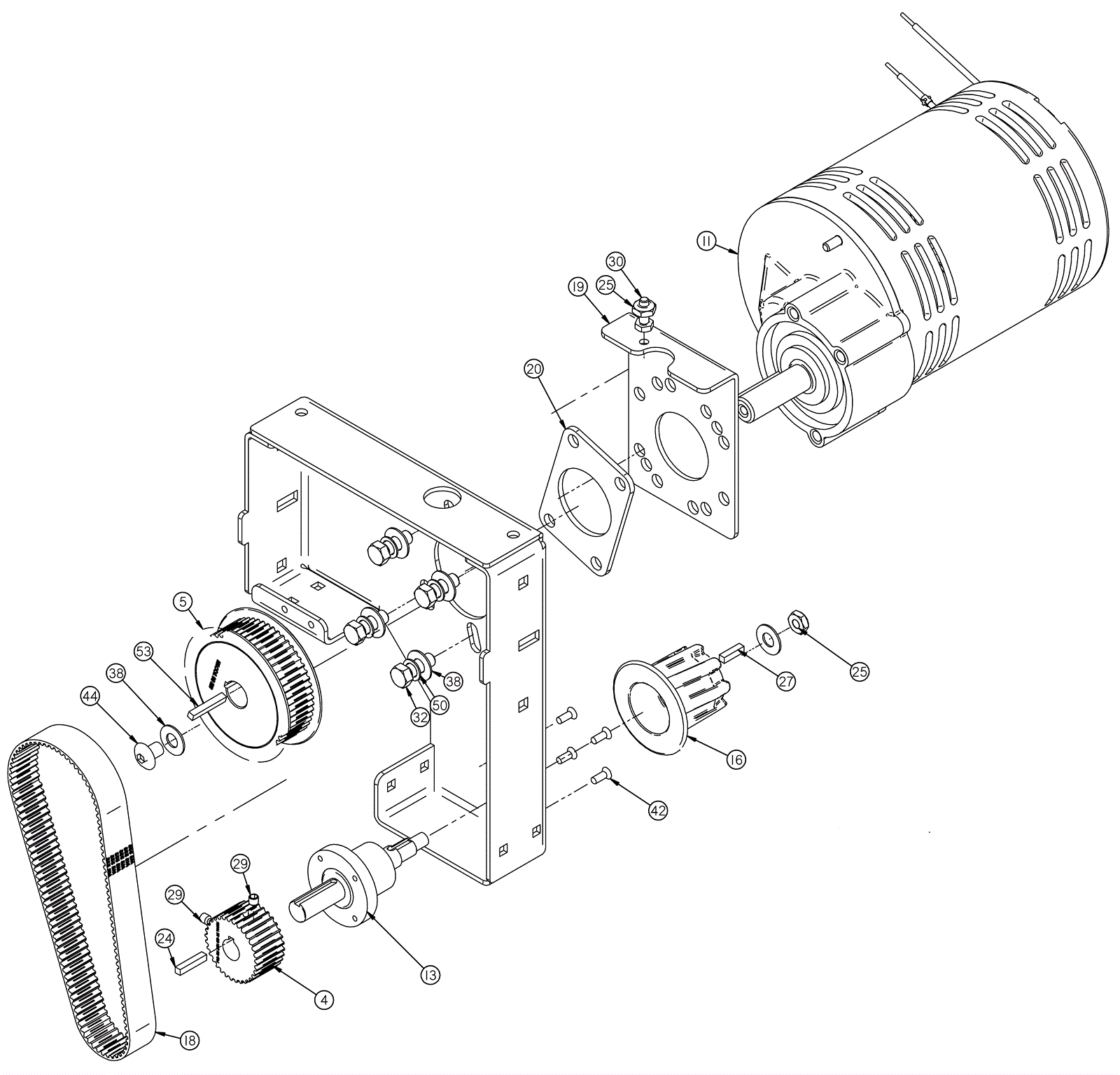

| # | Part | Description |
Req | Notes | Availability |
|---|
4 |
202-3140
|
32 toothed sprocket |
2 |
|
|
5 |
202-7059
|
Sprocket, Timing, 56 Tooth |
2 |
|
|
11 |
202-3145
|
36V brush motor |
2 |
|
|
13 |
202-3146
|
Bearing housing |
2 |
|
|
16a |
202-8374
|
Driver, Cylindrical Spiral, 8 Spline, Alum HC W/Gasket |
2 |
|
|
16b |
202-9723
|
Brass driver |
1 |
(optional) |
|
18 |
202-0023
|
Cylindrical belt |
2 |
|
|
19 |
202-9650
|
Motor adjustment bracket |
2 |
|
|
20 |
202-2175
|
Motor spacer |
2 |
|
|
24 |
202-0847
|
Square keyway |
2 |
|
|
25 |
999-1151
|
Nut 3/8-24 nylon insert jam lock stainless steel |
4 |
|
|
27 |
202-3153
|
Square keyway |
2 |
|
|
29 |
202-3154
|
Screw 1/4-20 x 1/4 set |
8 |
|
|
30 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
|
32 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
8 |
|
|
38 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
18 |
|
|
42 |
999-1009
|
Screw 10-32 x 1/2 flat head phillips stainless steel |
8 |
|
|
44 |
999-1481
|
Screw 3/8-16 x 1/2 button head stainless steel |
2 |
|
|
50 |
202-3158
|
Washer 3/8 inch serrated stainless steel |
8 |
|
|
53 |
202-0140
|
Steering shaft key |
2 |
|
|
N/S |
202-3148
|
Motor shield |
2 |
|
|
N/S |
202-9193
|
Plug,Hole,7/8 inch |
2 |
|
|
