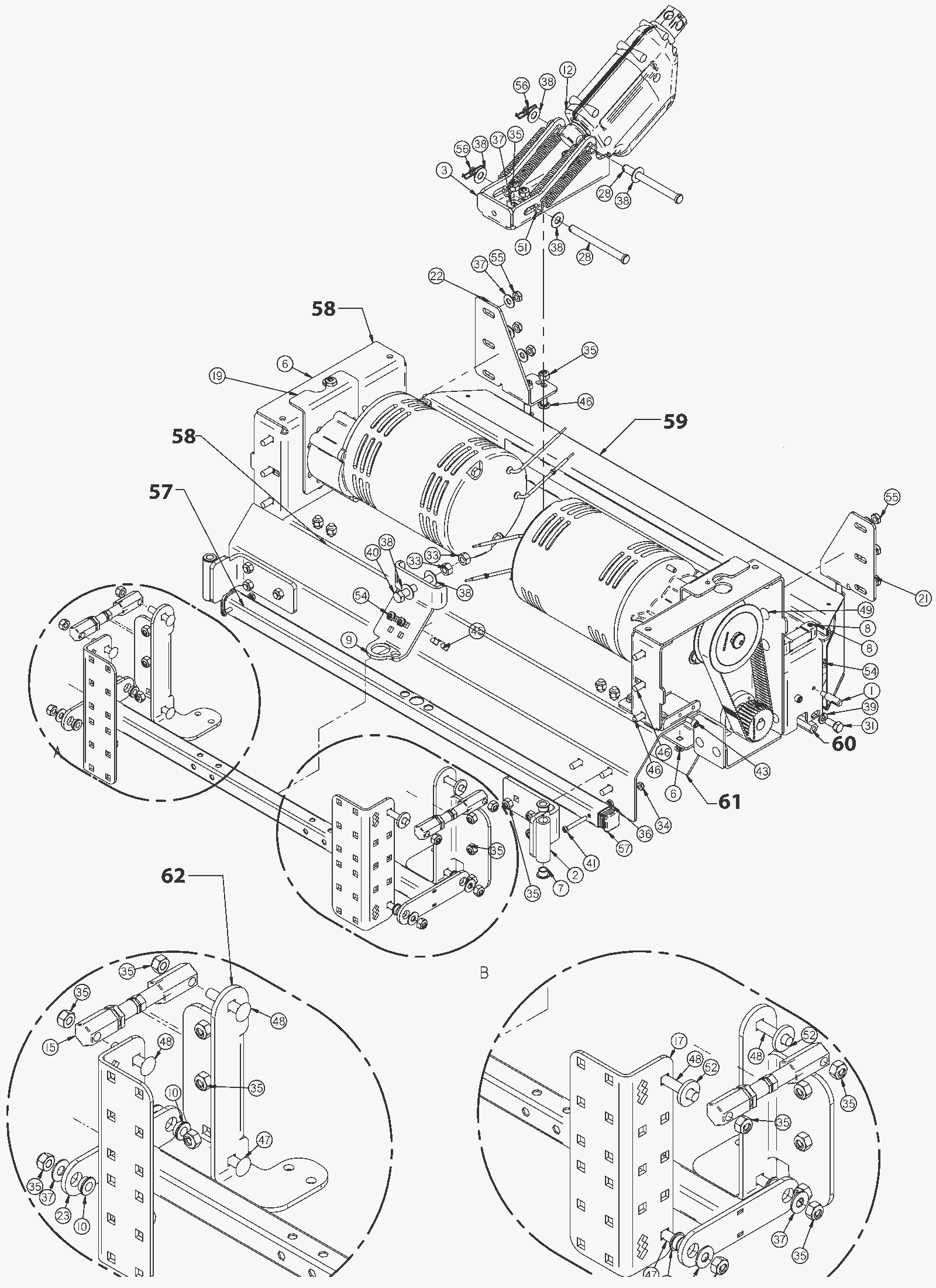

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
202-3136
|
Retaining pin |
2 |
|
|
2 |
202-3137
|
Hinge |
2 |
|
|
3 |
202-5126
|
Lifting bracket |
1 |
|
|
6 |
202-7077
|
Deck, Cylindrical, 29 inch |
1 |
|
|
7 |
202-0754
|
Flanged bearing |
4 |
|
|
8 |
202-5098
|
2 inch bolt on level |
2 |
|
|
9 |
202-3143
|
Bracket |
1 |
|
|
10 |
202-7656
|
Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S |
4 |
|
|
12 |
202-5589
|
36V actuator |
1 |
|
|
15 |
202-5803
|
Lateral Arm, Adjustable, 6.25 inch |
2 |
|
|
17 |
202-9644
|
Scrub arm bracket |
2 |
|
|
19 |
202-9650
|
Motor adjustment bracket |
2 |
|
|
21 |
202-9720
|
Left hand cylindrical rear support bracket |
1 |
|
|
22 |
202-9721
|
Right hand cylindrical rear support bracket |
1 |
|
|
23 |
202-8394
|
Arm, Lateral, Cylindrical |
1 |
|
|
28 |
202-9722
|
Clevis pin |
2 |
|
|
31 |
999-0556
|
Bolt 5/16-18 x 3/4 hex head stainless steel |
2 |
|
|
33 |
999-0635
|
Nut 3/8-16 hex stainless steel |
2 |
|
|
34 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
2 |
|
|
35 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
32 |
|
|
36 |
202-2067
|
Nut 10-32 keps |
2 |
|
|
37 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
14 |
|
|
38 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
18 |
|
|
39 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
40 |
999-0894
|
Screw 3/8-16 x 2 1/2 carriage head stainless steel |
1 |
|
|
41 |
999-1631
|
Screw 10-32 x 1 1/2 pan head phillips stainless steel |
2 |
|
|
43 |
202-3157
|
Screw 1/4 x 1/4 inch socket head stainless steel |
4 |
|
|
45 |
999-1442
|
Bolt 1/4-20 x 1/2 carriage stainless steel |
2 |
|
|
46 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
24 |
|
|
47 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
4 |
|
|
48 |
999-1370
|
Bolt 5/16-18 x 1 1/2 carriage head stainless steel |
4 |
|
|
49 |
999-1575
|
Bolt 5/16-18 x 1/2 carriage head zinc plated |
6 |
|
|
51 |
202-2208
|
Compression spring |
4 |
|
|
52 |
999-0120
|
Washer 3/8 SAE flat |
4 |
|
|
54 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
4 |
|
|
55 |
999-1019
|
Nut 5/16-18 hex jam stainless steel |
6 |
|
|
56 |
202-2036
|
Cotter pin |
2 |
|
|
57a |
202-2165
|
29 inch cylindrical feed tube |
1 |
(29 inch) |
|
57b |
202-2166
|
33 inch cylindrical feed tube |
1 |
(33 inch) |
|
57c |
202-9710
|
37 inch cylindrical feed tube |
1 |
(37 inch) |
|
58a |
202-9711
|
29 inch cylindrical shell |
1 |
(29 inch) |
|
58b |
202-9712
|
33 inch cylindrical shell |
1 |
(33 inch) |
|
58c |
202-9713
|
37 inch cylindrical shell |
1 |
(37 inch) |
|
59a |
202-7045
|
Hopper, 29 inch, SS |
1 |
(29 inch) |
|
59b |
202-7046
|
Hopper, 33 inch, SS |
1 |
(33 inch) |
|
59c |
202-9709
|
37 inch hopper |
1 |
(37 inch) |
|
60a |
202-2167
|
29 inch stiffener stainless steel |
1 |
(29 inch) |
|
60b |
202-2168
|
33 inch stiffener stainless steel |
1 |
(33 inch) |
|
60c |
202-2169
|
37 inch stiffener stainless steel |
1 |
(37 inch) |
|
61a |
202-2170
|
29 inch attinuator |
1 |
(29 inch) |
|
61b |
202-2171
|
33 inch attinuator |
1 |
(33 inch) |
|
61c |
202-2172
|
37 inch attinuator |
1 |
(37 inch) |
|
62a |
202-9714
|
29 inch right hand cylindrical bracket |
1 |
(29 inch) (right hand) |
|
62b |
202-9715
|
29 inch left hand cylindrical bracket |
1 |
(29 inch) (left hand) |
|
62c |
202-9716
|
33 inch right hand cylindrical bracket |
1 |
(33 inch) (right hand) |
|
62d |
202-9717
|
33 inch left hand cylindrical bracket |
1 |
(33 inch) (left hand) |
|
62e |
202-9718
|
37 inch right hand cylindrical bracket |
1 |
(37 inch) (right hand) |
|
62f |
202-9719
|
37 inch left hand cylindrical bracket |
1 |
(37 inch) (left hand) |
|
