| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

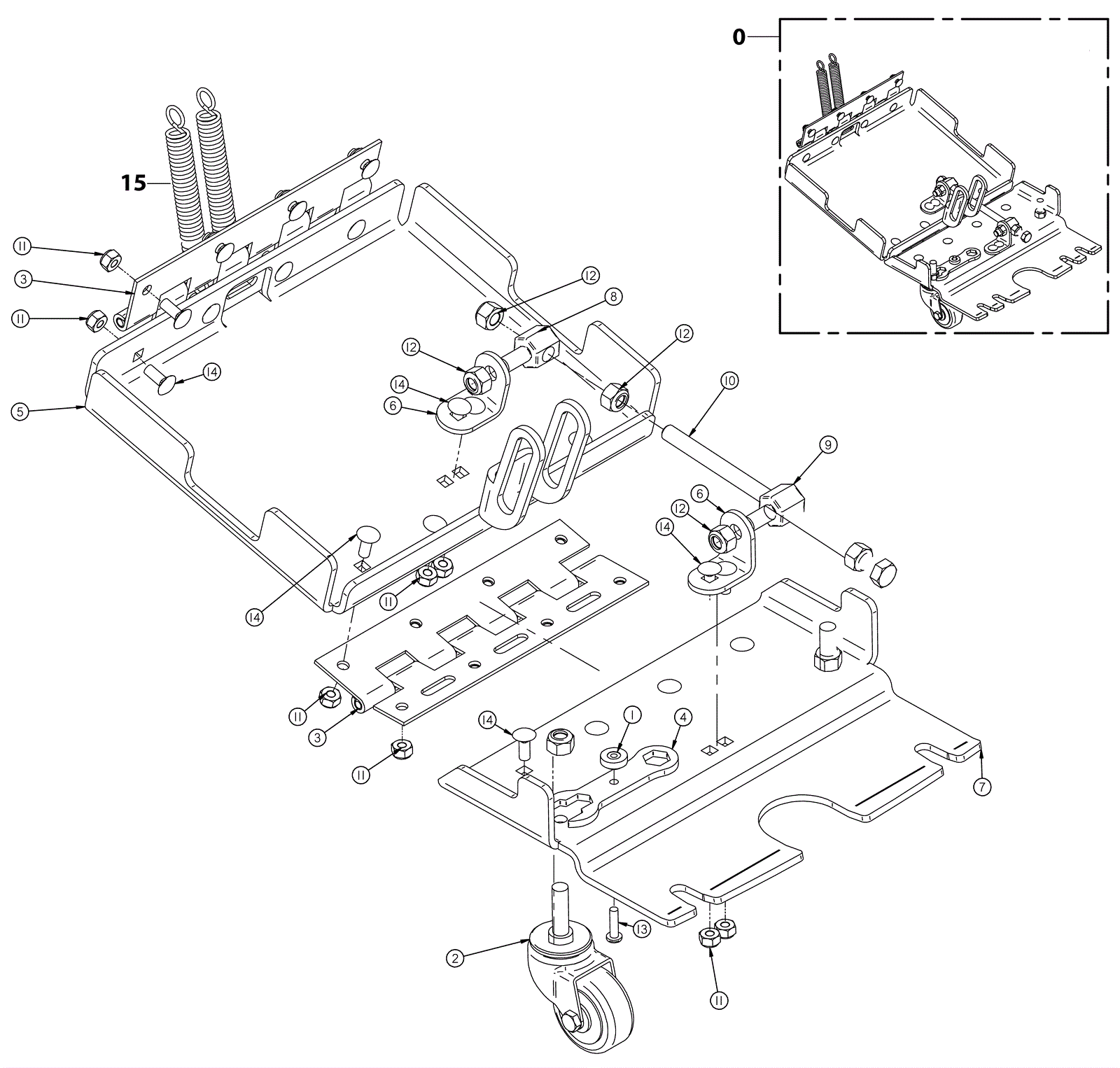

202-9729
|
Fixed squeegee trail arm assembly |
1 |
(includes 1-15) |
|
1 |
202-6417
|
Knob,Yellow |
1 |
|
|
2 |
202-3590
|
2 inch caster (gray) |
2 |
|
|
3 |
202-0403
|
Hinge |
2 |
|
|
4 |
202-9730
|
3 in 1 tool |
1 |
|
|
5 |
202-9731
|
Squeegee lift plate |
1 |
|
|
6 |
202-9732
|
Squeegee adjustment bracket |
2 |
|
|
7 |
202-9733
|
Squeegee triangle plate |
1 |
|
|
8 |
202-9734
|
Adjustable rod end anchor |
1 |
|
|
9 |
202-9735
|
Adjustable rod end |
1 |
|
|
10 |
999-1871
|
Bolt 3/8-16 x 5 hex head full thread tapping stainless steel |
1 |
|
|
11 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
17 |
|
|
12 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
7 |
|
|
13 |
999-1044
|
Screw 10-32 x 3/4 pan head phillips stainless steel |
1 |
|
|
14 |
202-2851
|
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
19 |
|
|
15 |
202-2208
|
Compression spring |
2 |
|
|
