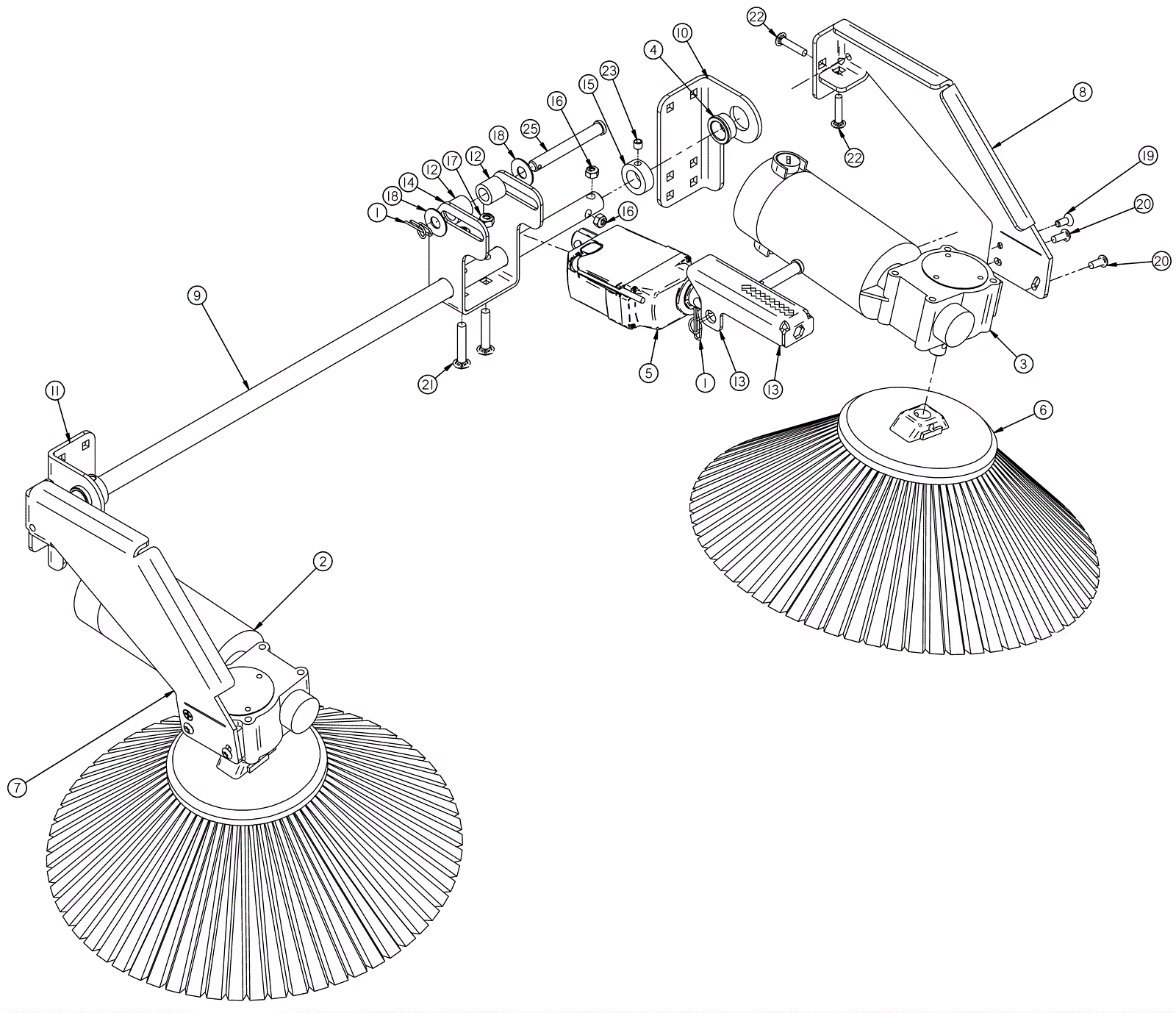

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
2 |
(rue ring cotter .4375) |
|
3 |
202-3066
|
36V motor left hand |
1 |
|
|
4 |
202-1397
|
Flanged bushing |
2 |
|
|
5 |
202-3700
|
36V fast actuator |
1 |
|
|
6 |
202-3699
|
Polypropylene side brush |
2 |
|
|
7 |
202-3701
|
Right hand side arm broom |
1 |
|
|
8 |
202-3702
|
Left hand side arm broom |
1 |
|
|
9 |
202-9705
|
Side broom axle shaft |
1 |
|
|
10 |
202-3703
|
Left hand side broom axle bracket |
1 |
|
|
11 |
202-3704
|
Right hand side broom axle bracket |
1 |
|
|
12 |
202-3705
|
Side broom actuator spacer |
2 |
|
|
13 |
202-3707
|
Side broom lifting bracket |
1 |
|
|
14 |
202-9706
|
Side broom pivot |
1 |
|
|
15 |
202-2216
|
Shaft collar with set screw |
2 |
|
|
16 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
|
17 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
18 |
999-1416
|
Washer 7/16 flat stainless steel |
2 |
|
|
19 |
999-0990
|
Screw 1/4-20 x 5/8 flat head phillips stainless steel |
2 |
|
|
20 |
999-1480
|
Screw 1/4-20 x 5/8 button head socket cap stainless steel |
4 |
|
|
21 |
202-3077
|
Carriage bolt 5/16 x 1-1/2 stainless steel |
2 |
|
|
22 |
999-1443
|
Bolt 1/4-20 x 1 1/4 carriage stainless steel |
2 |
|
|
23 |
999-0346
|
Screw 5/16-18 x 1/4 set cup point socket alloy plain finish |
2 |
|
|
25 |
202-3710
|
Clevis pin 7/16 x 3 1/2 inch |
1 |
|
|
N/S |
202-9707
|
Clevis pin |
1 |
|
|
