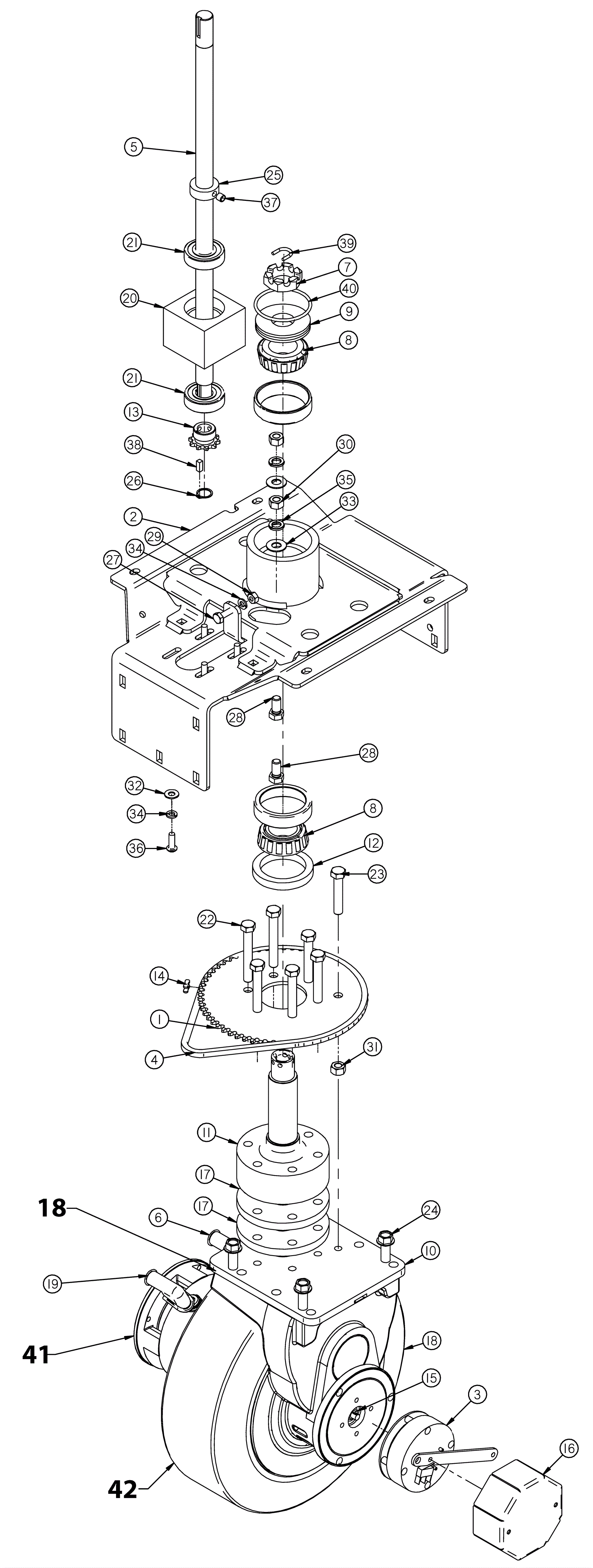

Front Wheel Drive Assembly

#PartDescription ReqNotesAvailability
1 202-1894 60 toothed sprocket 1
2 202-2968 Plate 1
3 202-5075 36V electric brake 1
4 202-1897 Steering chain 1
5 202-2527 Lower sheering shaft 1
6 202-2961 Terminal cover (black) 1
7 202-1166 Slotted castle nut 1
8 202-5067 Tapered roller bearing 2
9 202-5036 Preload sleeve 1
10 202-2962 Pivot plate 1
11 202-2308 Steering shaft spindle 1
12 202-5068 Bearing seal 1
13 202-0280 10 toothed sprocket 1
14 202-0283 Master link 1
15 202-9698 Brake key 1
16 202-9699 Brake cover 1
17 202-9700 Pivot spacer plate 2
18a 202-9701 36V front wheel drive 1
18b 202-9627 36V front drive wheel 1
19 202-2961 Terminal cover (black) 1
20 202-0771 Bearing block 1
21 202-0160 Bearing 2
22 999-9232 Screw 3/8-24 x 2 3/4 hex cap partial thread 6
23 999-1567 Screw 3/8-24 x 2 hex head stainless steel 1
24 999-9091 Screw M10-1.5 x 30mm hex head stainless steel 4
25 202-2216 Shaft collar with set screw 1
26 202-0281 Snap ring 1
27 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 1
28 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 2
29 999-0609 Nut 1/4-20 hex stainless steel 1
30 999-0635 Nut 3/8-16 hex stainless steel 2
31 999-0169 Nut 3/8-24 hex jam plain finish 1
32 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
33 999-0617 Washer 3/8 x 1 flat stainless steel 2
34 999-0632 Washer 1/4 split lock stainless steel 5
35 999-0659 Washer 3/8 medium split lock stainless steel 2
36 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 4
37 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish 1
38 202-0278 Square keyway 1
39 202-2967 S hook 1
40 202-5071 O-ring 1
41 202-9702 36V front wheel drive motor 1
42a 202-9703 12 inch wheel (grey) 1
42b 202-9704 12 inch wheel (black) 1
