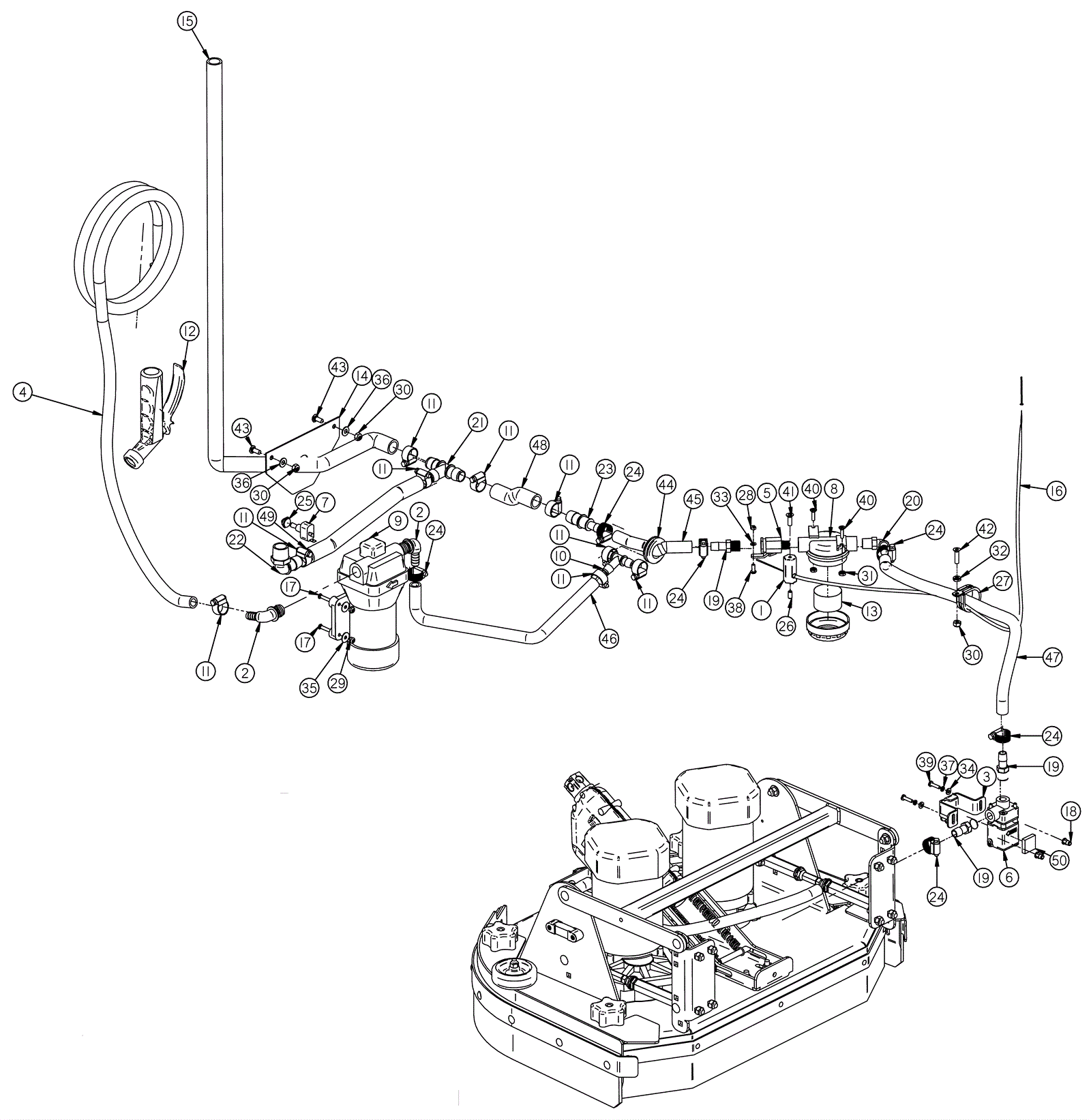

Pilot V2.0 Solution Hose Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-5567 Cable guide $70.07 1 usually ships 1-5 days
2 202-1008 Barbed elbow $20.79 2 usually ships 3-11 days
3 202-3058 Valve bracket $25.30 1 usually ships 3-11 days
4 202-0104 18 foot rubber hose (blue) $108.13 1 usually ships 3-11 days
5 202-3057 Ball valve $37.62 1 usually ships 3-11 days
6 202-3038 36V solenoid valve $157.52 1 usually ships 3-11 days
7 202-0097 Toggle switch $15.73 1 usually ships 3-11 days
8 202-3234 Inline filter $80.85 1 usually ships 3-11 days
9 202-2368 36V water jet pump $933.46 1 usually ships 3-11 days
10 202-0332 1/2 inch barbed tee $5.50 1 ships same day
11 202-1031 Clamp $6.71 9 usually ships 3-11 days
12 202-0103 Spray nozzle $84.59 1 usually ships 3-11 days
13 N/A Not available Call for price 1 (inline filter screen) usually ships 3-26 days
14 202-5568 Rear frame curtain $20.46 1 usually ships 1-5 days
15 202-5569 Rear sight tube $38.06 1 usually ships 3-11 days
16 202-5570 Pilot valve cable $20.46 1 usually ships 3-11 days
17 999-1570 Bolt 10-32 x 1 1/4 round head carriage stainless steel $1.97 3 usually ships 1-5 days
18 202-2589 Nut 10-32 crimp hex $5.50 2 usually ships 1-5 days
19 202-3236 Threaded barb $5.50 3 usually ships 3-11 days
20 202-3059 Elbow barb $5.50 1 ships same day
21 202-5571 3/4 inch plastic barb tee $5.50 1 usually ships 1-5 days
22 202-0884 Barbed elbow $4.95 1 usually ships 3-11 days
23 202-5145 Coupling $5.50 1 usually ships 1-5 days
24 202-0680 Hose clamp $5.50 6 usually ships 3-11 days
25 202-1865 Toggle switch protective boot (blue) $13.20 1 usually ships 3-11 days
26 999-1468 Screw 1/4-20 x 1/2 knurled point set alloy steel $0.99 1 ships same day
27 202-3175 P clamp $8.91 1 usually ships 1-5 days
28 999-0337 Nut 6-32 nylon insert lock stainless steel $0.99 1 ships same day
29 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 1 ships same day
30 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
31 202-2067 Nut 10-32 keps $5.50 1 usually ships 3-11 days
32 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 1 ships same day
33 999-0266 Washer #8 SAE flat stainless steel $0.99 1 ships same day
34 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
35 202-3316 Washer flat stainless steel $5.50 1 usually ships 3-11 days
36 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
37 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
38 202-2621 Screw 6-32 x 1/2 round head phillips $5.50 1 usually ships 3-11 days
39 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 1 ships same day
40 999-1189 Screw 10-32 x 3/4 flat head phillips stainless steel $0.99 2 ships same day
41 999-1571 Screw 1/4-20 x 3/4 flat head socket stainless steel $0.99 1 ships same day
42 202-3539 Screw 1/4-20 x 1 fillister head stainless steel $5.50 1 usually ships 1-5 days
43 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel $5.50 2 usually ships 3-11 days
44 202-2592 Grommet $5.50 1 usually ships 3-11 days
45 202-5206 Valve filter (OBSOLETE) Call for price 1 usually ships 1-5 days
46 202-5148 Tubing 1/2 x 9 inch $5.02 1 usually ships 1-5 days
47 202-5573 Tubing 1/2 x 23 inch $5.15 1 usually ships 1-5 days
48 202-5574 Tubing 3/4 x 5 inch $4.62 1 usually ships 1-5 days
49 202-5575 Tubing 3/4 x 14 inch (OBSOLETE) Call for price 1 usually ships 1-5 days
50 202-5208 Valve pad $5.50 1 usually ships 3-11 days
