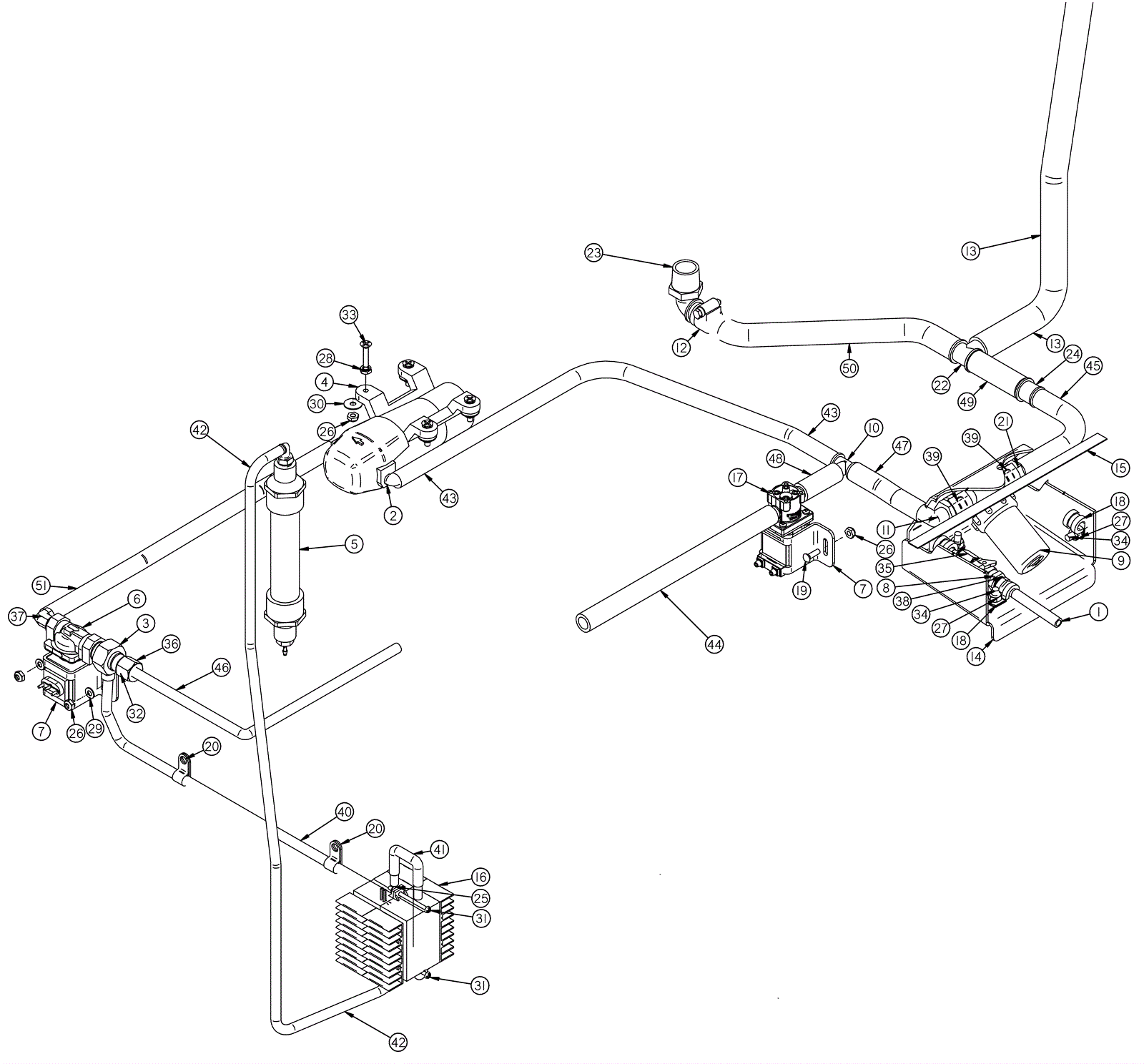

Pilot V2.0 Zero3 Assembly

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 1 (suds drain hose) usually ships 3-26 days
2 202-5846 Port 3/8 HB Elbow $14.41 1 usually ships 3-11 days
3 202-5892 Red Injector $268.51 1 usually ships 3-11 days
4 202-5895 Pump,12v, 35PSI, 1 GPM $354.64 1 usually ships 3-11 days
5 202-5903 Air Dryer Assembly $186.93 1 usually ships 3-11 days
6 202-3772 36V solenoid valve $324.61 1 usually ships 3-11 days
7 202-6068 Bracket, Valve $20.46 2 usually ships 3-11 days
8 202-5483 1/4 inch two way ball valve brass $51.26 1 usually ships 1-5 days
9 202-6442 Filter,Inline, Blue Filter $23.10 1 usually ships 3-11 days
10 202-0332 1/2 inch barbed tee $5.50 1 ships same day
11 202-0333 Elbow barb $5.50 1 ships same day
12 202-1031 Clamp $6.71 1 usually ships 3-11 days
13 202-5569 Rear sight tube $38.06 1 usually ships 3-11 days
14 202-9640 Service tray $151.58 1 usually ships 3-11 days
15 202-9641 36V LED light strip $19.58 1 usually ships 3-11 days
16 202-9687 Corona generator pack (pkg of 3) $764.17 2 usually ships 3-11 days
17 202-3038 36V solenoid valve $157.52 1 usually ships 3-11 days
18 202-9129 Clamp,Loop,5/8 inch,Rubber $5.50 3 usually ships 3-11 days
19 999-1508 Bolt 10-32 x 5/8 round carriage head stainless steel $0.99 1 usually ships 1-5 days
20 202-2431 P clamp $5.50 2 usually ships 1-5 days
21 202-3263 Fitting 1/2 x 1/2 inch $5.50 1 usually ships 1-5 days
22 202-5571 3/4 inch plastic barb tee $5.50 1 usually ships 1-5 days
23 202-0884 Barbed elbow $4.95 1 usually ships 3-11 days
24 202-5145 Coupling $5.50 1 usually ships 1-5 days
25 999-0337 Nut 6-32 nylon insert lock stainless steel $0.99 1 ships same day
26 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 7 ships same day
27 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
28 202-2067 Nut 10-32 keps $5.50 4 usually ships 3-11 days
29 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
30 202-3316 Washer flat stainless steel $5.50 4 usually ships 3-11 days
31 999-6720 Screw #6-32 x 2 phillips pan head stainless steel $0.99 2 usually ships 11-24 days
32 202-1205 Screw 10-32 x 5/8 flat head phillips machine stainless steel $5.50 1 usually ships 1-5 days
33 999-1471 Screw #10-21 x 1 flat head phillips stainless steel $0.99 4 ships same day
34 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.50 3 ships same day
35 202-9475 Fitting, 1/4 NPTF x 3/16 Barb $16.50 1 usually ships 3-11 days
36 202-9476 Fitting, 3/8 NPTF x 1/4 inch Barb $19.03 1 usually ships 3-11 days
37 202-5379 3/8 inch elbow $8.91 1 usually ships 3-11 days
38 202-9489 Fitting,1/4 inchNPTx1/4 inchBarb $5.50 1 usually ships 3-11 days
39 202-9642 3/4 inch clamp zinc $5.50 2 usually ships 3-11 days
40 202-4247 Hose 1/4 inch x 5 foot $45.87 1 usually ships 3-11 days
41 202-4247 Hose 1/4 inch x 5 foot $45.87 1 usually ships 3-11 days
42 202-4247 Hose 1/4 inch x 5 foot $45.87 1 usually ships 3-11 days
43 202-5106 Reinforced hose 1/2 x 60 inch $33.22 1 usually ships 1-5 days
44 202-5106 Reinforced hose 1/2 x 60 inch $33.22 1 usually ships 1-5 days
45 202-5106 Reinforced hose 1/2 x 60 inch $33.22 1 usually ships 1-5 days
46 202-5106 Reinforced hose 1/2 x 60 inch $33.22 1 usually ships 1-5 days
47 202-5106 Reinforced hose 1/2 x 60 inch $33.22 1 usually ships 1-5 days
48 202-5106 Reinforced hose 1/2 x 60 inch $33.22 1 usually ships 1-5 days
49 202-3776 Reinforced solution hose 3/4 inch x 5 foot Call for price 1 usually ships 3-11 days
50 202-3776 Reinforced solution hose 3/4 inch x 5 foot Call for price 1 usually ships 3-11 days
51 202-4249 Hose 3/8 inch x 5 foot Call for price 1 usually ships 3-11 days
