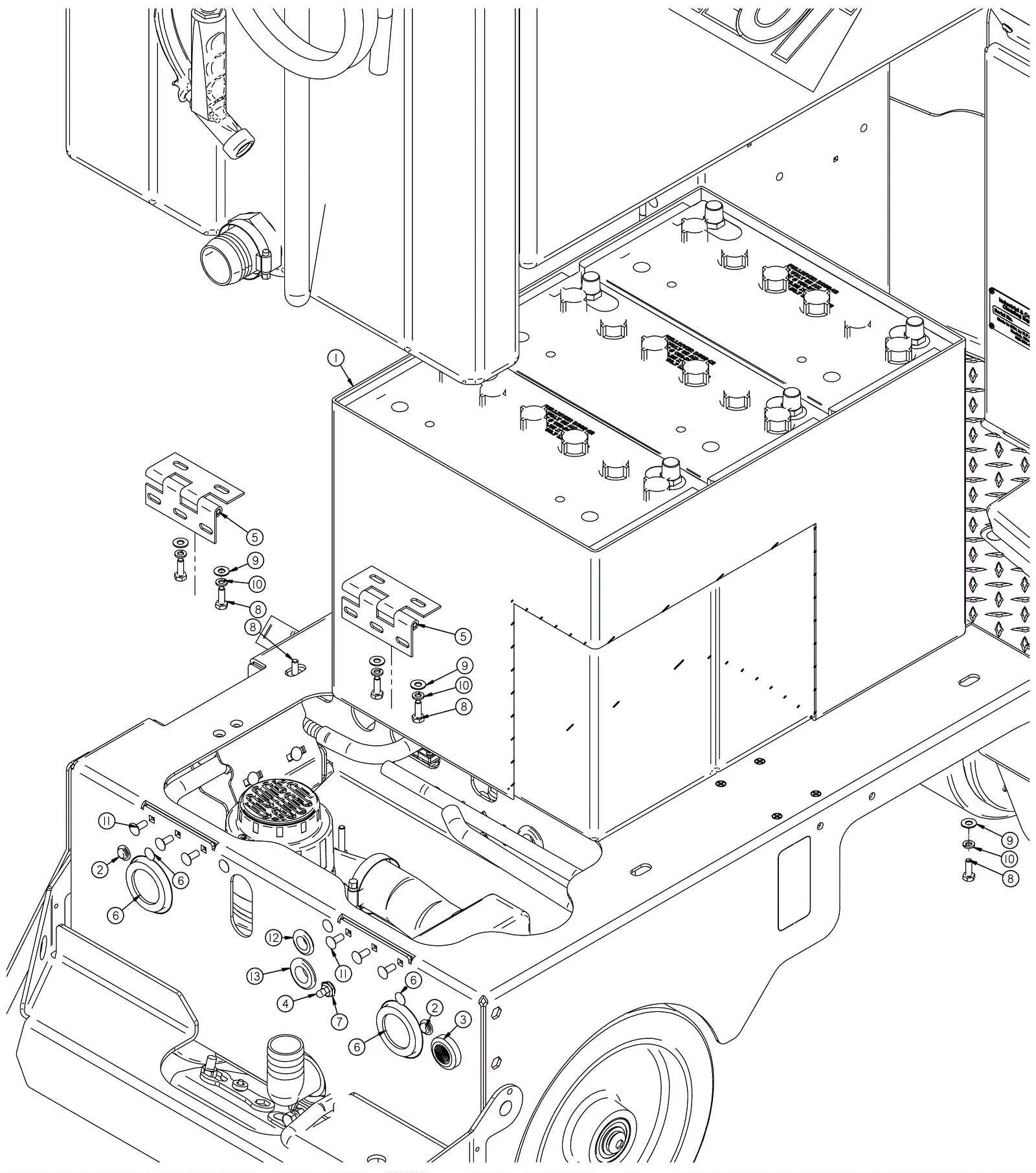

Pilot V2.0 Tank and Battery Attachment Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-5188 Battery tray $168.52 1 usually ships 1-5 days
2 202-0832 Full recovery indicator (red) $28.16 2 usually ships 3-11 days
3 202-5156 Alarm $27.61 1 usually ships 3-11 days
4 202-0097 Toggle switch $15.73 1 usually ships 3-11 days
5 202-5626 4 inch hinge stainless steel $30.25 2 usually ships 3-11 days
6 202-5546 9-60V LED head light $68.97 2 usually ships 1-5 days
7 202-1865 Toggle switch protective boot (blue) $13.20 1 usually ships 3-11 days
8 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 7 ships same day
9 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 7 ships same day
10 999-0632 Washer 1/4 split lock stainless steel $0.99 6 ships same day
11 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel $5.50 2 usually ships 3-11 days
12 N/A Not available Call for price 1 (grommet) usually ships 3-26 days
13 202-4003 Grommet $5.50 1 usually ships 1-5 days
