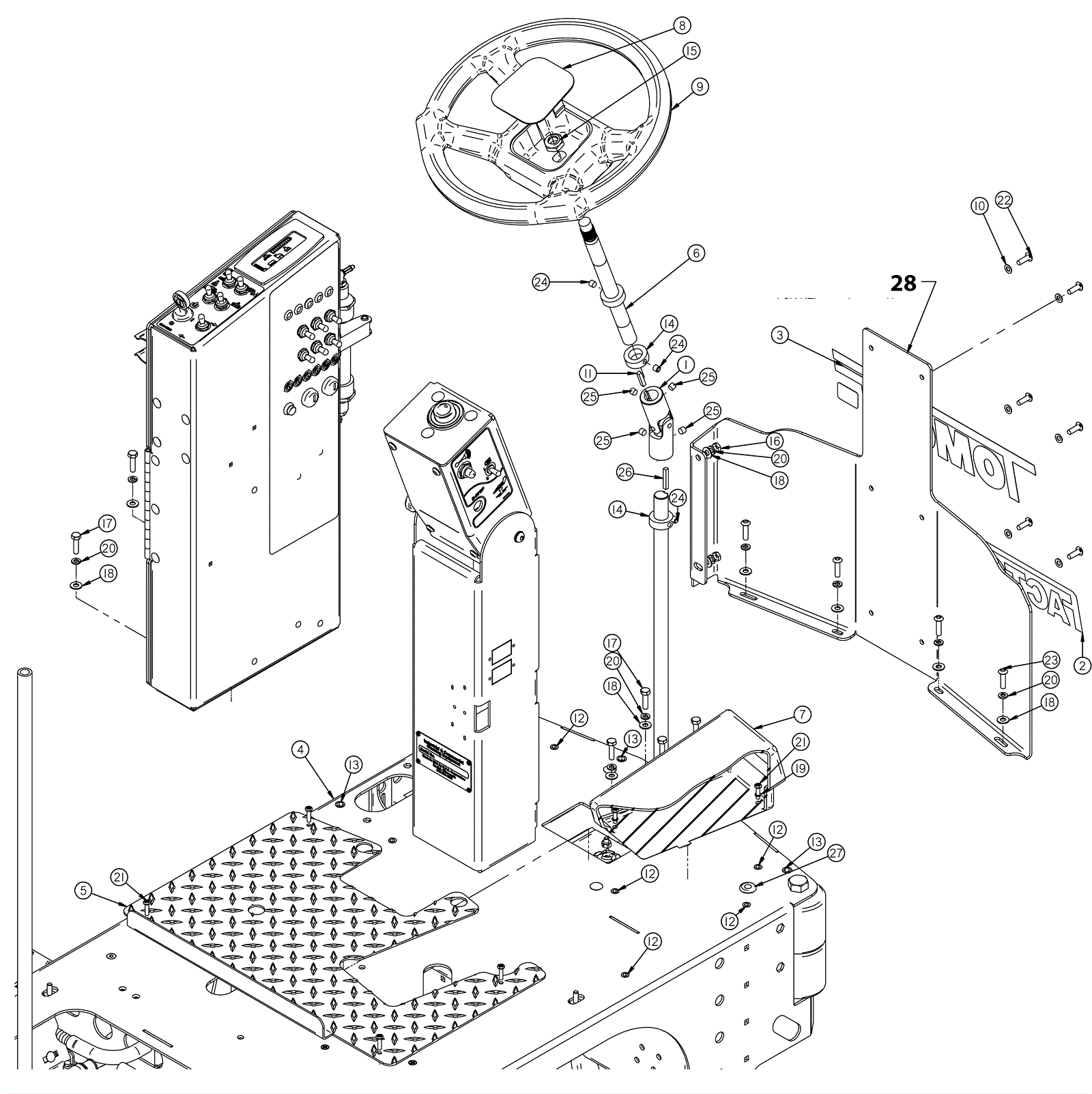

Pilot V2.0 Central Command and Upright Steering Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-0760 U-joint $131.23 1 usually ships 3-11 days
2 202-0436 Tomcat front decal $21.34 1 usually ships 3-11 days
3 202-3322 Tomcat decal $18.70 1 usually ships 1-5 days
4 202-9668 Main frame $3,032.81 1 usually ships 3-11 days
5 202-5607 Non skid floor plate $351.12 1 usually ships 1-5 days
6 202-5608 Upper steering shaft $75.13 1 usually ships 1-5 days
7 202-0362 Foot pedal assembly (includes potentiometer) $657.18 1 usually ships 3-11 days
8 202-0773 Steering cover $15.07 1 usually ships 1-5 days
9 202-0772 Steering wheel $147.73 1 usually ships 1-5 days
10 202-1196 Washer 17/64 x 21/64 nylon flat $5.50 6 ships same day
11 202-0847 Square keyway $5.50 1 usually ships 3-11 days
12 202-2589 Nut 10-32 crimp hex $5.50 5 usually ships 1-5 days
13 999-0190 Nut 1/4-20 hex plain finish $0.99 3 ships same day
14 202-2216 Shaft collar with set screw $5.50 3 usually ships 3-11 days
15 999-0968 Nut 5/8-11 nylon insert jam lock zinc plated $2.27 1 ships same day
16 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 5 ships same day
17 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 3 ships same day
18 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 12 ships same day
19 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
20 999-0632 Washer 1/4 split lock stainless steel $0.99 10 ships same day
21 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
22 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel $0.99 6 ships same day
23 999-1294 Screw 1/4-20 x 1 button head socket cap stainless steel $0.99 4 ships same day
24 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish $0.99 3 ships same day
25 999-1837 Screw 5/16-24 1/4 knurled point socket set $0.99 4 usually ships 1-5 days
26 202-0140 Steering shaft key $5.50 1 usually ships 3-11 days
27 202-3348 Rubber grommet $4.40 1 usually ships 3-11 days
28a 202-5690 Front apron (granite) $227.59 1 (granite) usually ships 1-5 days
28b 202-5691 Front apron (red gloss) $202.40 1 (red) usually ships 1-5 days
