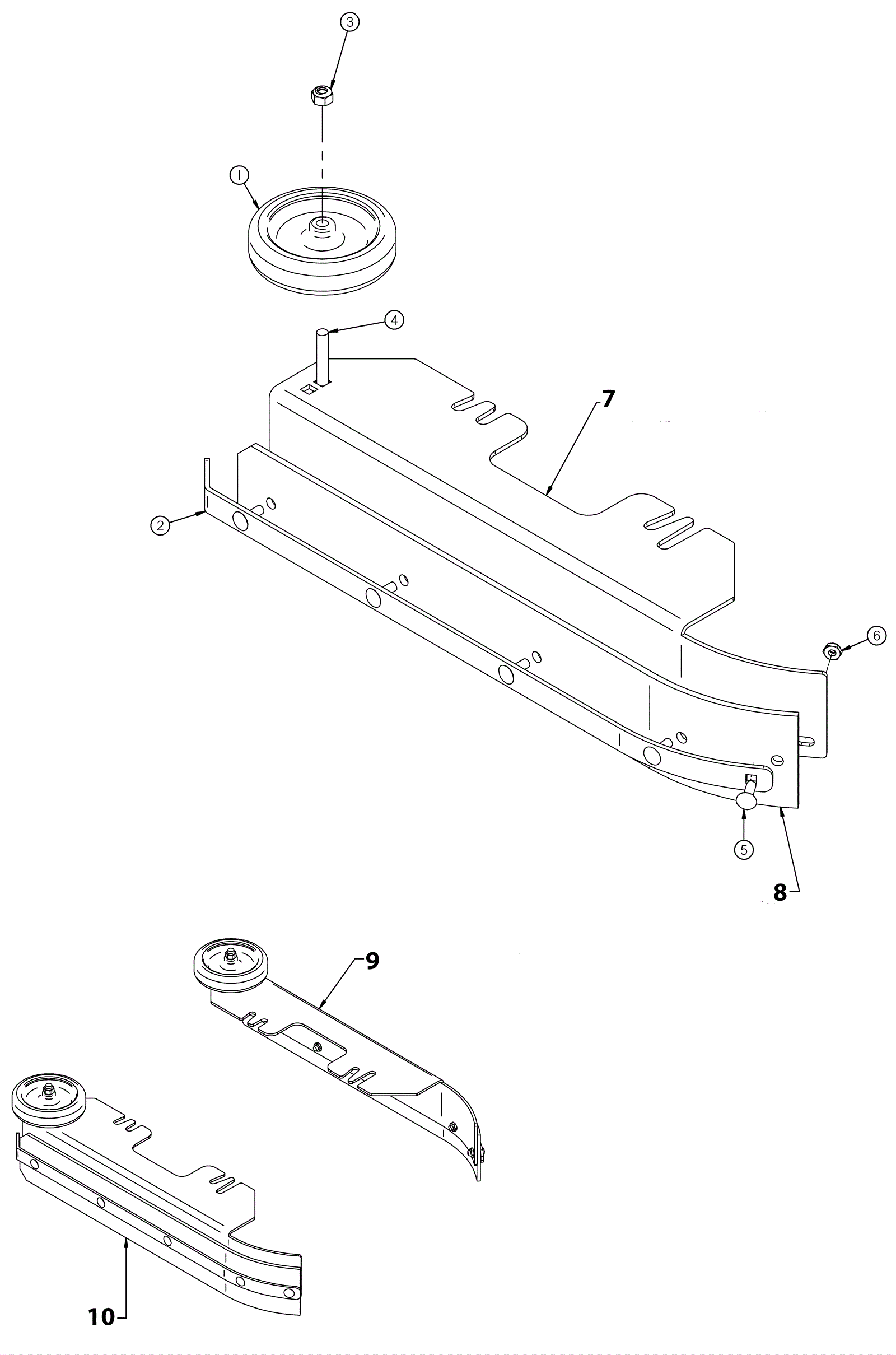

Pilot V2.0 Orbital Deck Wiper Assembly

#PartDescriptionPriceReqNotesAvailability
1 202-5079 4 inch wheel $9.79 1 usually ships 3-11 days
2 202-5083 Wiper band $41.14 1 ships same day
3 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 1 ships same day
4 202-3077 Carriage bolt 5/16 x 1-1/2 stainless steel $5.50 1 usually ships 3-11 days
5 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.50 5 ships same day
6 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 5 ships same day
7a 202-5082 Left side wiper shroud $88.99 1 (left hand) usually ships 3-11 days
7b 202-5081 Right side wiper shroud $88.99 1 (right hand) usually ships 3-11 days
8a 202-5112 linatex wiper $40.04 1 (standard) usually ships 3-11 days
8b 202-5112 linatex wiper $40.04 1 (optional) usually ships 3-11 days
8c 202-5113 Polyurethane wiper $48.40 1 (optional) usually ships 3-11 days
9 202-5683 Right hand shroud assembly $216.26 1 (right hand) usually ships 3-11 days
10 202-5684 Left hand shroud assembly $216.26 1 (left hand) usually ships 3-11 days
