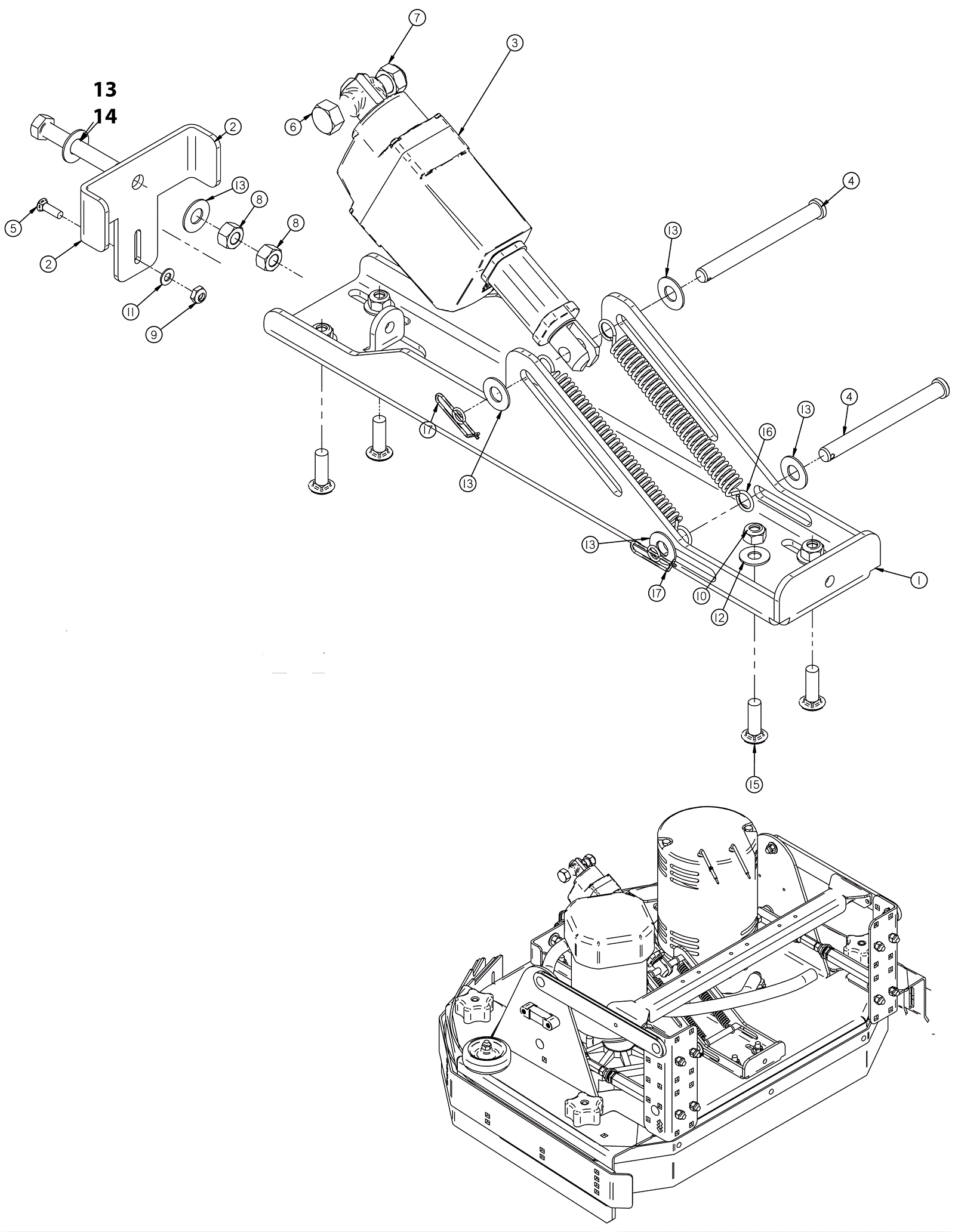

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
202-1942
|
Bracket |
$110.99
|
1 |
|
usually ships 3-11 days |
2 |
202-5587
|
Disk deck height adjustment |
$22.00
|
1 |
|
usually ships 1-5 days |
3 |
202-9645
|
36V actuator with connectors |
$587.29
|
1 |
|
usually ships 3-11 days |
4 |
202-1968
|
Clevis pin |
$7.04
|
2 |
|
usually ships 3-11 days |
5 |
999-1508
|
Bolt 10-32 x 5/8 round carriage head stainless steel |
$0.99
|
1 |
|
usually ships 1-5 days |
6 |
999-9223
|
Screw M12-1.75 x 60 hex cap zinc |
$3.23
|
1 |
|
usually ships 11-24 days |
7 |
999-1122
|
Nut M12-1.75 hex nylon insert lock stainless steel |
$3.47
|
1 |
|
usually ships 11-24 days |
8 |
999-0635
|
Nut 3/8-16 hex stainless steel |
$0.99
|
2 |
|
ships same day |
9 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
$0.99
|
1 |
|
ships same day |
10 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
4 |
|
ships same day |
11 |
999-0998
|
Washer #10 flat stainless steel |
$0.99
|
1 |
|
ships same day |
12 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
4 |
|
ships same day |
13 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
$1.82
|
6 |
|
ships same day |
14 |
999-0894
|
Screw 3/8-16 x 2 1/2 carriage head stainless steel |
$3.61
|
1 |
|
ships same day |
15 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
$1.34
|
4 |
|
ships same day |
16 |
202-2208
|
Compression spring |
$6.38
|
2 |
|
ships same day |
17 |
202-2036
|
Cotter pin |
$8.25
|
2 |
|
usually ships 3-11 days |
