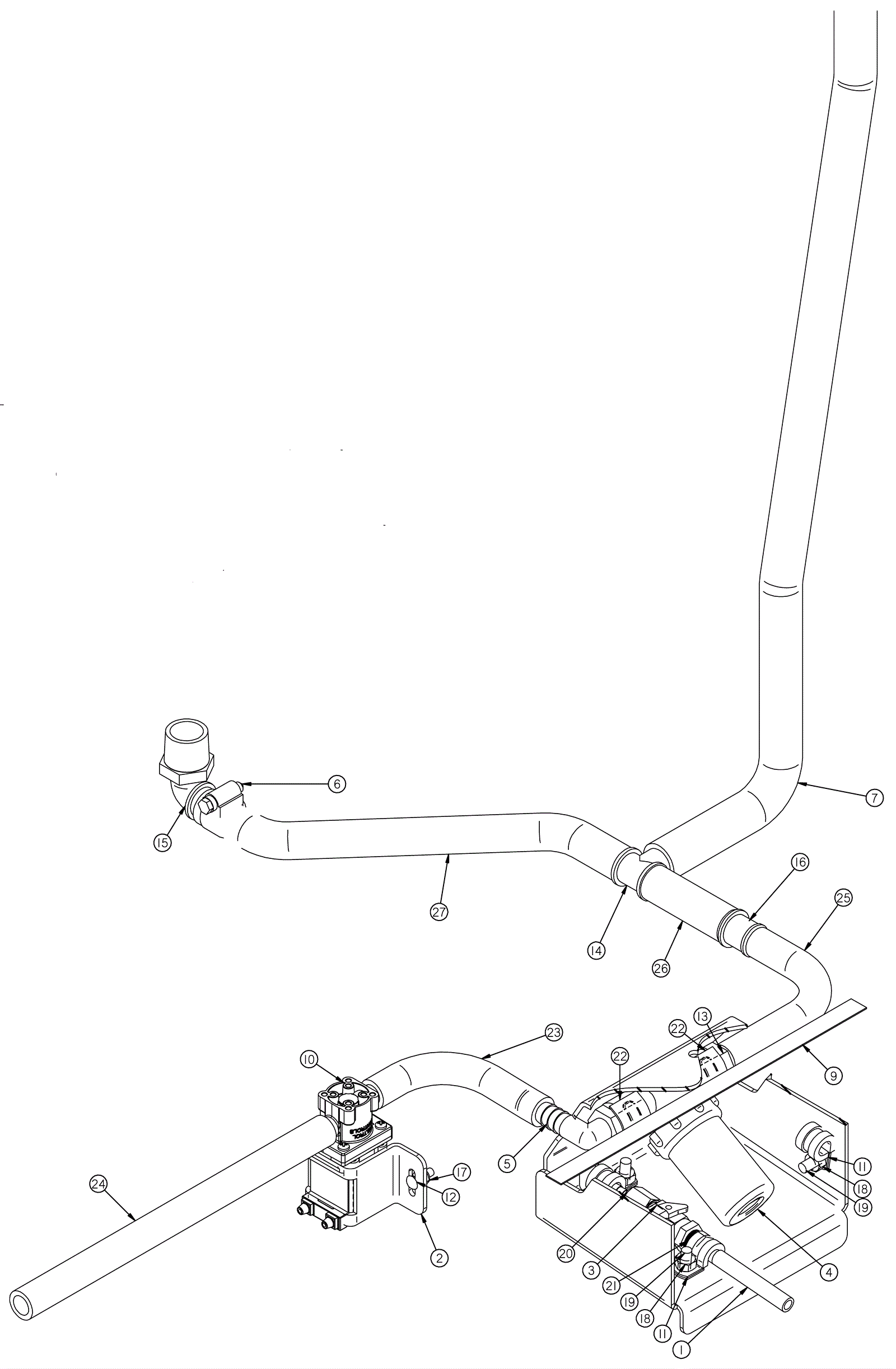

Pilot V2.0 Solution Assembly

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 1 (suds drain hose) usually ships 3-26 days
2 202-6068 Bracket, Valve $20.46 1 usually ships 3-11 days
3 202-5483 1/4 inch two way ball valve brass $51.26 1 usually ships 1-5 days
4 202-6442 Filter,Inline, Blue Filter $23.10 1 usually ships 3-11 days
5 202-0333 Elbow barb $5.50 1 ships same day
6 202-1031 Clamp $6.71 1 usually ships 3-11 days
7 202-5569 Rear sight tube $38.06 1 usually ships 3-11 days
8 202-9640 Service tray $151.58 1 usually ships 3-11 days
9 202-9641 36V LED light strip $19.58 1 usually ships 3-11 days
10 202-3038 36V solenoid valve $157.52 1 usually ships 3-11 days
11 202-9129 Clamp,Loop,5/8 inch,Rubber $5.50 3 usually ships 3-11 days
12 999-1508 Bolt 10-32 x 5/8 round carriage head stainless steel $0.99 1 usually ships 1-5 days
13 202-3263 Fitting 1/2 x 1/2 inch $5.50 1 usually ships 1-5 days
14 202-5571 3/4 inch plastic barb tee $5.50 1 usually ships 1-5 days
15 202-0884 Barbed elbow $4.95 1 usually ships 3-11 days
16 202-5145 Coupling $5.50 1 usually ships 1-5 days
17 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 1 ships same day
18 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
19 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.50 3 ships same day
20 202-9475 Fitting, 1/4 NPTF x 3/16 Barb $16.50 1 usually ships 3-11 days
21 202-9489 Fitting,1/4 inchNPTx1/4 inchBarb $5.50 1 usually ships 3-11 days
22 202-9642 3/4 inch clamp zinc $5.50 2 usually ships 3-11 days
23 202-5106 Reinforced hose 1/2 x 60 inch $33.22 1 usually ships 1-5 days
24 202-5106 Reinforced hose 1/2 x 60 inch $33.22 1 usually ships 1-5 days
25 202-5106 Reinforced hose 1/2 x 60 inch $33.22 1 usually ships 1-5 days
26 202-5106 Reinforced hose 1/2 x 60 inch $33.22 1 usually ships 1-5 days
27 202-5106 Reinforced hose 1/2 x 60 inch $33.22 1 usually ships 1-5 days
