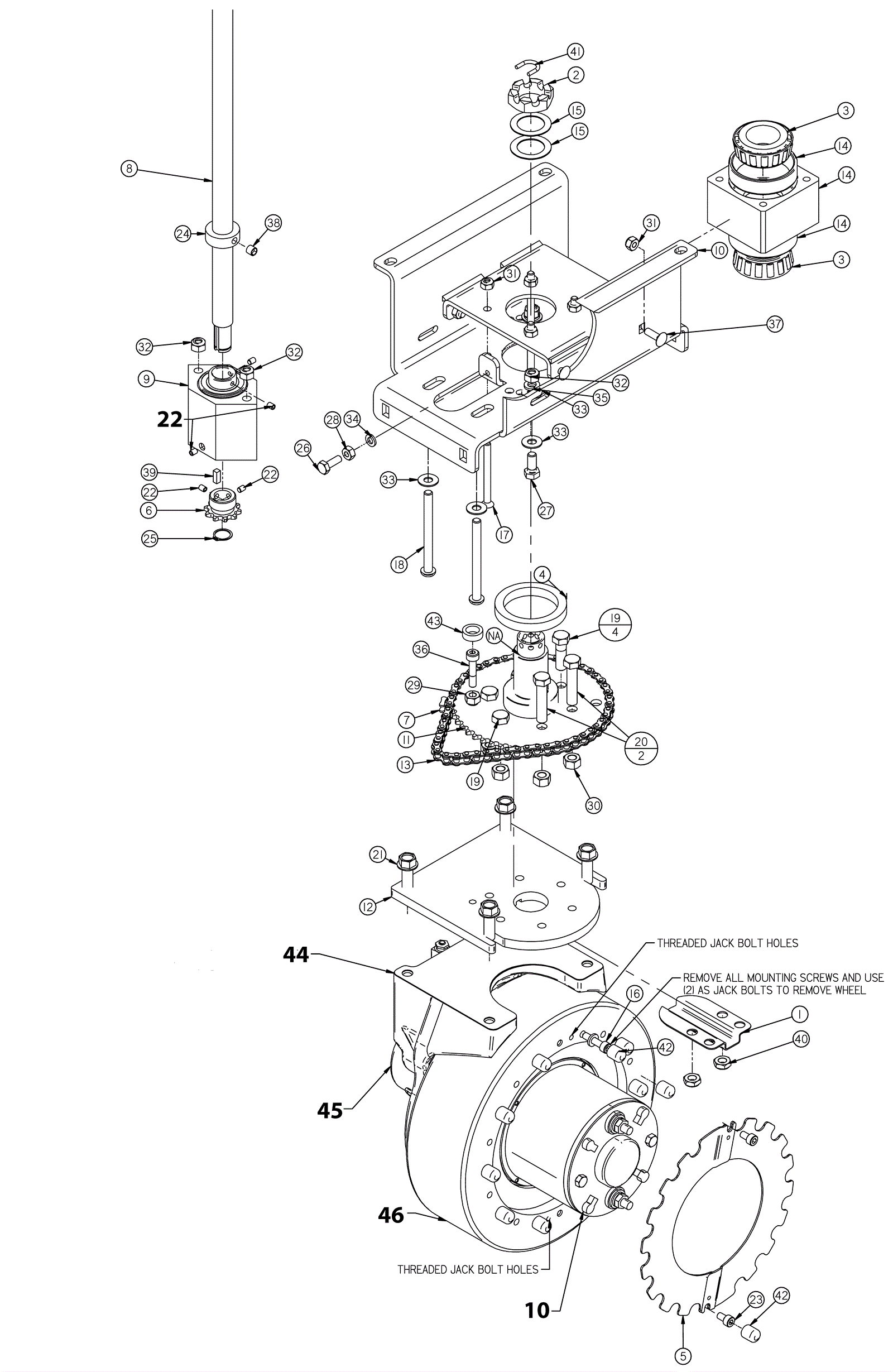

Pilot V2.0 Front Wheel Assembly-10 inch

#PartDescriptionPriceReqNotesAvailability
1 202-2960 Wire guide $23.76 1 usually ships 3-11 days
2 202-1166 Slotted castle nut $9.35 1 usually ships 3-11 days
3 202-5067 Tapered roller bearing $34.98 2 usually ships 3-11 days
4 202-5068 Bearing seal $5.50 1 usually ships 3-11 days
5 202-5069 Drive guard $15.07 2 usually ships 1-5 days
6 202-0280 10 toothed sprocket $31.13 1 usually ships 3-11 days
7 202-0283 Master link $5.50 1 usually ships 3-11 days
8 202-5547 Lower steering shaft $66.11 1 usually ships 1-5 days
9 202-5549 Bearing housing assembly $216.81 1 usually ships 3-11 days
10a 202-9639 10 inch drop plate assembly $285.01 1 usually ships 3-11 days
10b 202-5072 36V brush motor kit with springs $267.30 1 usually ships 1-5 days
11 202-5550 48 tooth steering sprocket $130.13 1 usually ships 1-5 days
12 202-5552 Pivot plate $110.00 1 usually ships 1-5 days
13 202-5553 Steering chain $22.00 1 usually ships 3-11 days
14 202-9637 Bearing block assembly $228.36 1 usually ships 3-11 days
15 202-1040 Washer $6.71 2 usually ships 3-11 days
16 999-1300 Screw M6-1 x 25mm socket head stainless steel $1.10 10 usually ships 1-5 days
17 999-9136 Screw 1/4-20 x 2 3/4 pan head phillips stainless steel $2.00 4 usually ships 1-5 days
18 999-1909 Screw 5/16-18 x 3 1/2 button socket cap SS $6.82 2 usually ships 1-5 days
19 999-9222 Screw 3/8-24 x 1 1/4 hex cap stainless steel $3.37 4 usually ships 11-24 days
20 999-0857 Screw 3/8-24 x 1 3/4 hex head stainless steel $1.51 2 ships same day
21 999-9091 Screw M10-1.5 x 30mm hex head stainless steel $4.14 4 ships same day
22 999-1635 Screw 10-32 x 1/4 socket set $0.99 2 ships same day
23 999-1908 Screw M6-1 x 10mm hex head stainless steel $0.99 2 ships same day
24 202-2216 Shaft collar with set screw $5.50 1 usually ships 3-11 days
25 202-0281 Snap ring $5.50 1 usually ships 3-11 days
26 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 1 ships same day
27 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 2 ships same day
28 999-0609 Nut 1/4-20 hex stainless steel $0.99 1 ships same day
29 999-0593 Nut 5/16-18 hex stainless steel $0.99 1 ships same day
30 999-0635 Nut 3/8-16 hex stainless steel $0.99 6 ships same day
31 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 8 ships same day
32 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
33 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 6 ships same day
34 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
35 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
36 999-1667 Screw 5/16-18 x 1 1/4 socket head stainless steel $1.85 1 ships same day
37 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.50 4 ships same day
38 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish $0.99 1 ships same day
39 202-0278 Square keyway $5.50 1 usually ships 3-11 days
40 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel $1.52 2 ships same day
41 202-2967 S hook $5.50 1 usually ships 3-11 days
42 202-9556 Cap, Vinyl, 1/2 inch $5.50 12 usually ships 3-11 days
43 202-3613 Tubing (clear) Call for price 1 usually ships 3-11 days
44 202-1893 Drive wheel assembly w/motor - includes brake $2,588.63 1 usually ships 3-11 days
45 202-5075 36V electric brake $701.78 1 usually ships 3-11 days
46a 202-5039 10 inch tire and wheel (black) $837.76 1 ships same day
46b 202-3385 Replacement tire ONLY $1,104.62 1 (optional) usually ships 3-11 days
46c 202-5039 10 inch tire and wheel (black) $837.76 1 (optional) ships same day
46d 202-5658 P-7 tire (OBSOLETE) Call for price 1 (optional) usually ships 1-5 days
