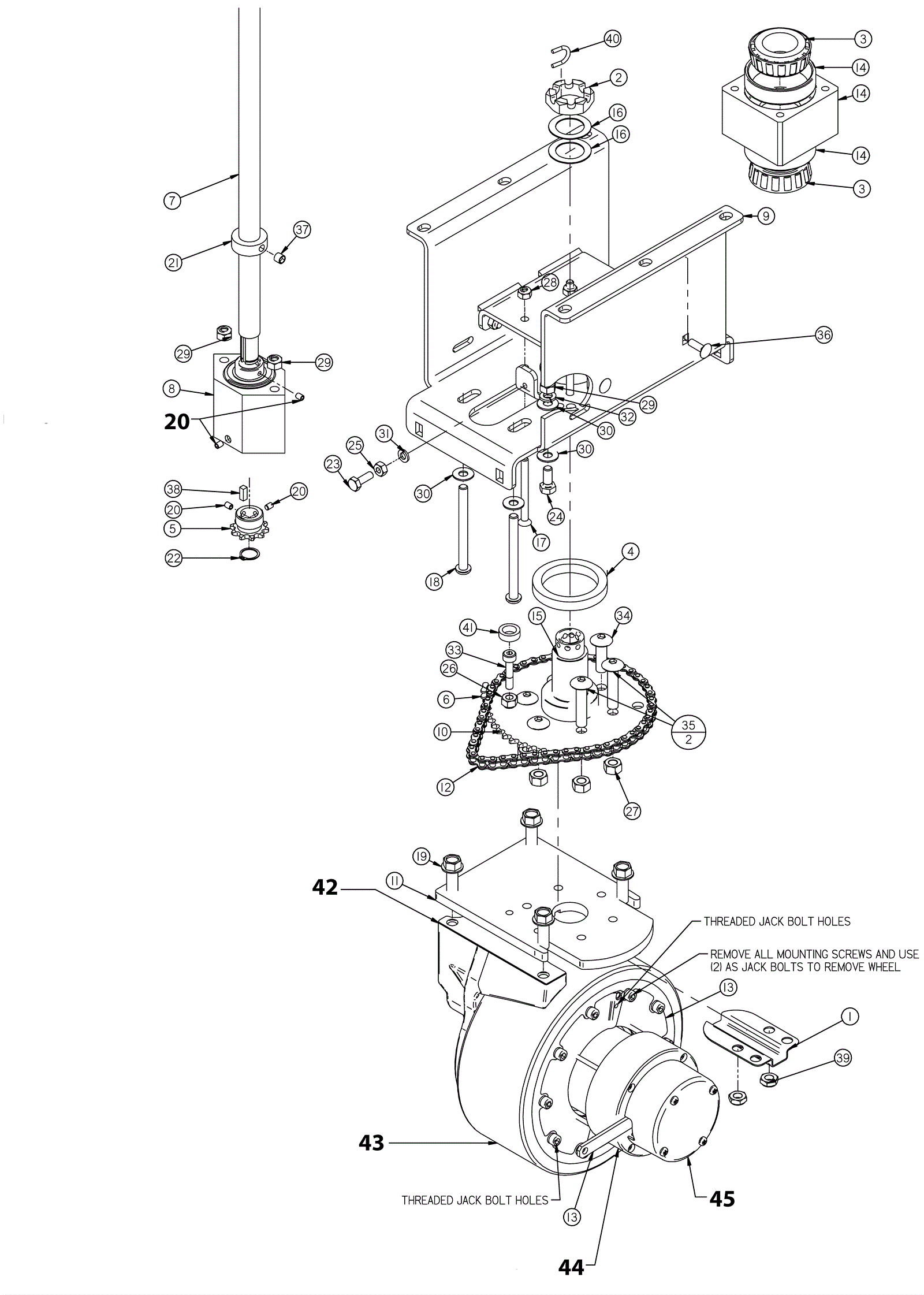

Pilot V2.0 Front Wheel Assembly-8 inch

#PartDescriptionPriceReqNotesAvailability
1 202-2960 Wire guide $23.76 1 usually ships 3-11 days
2 202-1166 Slotted castle nut $9.35 1 usually ships 3-11 days
3 202-5067 Tapered roller bearing $34.98 2 usually ships 3-11 days
4 202-5068 Bearing seal $5.50 1 usually ships 3-11 days
5 202-0280 10 toothed sprocket $31.13 1 usually ships 3-11 days
6 202-0283 Master link $5.50 1 usually ships 3-11 days
7 202-3609 8 inch steering shaft $103.95 1 usually ships 3-11 days
8 202-5549 Bearing housing assembly $216.81 1 usually ships 3-11 days
9 202-9636 8 inch front drive drop plate $351.34 1 usually ships 3-11 days
10 202-5550 48 tooth steering sprocket $130.13 1 usually ships 1-5 days
11 202-3611 Pivot plate $118.03 1 usually ships 3-11 days
12 202-5553 Steering chain $22.00 1 usually ships 3-11 days
13 202-3612 Drive guard Call for price 2 usually ships 3-11 days
14 202-9637 Bearing block assembly $228.36 1 usually ships 3-11 days
15 202-9638 Steering spindle $126.83 1 usually ships 3-11 days
16 202-1040 Washer $6.71 2 usually ships 3-11 days
17 999-9136 Screw 1/4-20 x 2 3/4 pan head phillips stainless steel $2.00 4 usually ships 1-5 days
18 999-1909 Screw 5/16-18 x 3 1/2 button socket cap SS $6.82 2 usually ships 1-5 days
19 999-9136 Screw 1/4-20 x 2 3/4 pan head phillips stainless steel $2.00 4 usually ships 1-5 days
20 999-1635 Screw 10-32 x 1/4 socket set $0.99 2 ships same day
21 202-2216 Shaft collar with set screw $5.50 1 usually ships 3-11 days
22 202-0281 Snap ring $5.50 1 usually ships 3-11 days
23 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 1 ships same day
24 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 2 ships same day
25 999-0609 Nut 1/4-20 hex stainless steel $0.99 1 ships same day
26 999-0593 Nut 5/16-18 hex stainless steel $0.99 1 ships same day
27 999-0635 Nut 3/8-16 hex stainless steel $0.99 6 ships same day
28 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 8 ships same day
29 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
30 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 6 ships same day
31 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
32 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
33 999-1667 Screw 5/16-18 x 1 1/4 socket head stainless steel $1.85 1 ships same day
34 999-1911 Screw 3/8-16 x 1 1/4 button socket cap $2.22 4 ships same day
35 999-1912 Screw 3/8-16 x 1 3/4 button socket cap SS $3.94 2 usually ships 1-5 days
36 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.50 4 ships same day
37 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish $0.99 1 ships same day
38 202-0278 Square keyway $5.50 1 usually ships 3-11 days
39 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel $1.52 2 ships same day
40 202-2967 S hook $5.50 1 usually ships 3-11 days
41 202-3613 Tubing (clear) Call for price 1 usually ships 3-11 days
42 202-3614 Front drive wheel with hardware $1,366.53 1 usually ships 3-11 days
43 202-8263 8 inch Tire & Wheel,Non Marking $751.96 1 usually ships 3-11 days
44a 202-3618 36V front wheel motor $560.45 1 usually ships 3-11 days
44b 202-3615 Brush kit Call for price 1 usually ships 3-11 days
45 202-5075 36V electric brake $701.78 1 usually ships 3-11 days
