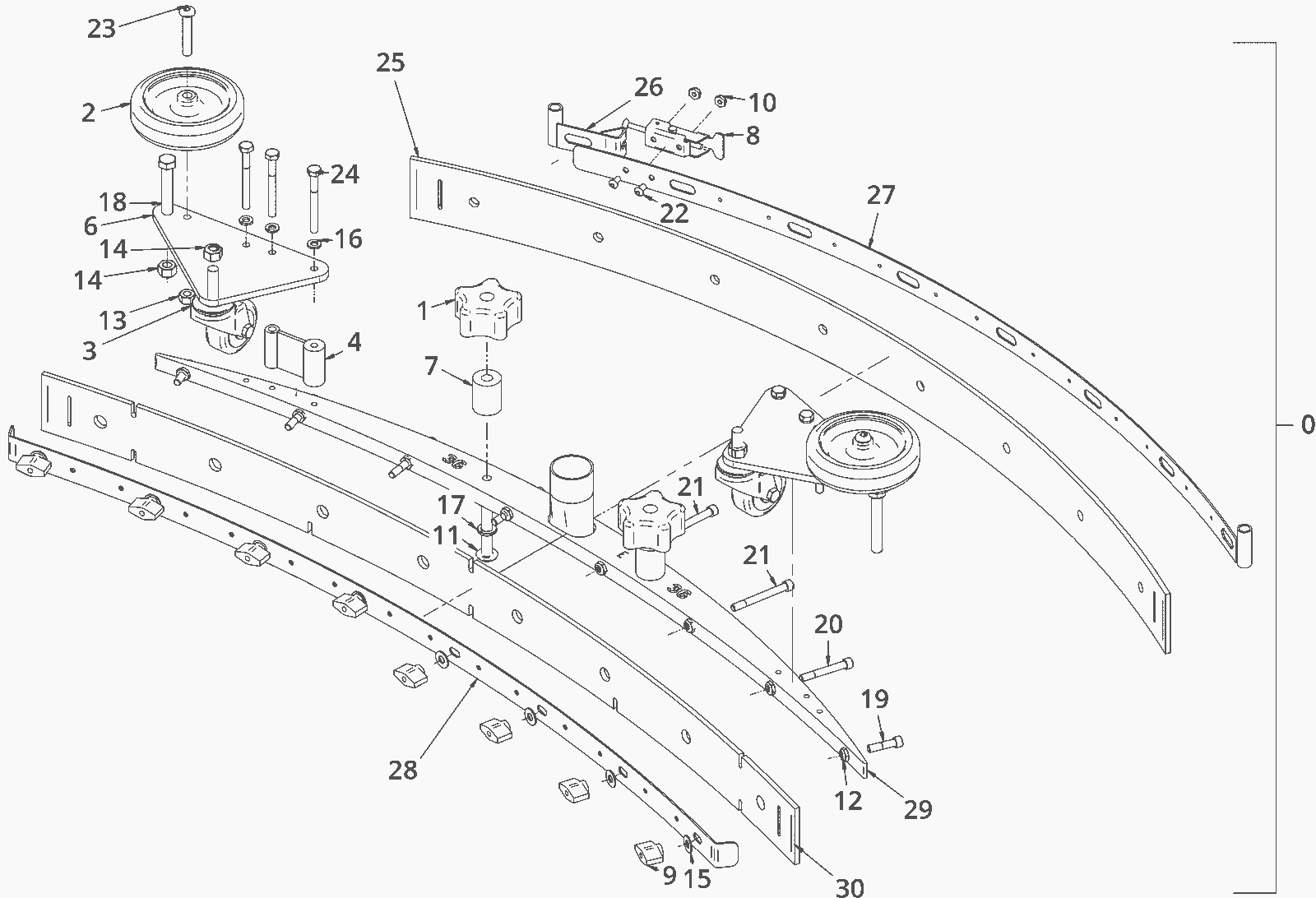

Squeegee Assembly

#PartDescription ReqNotesAvailability
0a 202-7506 Squeegee, Complete Assembly, 33 inch with linatex blades 1 (includes 1-24, 25a, 26a, 27a, 28a, 29a, 30a)
0b 202-7608 Squeegee, Complete Assembly, 36 inch  with linatex blades 1 (includes 1-24, 25d, 26b, 27b, 28b, 29b, 30d)
0c 202-8018 Squeegee, Complete Assembly, 39 inch with linatex blades 1 (includes 1-24, 25g, 26c, 27c, 28c, 29c, 30g)
0d 202-8097 Squeegee, Complete Assembly, 42 inch with linatex blades 1 (includes 1-24, 25j, 26d, 27d, 28d, 29d, 30j)
1 202-5078 Star knob 2
2 202-5079 4 inch wheel 2
3 202-3590 2 inch caster (gray) 2
4 202-7598 Bracket, Band Holder 2
6 202-7610 Bracket, Squeegee Caster 2
7 202-7619 Standoff, 1.25 inch 2
8 202-2898 Latch 1
9 202-0711 Clamping knob (pkg of 2) 8
10 999-1269 Nut 10-32 nylon insert jam stainless steel 2
11 999-1273 Screw 3/8-16 x 3 1/2 button head socket stainless steel 2
12 999-0304 Nut 1/4-20 nylon lock jam stainless steel 8
13 999-0423 Nut 5/16-18 nylon insert lock stainless steel 2
14 999-1482 Nut 3/8-16 nylon lock stainless steel 4
15 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 8
16 999-0632 Washer 1/4 split lock stainless steel 6
17 999-0659 Washer 3/8 medium split lock stainless steel 2
18 202-3193 Bolt 3/8-16 x 3 inch hex head stainless steel 2
19 202-9397 Screw,SHC,1/4-20x1 inch 2
20 202-3211 Screw 1/4-20 x 1-3/4 inch socket stainless steel 2
21 999-1839 Screw 1/4-20 x 2 1/4 socket cap stainless steel 4
22 202-3197 Screw 10-32 x 3/8 inch button head socket stainless steel 2
23 999-1913 Screw 5/16-18 x 1 3/4 button head socket cap stainless steel 2
24 202-3198 Screw 1/4-20 x 2-1/2 inch hex head stainless steel 6
25a 202-4207 Squeegee blade 33 inch linatex rear 1
25b 202-7507 Squeegee Blade, Rear, 33 inch Gum 1
25c 202-7508 Squeegee Blade, Rear, 33 inch Urethane 1
25d 202-7612 Squeegee Blade, Rear,linatex 1 (36 inch)
25e 202-3587 Squeegee blade gum rubber rear 1 (36 inch)
25f 202-7613 Squeegee Blade, Rear,Urethane 1 (36 inch)
25g 202-3585 Squeegee blade 39 inch linatex rear 1
25h 202-8019 Squeegee Blade, Rear, 39 inch Gum 1
25i 202-8020 Squeegee Blade, Rear, 39 inch Urethane 1
25j 202-8100 Squeegee Blade, Rear, 42 inch linatex 1
25k 202-4198 Squeegee blade 42 inch (1060 mm) rear (tan) 1
25l 202-5714 Squeegee blade 42 inch rear 1
26a 202-7503 Band, Squeegee, Rear, RH, 33 inch 1
26b 202-7605 Band Squeegee, 36 inch, Right Rear 1
26c 202-8015 Band, Squeegee, Rear, RH, 39 inch 1
26d 202-8094 Band, Squeegee, Rear, RH, 42 inch 1
27a 202-7504 Band, Squeegee, Rear, LH, 33 inch 1
27b 202-7606 Band Squeegee, 36 inch, Left Rear 1
27c 202-8016 Band, Squeegee, Rear, LH, 39 inch 1
27d 202-8095 Band, Squeegee, Rear, LH, 42 inch 1
28a 202-7505 Band, Squeegee, Front, 33 inch 1
28b 202-7607 Band Squeegee, 36 inch,Front 1
28c 202-8017 Band, Squeegee, Front, 39 inch 1
28d 202-8096 Band, Squeegee, Front, 42 inch 1
29a 202-7505 Band, Squeegee, Front, 33 inch 1
29b 202-7607 Band Squeegee, 36 inch,Front 1
29c 202-8017 Band, Squeegee, Front, 39 inch 1
29d 202-8096 Band, Squeegee, Front, 42 inch 1
30a 202-4208 Squeegee blade 33 inch linatex front 1
30b 202-7509 Squeegee Blade, Front, 33 inch Gum 1
30c 202-7510 Squeegee Blade, Front, 33 inch Urethane 1
30d 202-7614 Squeegee Blade,Front,linatex 1 (36 inch)
30e 202-3588 Squeegee blade gum rubber front 1 (36 inch)
30f 202-7615 Squeegee Blade,Front,Urethane 1 (36 inch)
30g 202-3586 Squeegee blade 39 inch linatex front 1
30h 202-8021 Squeegee Blade, Front, 39 inch linatex 1
30i 202-8022 Squeegee Blade, Front, 39 inch Urethane 1
30j 202-8101 Squeegee Blade,Front, 42 inch linatex 1
30k 202-4199 Squeegee blade 42 inch (1060 mm) front (tan) 1
30l 202-5715 Squeegee blade 42 inch front 1
N/S 202-7602 Spacer 6 (included with 0a-0d)
